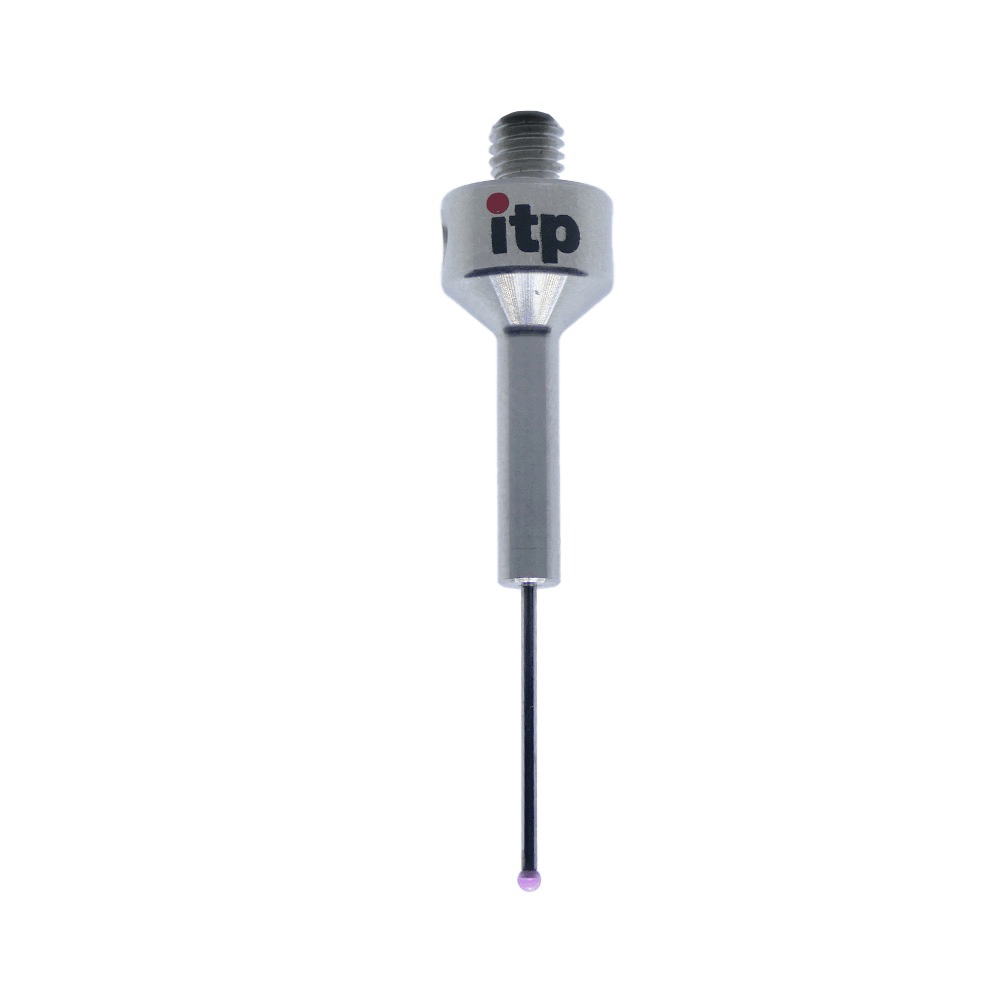

ITP Straight Styli - Type C - Ruby Ball - M5 Thread x 32mm Overall Length - FHM501511032

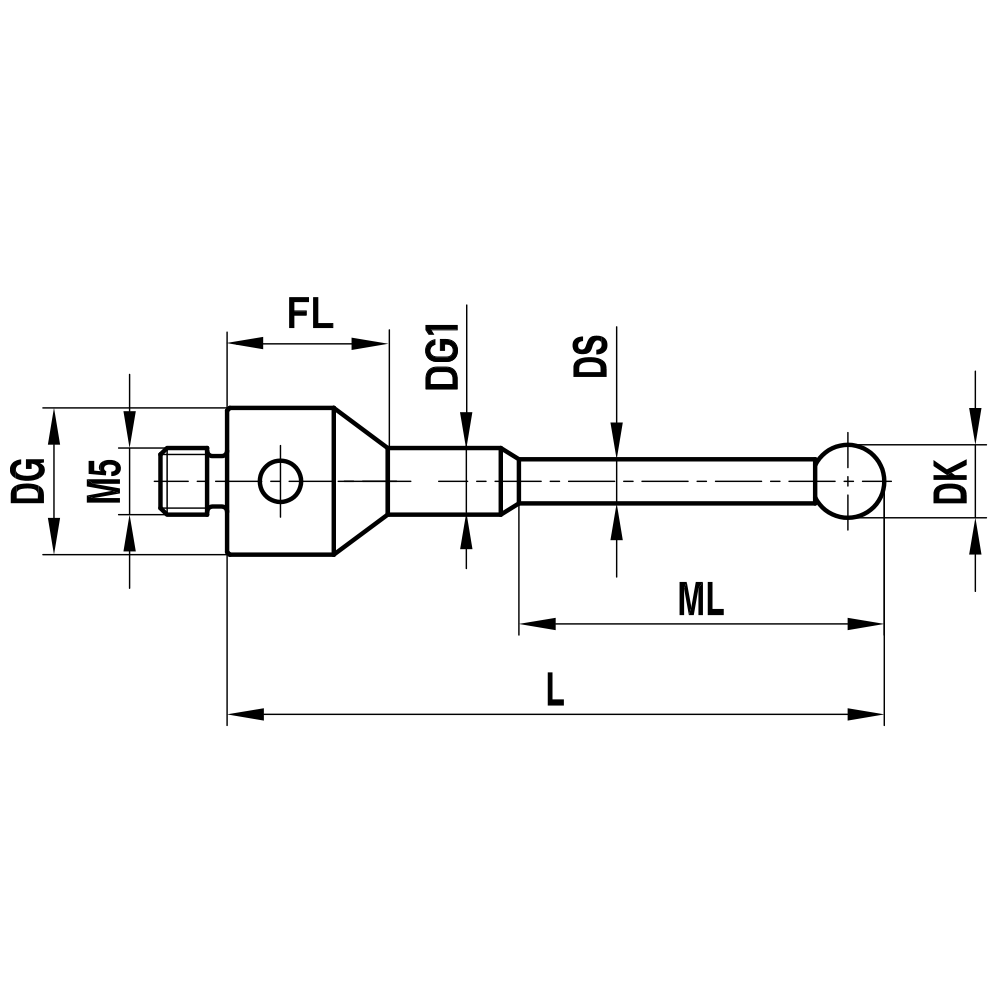

| Styli Type | Type C |
| Thread Size | M5 |
| Ball Diameter (DK) | 1.5 |
| Overall Length (L) | 32 |
| Shank Diameter (DG) | 11 |
| Measuring Length (ML) | 12 |
Learn more about Klarna
ITP Straight Styli Type C with Ruby Ball is a high-precision probing stylus designed for metrology, inspection, and CMM work. Built for reliability in tight fixtures, it combines a rigid tungsten carbide stem with accurately sized ruby contact balls for repeatable measurements.
- Design: Straight stylus with a stepped, hardened body for stable alignment during probing.
- Material and rigidity: Tungsten carbide stem delivers exceptional rigidity and wear resistance in demanding measurement tasks.
- Ruby contact ball: High-quality ruby ball available in Ø1.35 mm to Ø2.50 mm for precise contact and repeatable readings.
- Thread: M5 thread enables secure mounting with compatible probe interfaces.
- Overall length: 32 mm overall length fits compact measuring setups.
- Custom sizing: Other ruby ball diameters and configurations are available on request via configurator or by email.
With its rigid tungsten carbide stem and precisely ground ruby ball, this stylus provides stable, repeatable contact across measurement sessions. The compact 32 mm length and M5 mounting simplify integration into existing probing systems, helping reduce setup time and calibration drift. The ability to select ruby ball diameters from Ø1.35 mm to Ø2.50 mm lets you tailor the touch point to your part geometry and probing strategy, while custom sizing options ensure you can meet unique metrology requirements.
| Styli Type | Type C |
| Thread Size | M5 |
| Ball Diameter (DK) | 1.5 |
| Overall Length (L) | 32 |
| Shank Diameter (DG) | 11 |
| Measuring Length (ML) | 12 |
| Neck Diameter (DS) | 1 |
| Stem Material | carbide |
| Base Material | stainless steel |
| Prob Ball Material | ruby |
