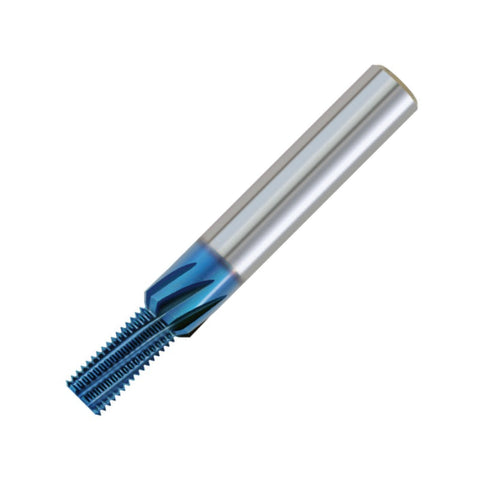

Carmex Thread Mills Solid Carbide - Fast Type - With Internal Coolant Bore - Metric - M5 x 0.8 - MT8

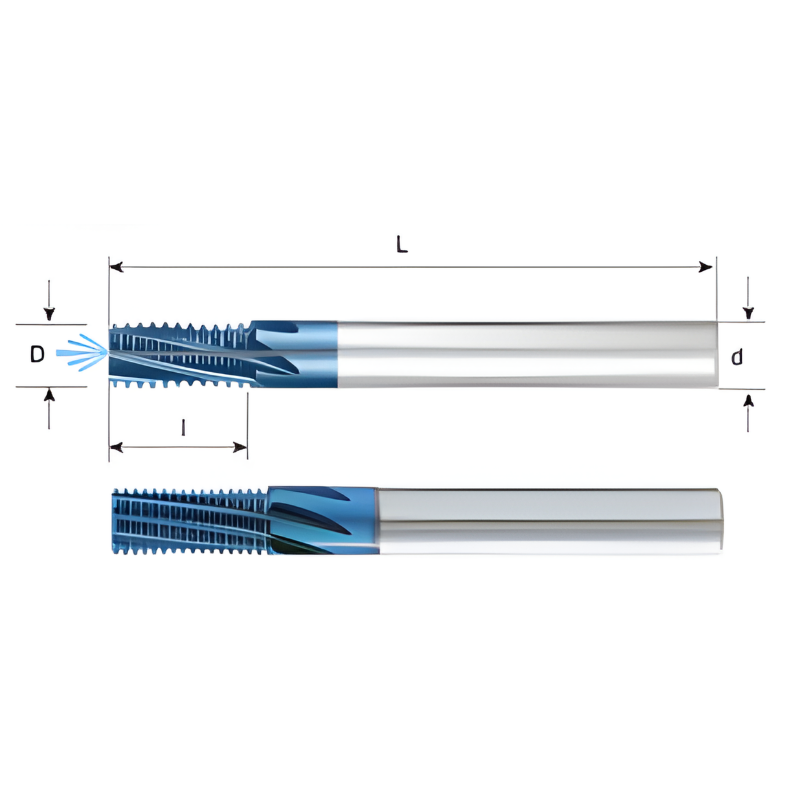

| Thread Form | Metric |
| Size | M5 |
| Pitch | 0.8 |
| Diameter (D) | 4 |
| Flute Length (l) | 9.2 |
| Shank Diameter (d) | 6 |
Learn more about Klarna
The Carmex FMT/Fast MT solid carbide thread mills are built for high‑speed, high‑precision metric threading. Designed for CNC milling centers, this MT8 shank tool delivers fast, accurate M5 x 0.8 threads with exceptional efficiency.
- Thread size & shank: M5 x 0.8 metric thread milling with MT8 shank for broad compatibility with standard milling machines.
- Flute count: 5–8 flutes designed to boost material removal and shorten cycle times during threading.
- Material: Solid carbide construction for rigidity, wear resistance, and long tool life in demanding applications.
- Internal coolant bore: Integrated coolant channel provides direct cooling and effective chip evacuation at the cutting edges.
- Fast MT geometry: Fast‑type thread milling design optimized for high‑speed threading while maintaining precise thread profiles.
The result is faster production without sacrificing thread accuracy. The combination of multiple flutes and an internal coolant bore helps maintain a clean cut, reduces heat buildup, and supports consistent thread quality across production runs. This makes the Carmex FMT/Fast MT ideal for shops that require reliable metric threading on tougher materials and tight tolerances, delivered with predictable tool life and minimal downtime.
| Thread Form | Metric |
| Size | M5 |
| Pitch | 0.8 |
| Diameter (D) | 4 |
| Flute Length (l) | 9.2 |
| Shank Diameter (d) | 6 |
| No of Flutes | 5 |
| Overall Length (L) | 58 |
| Thread Mill Style | Fast + Chamfer + Coolant |
| Internal or External | Internal |
| Coating | MT8 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Carmex Fast Solid Carbide Thread Mills - Metric - With Internal Coolant Bore (FMT)
View full collection →You are viewing FMT0604E90.8ISOMT8. Click any other SKU to view its full details.
| Product SKU | Size | Pitch | Flute Length | Reach | Shank Diameter | Overall Length | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| FMT06024D60.5ISOMT8 | M3 M3.5 | 0.5 | 6.3 | 6.3 | 6 | 58 | £133.66 | 5 days | |
| FMT06032E70.7ISOMT8 | M4 | 0.7 | 7.4 | 7.4 | 6 | 58 | £133.66 | 5 days | |
| FMT06033E80.5ISOMT8 | M4 M5 | 0.5 | 8.3 | 8.3 | 6 | 58 | £133.66 | 5 days | |
| FMT0604E90.8ISOMT8 Viewing | M5 | 0.8 | 9.2 | 9.2 | 6 | 58 | £133.66 | 5 days | |
| FMT08048F101.0ISOMT8 | M6 M8 | 1 | 10.5 | 10.5 | 8 | 64 | £187.04 | 5 days | |
| FMT0805F120.75ISOMT8 | M6 | 0.75 | 12.4 | 12.4 | 8 | 64 | £187.04 | 5 days | |
| FMT10064G141.25ISOMT8 | M8 M10 | 1.25 | 14.4 | 14.4 | 10 | 73 | £215.78 | 5 days | |
| FMT1008G171.5ISOMT8 | M10 M14 | 1.5 | 17.3 | 17.3 | 10 | 73 | £215.78 | 5 days | |
| FMT12087G201.0ISOMT8 | M10 M12 | 1 | 20.5 | 20.5 | 12 | 84 | £269.98 | 5 days | |
| FMT12095G201.75ISOMT8 | M12 | 1.75 | 20.1 | 20.1 | 12 | 84 | £269.98 | 5 days | |
| FMT1411G292.0ISOMT8 | M14 M16 | 2 | 29 | 29 | 14 | 83 | £300.30 | 5 days |
