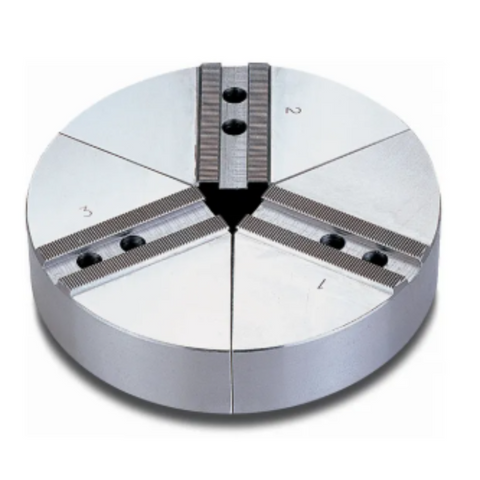

10" Aluminium Pie Jaws for Kitagawa Style Power Chucks - FW Series (Vortex)
| Chuck Size | 254/10 |
| Key Way | 16 |
| Height | 50 |
| Hole Centres | 30 |
Learn more about Klarna
Description
The Vortex 10" Aluminium Pie Jaws are a precision clamping solution designed specifically for Kitagawa-style power chucks in the FW Series. They cater to machinists needing a lightweight, distortion-minimizing grip for delicate or thin-walled components.
- Size: 10" diameter pie jaws crafted to fit Kitagawa-style FW Series power chucks for broad, stable contact.
- Material: High-quality aluminum for reduced weight and easy machining, balancing rigidity with practical versatility.
- Compatibility: Precisely engineered to seat securely on FW Series Kitagawa-style chucks, ensuring repeatable performance.
- Grip quality: Pie jaw geometry delivers an even, firm grip across the workpiece, helping to minimize clamping-induced distortion on fragile parts.
- Machinability: Easy to machine for custom configurations, enabling tailored surfaces or pockets to suit specific parts.
- Engineering: Precision-engineered for consistent performance in demanding machining tasks and long-term reliability.
By using these jaws, you gain reliable, distortion-minimizing clamping for delicate components, improved concentricity during milling or turning, and the flexibility to customize jaw surfaces for unique parts. Their lightweight aluminum construction makes setup quicker and reduces strain on the spindle, while the robust design supports a wide range of applications—from thin-walled housings to precision fixtures—without compromising accuracy.
Part Numbers
- Protool Part Number
- FW-A10050
- Brand
- Vortex
- Category
- Soft Jaw
Need cutting data? Call 01732 887334 or email sales@protool-ltd.co.uk.
Delivery
Free UK mainland delivery on orders over £50 ex VAT. In-stock items ordered before 4:30pm are dispatched the same working day. Full delivery information.
Returns
14-day returns on unused stock items in original packaging. Special-order and bespoke tooling is non-returnable. Read our returns policy.
Technical Support
Over 30 years of machining experience behind the counter. Call 01732 887334, Mon–Thurs 8:30–17:30, Fri 8:30–16:30.
Trade Accounts
Credit accounts, contract pricing and scheduled call-off orders available for trade customers. Apply for an account.
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Aluminium Pie Jaws for Kitagawa Style Power Chucks - FW Series (Vortex)
View full collection →You are viewing FW-A10050. Click any other SKU to view its full details.
| Product SKU | Chuck Size | Key Way | Height | Hole Centres | Price | Stock | Order |
|---|---|---|---|---|---|---|---|
| FW-A06040 | 169/6 | 12 | 40 | 20 | £162.00 | 4-6 weeks | |
| FW-A08040 | 210/8 | 14 | 40 | 25 | £185.00 | 4-6 weeks | |
| FW-A10050 Viewing | 254/10 | 16 | 50 | 30 | £243.00 | 4-6 weeks | |
| FW-A12050-18 | 304/12 | 18 | 50 | 30 | £282.16 | 4-6 weeks | |
| FW-A12050-21 | 304/12 | 21 | 50 | 30 | £282.16 | 4-6 weeks |
