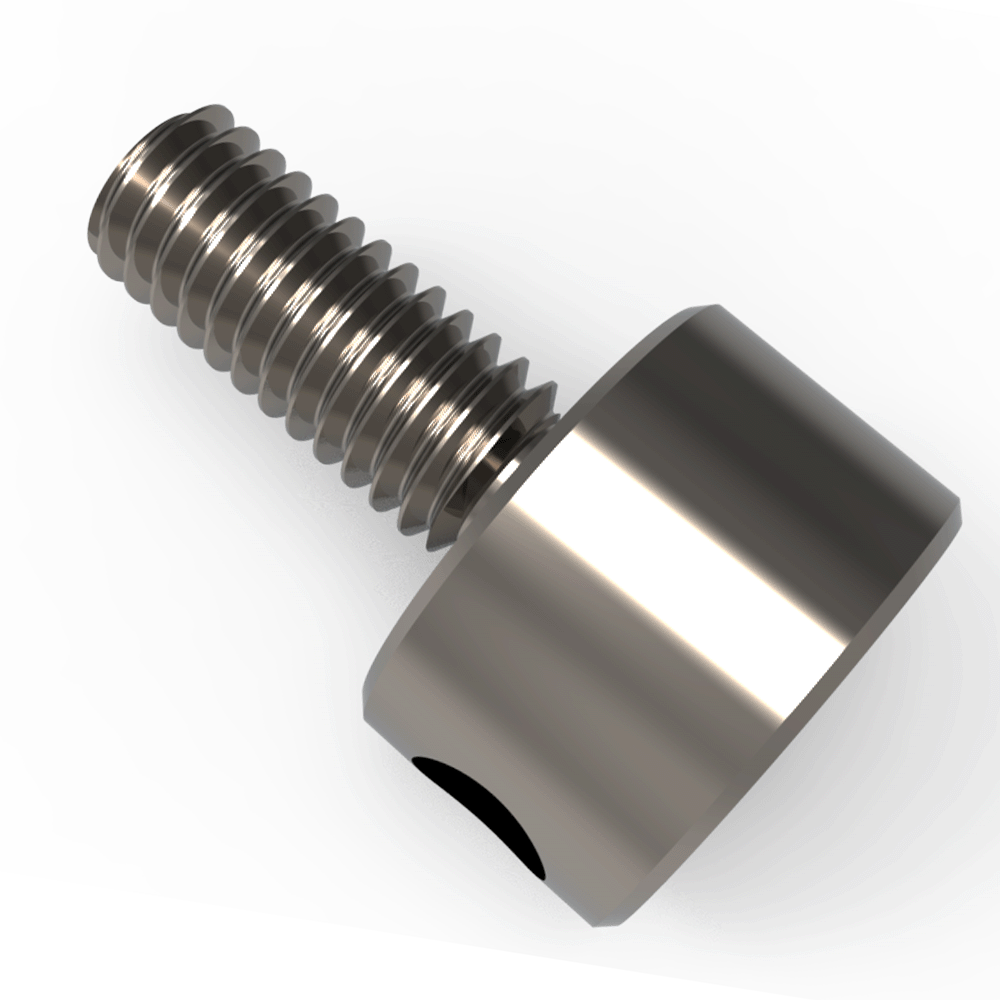

ITP Thread Measuring Gauges - stainless steel Base Material - M5 Thread Size x 16mm Overall Length - GWM400010016

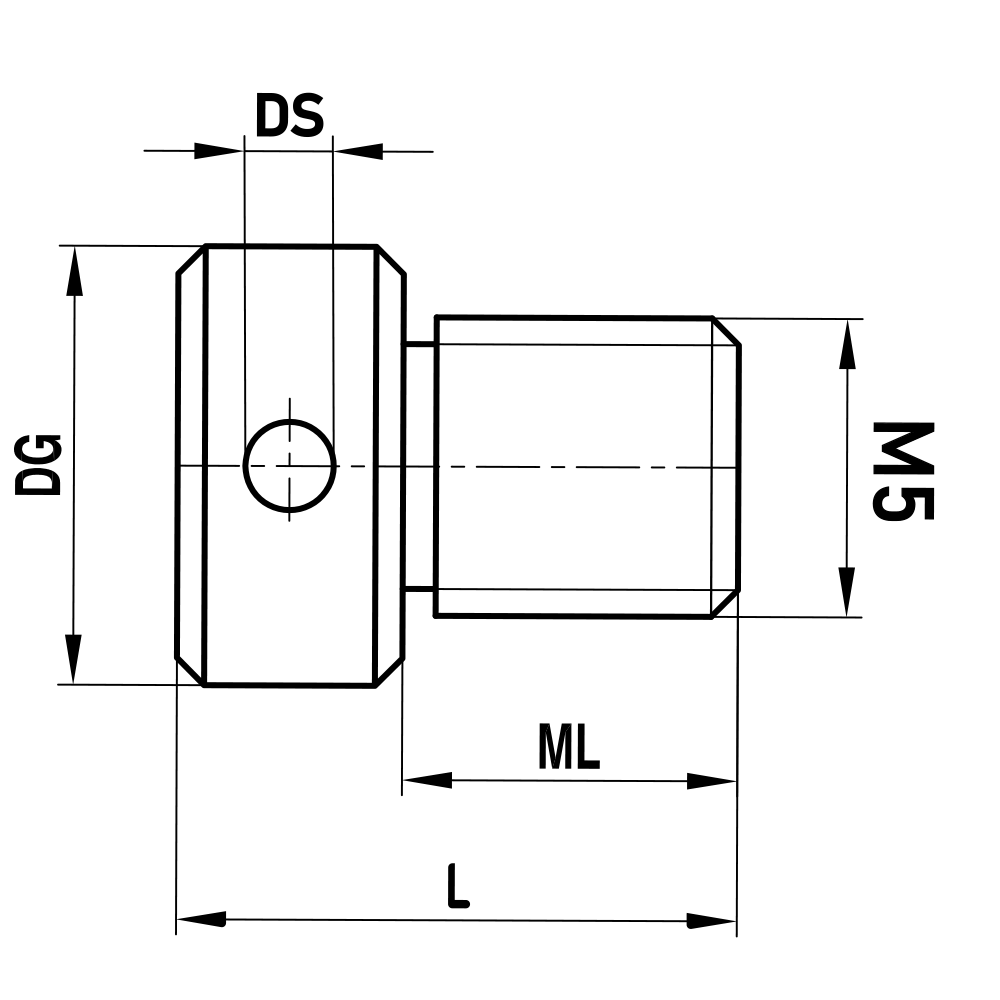

| Thread Size | M5 |
| Shank Diameter (DG) | 10 |
| Neck Diameter (DS) | 3.1 |
| Measuring Length (ML) | 10 |
Learn more about Klarna
Description
The ITP Thread Measuring Gauges are precision stainless steel tools designed for engineers and machinists who need quick, reliable indirect measurements of threaded holes and distances. Built around an M5 thread with a compact 16 mm overall length, this gauge delivers consistent results in tight workpieces and fixtures.
- Base Material: Stainless steel for durability and corrosion resistance in workshop environments.
- Thread Size: M5, enabling compatibility with common small-thread holes.
- Overall Length: 16 mm, compact profile suited for shallow pockets and limited access.
- Part Number: GWM400010016 for easy ordering and inventory control.
- Measurement Type: Indirect measurement of threaded holes and distances to support quick layout and inspection.
This gauge helps you verify hole centers, spacing, and alignment without destructive probing. It supports faster setup in machining fixtures, reduces guesswork during assembly, and enhances repeatability across parts. The stainless steel construction maintains dimensional stability under workshop conditions, while the compact form fits in crowded assemblies and jigs. Ideal for electronics housings, automotive components, and any project requiring precise thread-based references.
Part Numbers
- Protool Part Number
- ITP-GWM400010016
- Brand
- ITP
- Category
- Styli
