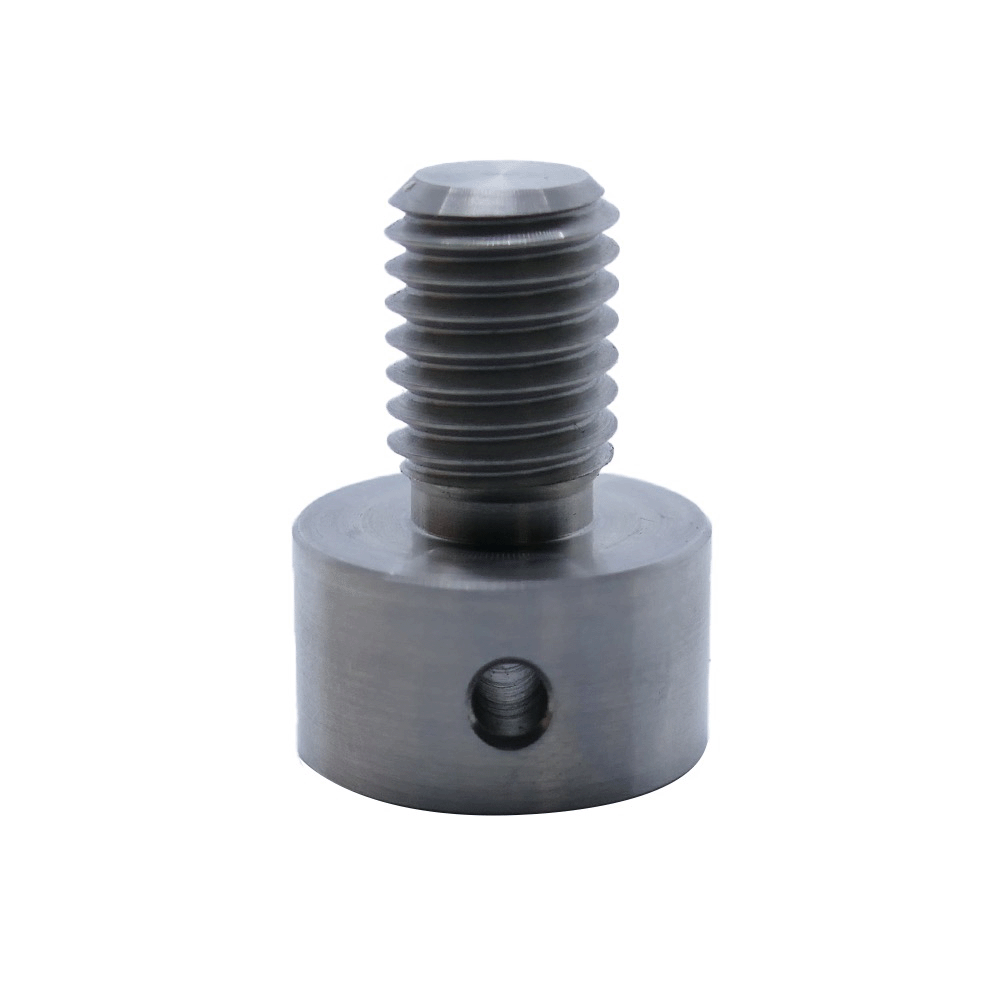

ITP Thread Measuring Gauges - stainless steel Base Material - M5 Thread Size x 16mm Overall Length - GWM500010016

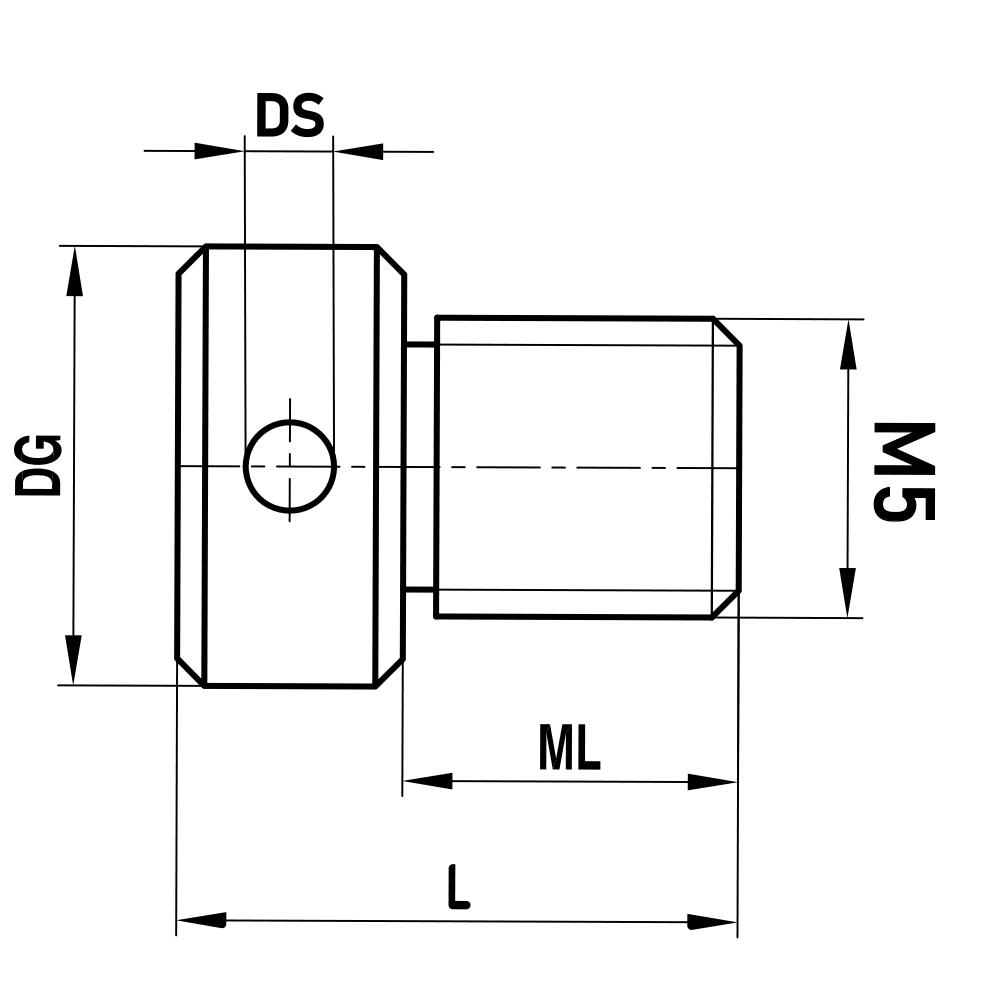

| Thread Size | M5 |
| Shank Diameter (DG) | 10 |
| Neck Diameter (DS) | 1.8 |
| Measuring Length (ML) | 10 |
Learn more about Klarna
Description
A compact, stainless steel thread measuring gauge designed for precise indirect measurement of threaded holes and distances. Ideal for machinists, toolmakers, and quality inspectors who need quick, reliable hole-location verification.
- Base material: Stainless steel for durability, corrosion resistance, and repeated use in demanding workshop environments.
- Thread size and length: M5 thread size with a 16 mm overall length for a compact, maneuverable gauge.
- Protruding thread: Projecting M5 threaded stud on a small, robust base for accurate contact and measurement references.
- Indirection measurement: Enables indirect assessment of hole centers and distances without threading or tapping the workpiece.
- Design and construction: Precision-machined, single-piece construction that maintains alignment and repeatability in tight spaces.
- Product code: GWM500010016 for easy inventory tracking and ordering.
This gauge helps you quickly confirm the position of threaded holes and critical distances during setup, inspection, and fixturing. Its sturdy stainless steel build stands up to routine use, while the compact form fits into crowded workstations and small fixtures. Use it to reduce guesswork, cut down rework, and improve consistency across assemblies in manufacturing, automotive, electronics, and general engineering workflows.
Part Numbers
- Protool Part Number
- ITP-GWM500010016
- Brand
- ITP
- Category
- Styli
