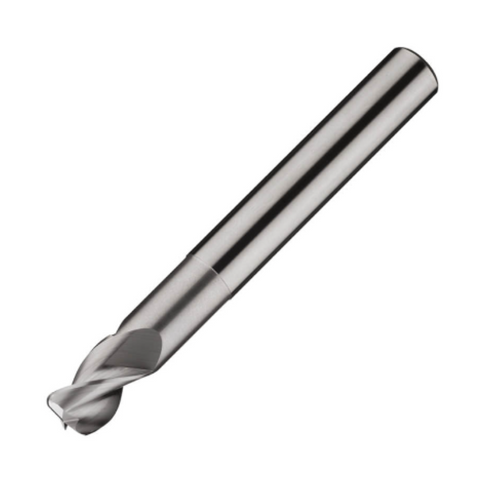

ITC Carbide End Mill Corner Radius 3091 - 3 Flute 38° Helix Radius With Facet Relief - Non-Ferrous - 5mm x R0.25
SKU:ITC-3091-5-0.25R
Introducing the Carbide End Mill Corner Radius 3091, meticulously engineered for superior machining in non-ferrous materials. This tool features a 3-flute design with a 38° helix, equipped with a c...
Read more ↓
Material Compatibility
N
Specification
View all specifications ↓
| Profile | Corner Radius |
| Cutter Diameter | 5 |
| No of Flutes | 3 |
| Shank Diameter | 6 |
| Overall Length | 75 |
| Flute Length | 7.5 |
£83.66
Prices shown ex. VAT
2 days estimated lead time
— subject to availability
View Other Sizes →
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Learn more about Klarna
Introducing the Carbide End Mill Corner Radius 3091, meticulously engineered for superior machining in non-ferrous materials. This tool features a 3-flute design with a 38° helix, equipped with a corner radius and facet relief. These features ensure efficient chip evacuation, excellent cutting stability, and a superior surface finish with precise corner radii. Ideal for professionals who prioritize precision, reliability, and high-performance in their machining operations.
| Profile | Corner Radius |
| Cutter Diameter | 5 |
| No of Flutes | 3 |
| Shank Diameter | 6 |
| Overall Length | 75 |
| Flute Length | 7.5 |
| Neck Diameter | 4.5 |
| Radius | 0.25 |
| Reach | 20 |
| Tapered | NO |
| Material | Non-Ferrous |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
★★★★★
Nice experience staff are very helpful and interested...
Staff are very helpful and interested in providing a good service making us the customer feel valued.
★★★★★
first place we look
honest about stock and prices are competitive.
★★★★★
Polite and helpful
Staff are very helpful and polite.Goods that were in stock were dispatched same day and back orders were quick in coming through .
★★★★★
Buying experience
Phone requests are handled quickly and without any fuss. The website is easy to use and straightforward to order from. It’s especially helpful that it shows real‑time availability, so we don’t need to call to confirm whether parts will arrive.
Full Range: ITC Carbide End Mills Corner Radius 3091 - 3 Flute 38° Helix Radius With Facet Relief - Non-Ferrous
View full collection →You are viewing ITC-3091-5-0.25R. Click any other SKU to view its full details.
| Product SKU | Cutter Diameter | Shank Diameter | Overall Length | Flute Length | Neck Diameter | Radius | Reach | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|---|
| ITC-3091-3-0.25R | 3 | 6 | 75 | 4.5 | 2.5 | 0.25 | 12 | £83.66 | 2 days | |
| ITC-3091-3-0.5R | 3 | 6 | 75 | 4.5 | 2.5 | 0.5 | 12 | £83.66 | 2 days | |
| ITC-3091-3-0.75R | 3 | 6 | 75 | 4.5 | 2.5 | 0.75 | 12 | £83.66 | 2 days | |
| ITC-3091-3-1.0R | 3 | 6 | 75 | 4.5 | 2.5 | 1 | 12 | £83.66 | 2 days | |
| ITC-3091-4-0.25R | 4 | 6 | 75 | 6 | 3.5 | 0.25 | 15 | £83.66 | 2 days | |
| ITC-3091-4-0.5R | 4 | 6 | 75 | 6 | 3.5 | 0.5 | 15 | £83.66 | 2 days | |
| ITC-3091-4-0.75R | 4 | 6 | 75 | 6 | 3.5 | 0.75 | 15 | £83.66 | 2 days | |
| ITC-3091-5-0.25R Viewing | 5 | 6 | 75 | 7.5 | 4.5 | 0.25 | 20 | £83.66 | 2 days | |
| ITC-3091-5-0.5R | 5 | 6 | 75 | 7.5 | 4.5 | 0.5 | 20 | £83.66 | 2 days | |
| ITC-3091-5-0.75R | 5 | 6 | 75 | 7.5 | 4.5 | 0.75 | 20 | £83.66 | 2 days | |
| ITC-3091-5-1.0R | 5 | 6 | 75 | 7.5 | 4.5 | 1 | 20 | £83.66 | 2 days | |
| ITC-3091-6-0.25R | 6 | 6 | 100 | 9 | 5 | 0.25 | 20 | £98.37 | 2 days | |
| ITC-3091-6-0.5R | 6 | 6 | 100 | 9 | 5 | 0.5 | 20 | £98.37 | 2 days | |
| ITC-3091-6-0.75R | 6 | 6 | 100 | 9 | 5 | 0.75 | 20 | £98.37 | 2 days | |
| ITC-3091-6-1.0R | 6 | 6 | 100 | 9 | 5 | 1 | 20 | £98.37 | 2 days | |
| ITC-3091-6-1.25R | 6 | 6 | 100 | 9 | 5 | 1.25 | 20 | £98.37 | 2 days | |
| ITC-3091-6-1.5R | 6 | 6 | 100 | 9 | 5 | 1.5 | 20 | £98.37 | 2 days | |
| ITC-3091-6-2.0R | 6 | 6 | 100 | 9 | 5 | 2 | 20 | £98.37 | 2 days | |
| ITC-3091-8-0.25R | 8 | 8 | 100 | 12 | 7 | 0.25 | 25 | £101.58 | 2 days | |
| ITC-3091-8-0.5R | 8 | 8 | 100 | 12 | 7 | 0.5 | 25 | £101.58 | 2 days | |
| ITC-3091-8-0.75R | 8 | 8 | 100 | 12 | 7 | 0.75 | 25 | £101.58 | 2 days | |
| ITC-3091-8-1.0R | 8 | 8 | 100 | 12 | 7 | 1 | 25 | £101.58 | 2 days | |
| ITC-3091-8-1.25R | 8 | 8 | 100 | 12 | 7 | 1.25 | 25 | £110.35 | 2 days | |
| ITC-3091-8-1.5R | 8 | 8 | 100 | 12 | 7 | 1.5 | 25 | £110.35 | 2 days | |
| ITC-3091-8-2.0R | 8 | 8 | 100 | 12 | 7 | 2 | 25 | £110.35 | 2 days | |
| ITC-3091-10-0.25R | 10 | 10 | 100 | 15 | 9 | 0.25 | 32 | £122.18 | 2 days | |
| ITC-3091-10-0.5R | 10 | 10 | 100 | 15 | 9 | 0.5 | 32 | £122.18 | 2 days | |
| ITC-3091-10-0.75R | 10 | 10 | 100 | 15 | 9 | 0.75 | 32 | £122.18 | 2 days | |
| ITC-3091-10-1.0R | 10 | 10 | 100 | 15 | 9 | 1 | 32 | £122.18 | 2 days | |
| ITC-3091-10-1.25R | 10 | 10 | 100 | 15 | 9 | 1.25 | 32 | £130.96 | 2 days | |
| ITC-3091-10-1.5R | 10 | 10 | 100 | 15 | 9 | 1.5 | 32 | £130.96 | 2 days | |
| ITC-3091-10-2.0R | 10 | 10 | 100 | 15 | 9 | 2 | 32 | £130.96 | 2 days | |
| ITC-3091-10-2.5R | 10 | 10 | 100 | 15 | 9 | 2.5 | 32 | £130.96 | 2 days | |
| ITC-3091-10-3.0R | 10 | 10 | 100 | 15 | 9 | 3 | 32 | £130.96 | 2 days | |
| ITC-3091-12-0.25R | 12 | 12 | 100 | 18 | 11 | 0.25 | 40 | £126.22 | 2 days | |
| ITC-3091-12-0.5R | 12 | 12 | 100 | 18 | 11 | 0.5 | 40 | £126.22 | 2 days | |
| ITC-3091-12-0.75R | 12 | 12 | 100 | 18 | 11 | 0.75 | 40 | £126.22 | 2 days | |
| ITC-3091-12-1.0R | 12 | 12 | 100 | 18 | 11 | 1 | 40 | £126.22 | 2 days | |
| ITC-3091-12-1.25R | 12 | 12 | 100 | 18 | 11 | 1.25 | 40 | £134.98 | 2 days | |
| ITC-3091-12-1.5R | 12 | 12 | 100 | 18 | 11 | 1.5 | 40 | £134.98 | 2 days | |
| ITC-3091-12-2.0R | 12 | 12 | 100 | 18 | 11 | 2 | 40 | £134.98 | 2 days | |
| ITC-3091-12-2.5R | 12 | 12 | 100 | 18 | 11 | 2.5 | 40 | £134.98 | 2 days | |
| ITC-3091-12-3.0R | 12 | 12 | 100 | 18 | 11 | 3 | 40 | £134.98 | 2 days | |
| ITC-3091-16-0.25R | 16 | 16 | 150 | 24 | 14 | 0.25 | 50 | £177.84 | 2 days | |
| ITC-3091-16-0.5R | 16 | 16 | 150 | 24 | 14 | 0.5 | 50 | £177.84 | 2 days | |
| ITC-3091-16-0.75R | 16 | 16 | 150 | 24 | 14 | 0.75 | 50 | £177.84 | 2 days | |
| ITC-3091-16-1.0R | 16 | 16 | 150 | 24 | 14 | 1 | 50 | £177.84 | 2 days | |
| ITC-3091-16-1.25R | 16 | 16 | 150 | 24 | 14 | 1.25 | 50 | £218.75 | 2 days | |
| ITC-3091-16-1.5R | 16 | 16 | 150 | 24 | 14 | 1.5 | 50 | £218.75 | 2 days | |
| ITC-3091-16-2.0R | 16 | 16 | 150 | 24 | 14 | 2 | 50 | £218.75 | 2 days | |
| ITC-3091-16-2.5R | 16 | 16 | 150 | 24 | 14 | 2.5 | 50 | £218.75 | 2 days | |
| ITC-3091-16-3.0R | 16 | 16 | 150 | 24 | 14 | 3 | 50 | £231.01 | 2 days | |
| ITC-3091-16-4.0R | 16 | 16 | 150 | 24 | 14 | 4 | 50 | £231.01 | 2 days | |
| ITC-3091-16-5.0R | 16 | 16 | 150 | 24 | 14 | 5 | 50 | £231.01 | 2 days | |
| ITC-3091-20-0.25R | 20 | 20 | 150 | 30 | 18 | 0.25 | 65 | £283.70 | 2 days | |
| ITC-3091-20-0.5R | 20 | 20 | 150 | 30 | 18 | 0.5 | 65 | £283.70 | 2 days | |
| ITC-3091-20-0.75R | 20 | 20 | 150 | 30 | 18 | 0.75 | 65 | £283.70 | 2 days | |
| ITC-3091-20-1.0R | 20 | 20 | 150 | 30 | 18 | 1 | 65 | £283.70 | 2 days | |
| ITC-3091-20-1.25R | 20 | 20 | 150 | 30 | 18 | 1.25 | 65 | £291.49 | 2 days | |
| ITC-3091-20-1.5R | 20 | 20 | 150 | 30 | 18 | 1.5 | 65 | £291.49 | 2 days | |
| ITC-3091-20-2.0R | 20 | 20 | 150 | 30 | 18 | 2 | 65 | £291.49 | 2 days | |
| ITC-3091-20-2.5R | 20 | 20 | 150 | 30 | 18 | 2.5 | 65 | £291.49 | 2 days | |
| ITC-3091-20-3.0R | 20 | 20 | 150 | 30 | 18 | 3 | 65 | £303.68 | 2 days | |
| ITC-3091-20-4.0R | 20 | 20 | 150 | 30 | 18 | 4 | 65 | £303.68 | 2 days | |
| ITC-3091-20-5.0R | 20 | 20 | 150 | 30 | 18 | 5 | 65 | £303.68 | 2 days |
