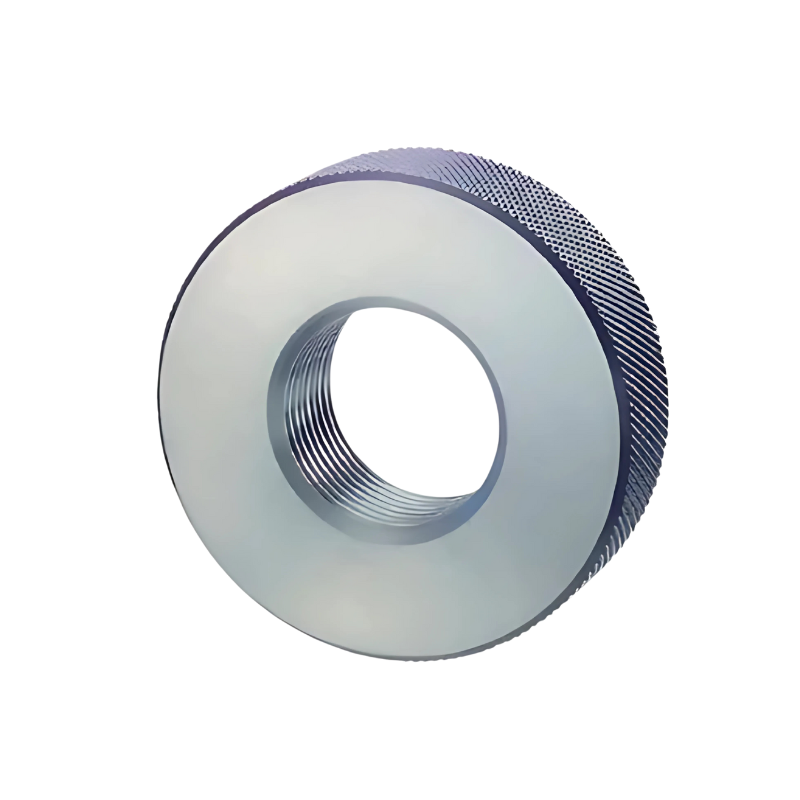

JBO Thread Ring Gauge (GO) - Trapezoidal - Right Hand - 7e - Tr. 22 x 5
| Thread Form | Trapez |
| Size | Tr. 22 |
| Pitch | 5 |
| Gauge Type | Ring Gauge (GO) |
| Thread Direction | Right Hand |
| Tolerance | 7e |
Learn more about Klarna
The JBO Thread Ring Gauge (GO) - Trapezoidal - Right Hand - 7e - Tr. 22 x 5 is a precision inspection tool designed to quickly and accurately verify external trapezoidal thread diameters. It’s ideal for machine shops, contract manufacturers, quality control labs, and maintenance teams that need a reliable go/no-go check to confirm components meet size requirements and standards.
Crafted from hardened steel for outstanding wear resistance, this GO gauge delivers long service life in busy production environments. Its trapezoidal, right-hand geometry aligns with industry standards, helping inspectors identify compliant parts at a glance and streamline acceptance testing.
- Precise Go-Thread Verification: Reliably determines whether external trapezoidal threads meet the Go gauge limits, enabling fast, consistent pass/fail decisions during quality checks and assembly.
- Durable Hardened Steel Construction: Built to withstand daily shop-floor use, resisting wear and corrosion for longer tool life and reduced replacement costs.
- Easy, Quick Identification: Clear, straightforward conformance cues allow inspectors and machinists to verify threads with minimal effort, reducing inspection time and downtime.
Used across machining, maintenance, and assembly workflows, this gauge helps you maintain tight tolerances with confidence. By delivering rapid, reliable results, it supports smoother production cycles, fewer rework iterations, and improved overall quality in your threaded component inspections.
| Thread Form | Trapez |
| Size | Tr. 22 |
| Pitch | 5 |
| Gauge Type | Ring Gauge (GO) |
| Thread Direction | Right Hand |
| Tolerance | 7e |
