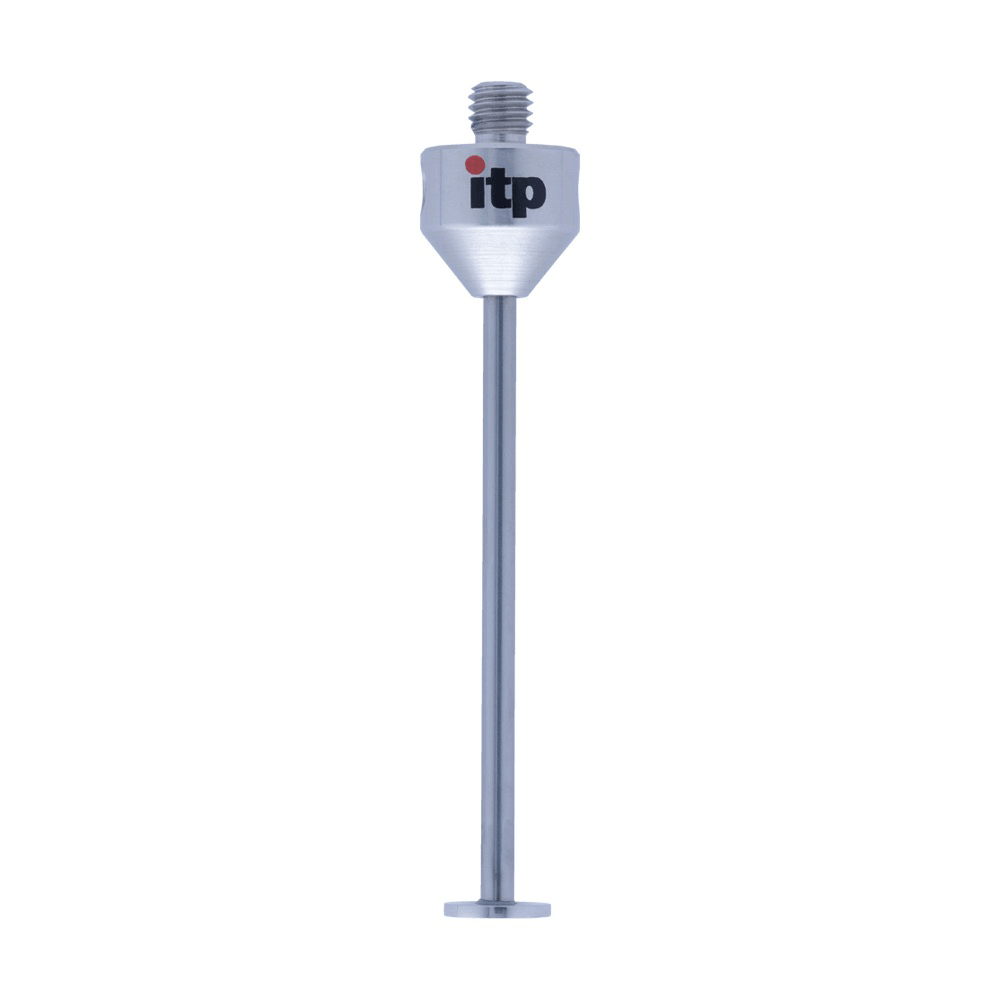

ITP Disc Styli stainless steel Prob Ball Material - M5 Thread x 8mm Ball Diameter - Type O - KHM508012056

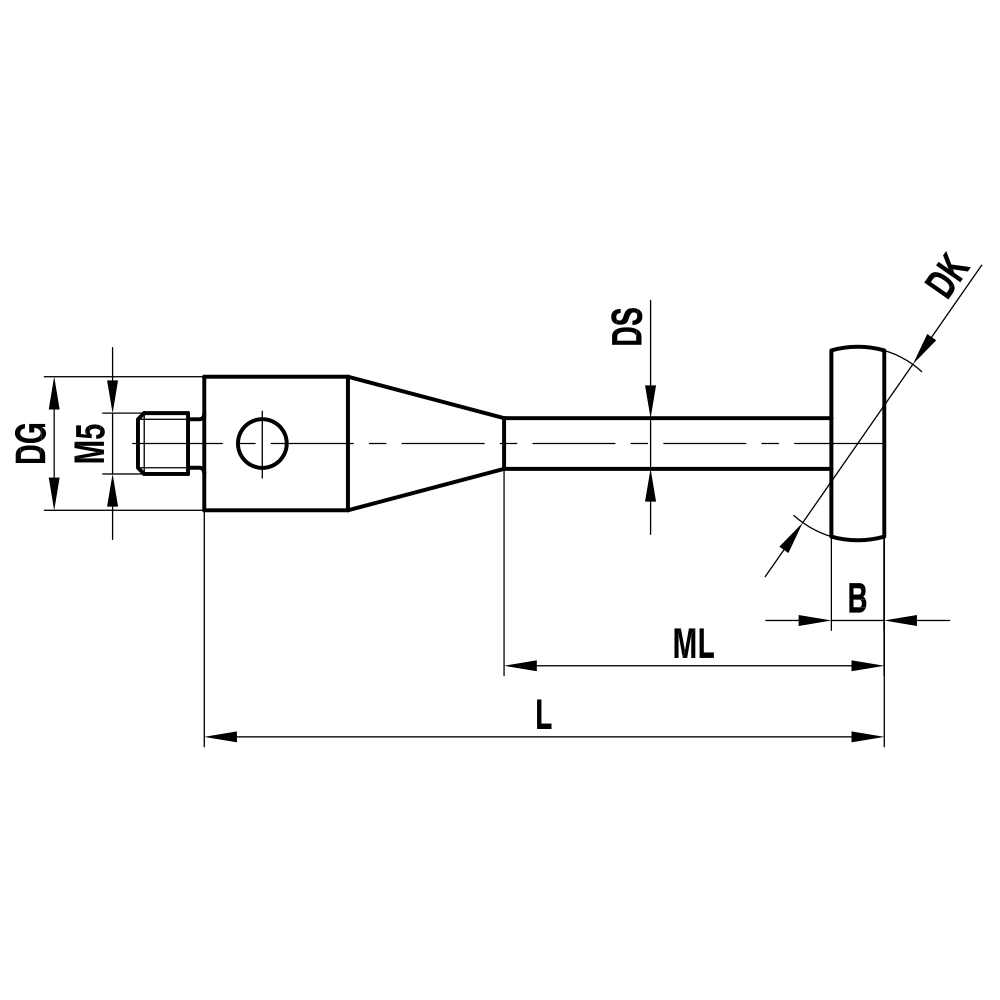

| Thread Size | M5 |
| Ball Diameter (DK) | 8 |
| Overall Length (L) | 57 |
| Styli Type | Type O |
| Shank Diameter (DG) | 12 |
| Neck Diameter (DS) | 2.5 |
Learn more about Klarna
The ITP Disc Styli stainless steel Prob Ball is a precision probing accessory designed for measuring large inside diameters and intricate undercuts. This Type O disc ball delivers reliable contact geometry in constrained features, making it a dependable choice for metrology setups.
- Material: Stainless steel construction for durability and corrosion resistance in shop environments.
- Ball Diameter: 8 mm probing ball to reach and measure large internal diameters and undercuts with stable contact.
- Thread: M5 mounting thread for secure, standard-compatible attachment to probing heads.
- Disc Type: Spherical disc segment—designed to access recessed features with precise geometry.
- Type / Code: Type O, part number KHM508012056, indicating the specific disc-stylus configuration.
- Applications: Ideal for measuring large internal diameters and integrated undercuts where traditional disks are insufficient.
- Probing Direction Note: Normal disks are unsuitable for probing in the Z direction unless discs with radius end rollers are used.
This disc stylus addresses real measurement challenges: it provides a compact, robust means to contact curved internal features and undercuts without compromising accuracy. The 8 mm ball paired with a stainless steel shaft offers repeatable results, easy cleaning, and long service life in demanding manufacturing and inspection environments. When planning measurements, keep in mind the Z-direction note to ensure your setup includes the appropriate end-roller configuration if vertical probing is required.
| Thread Size | M5 |
| Ball Diameter (DK) | 8 |
| Overall Length (L) | 57 |
| Styli Type | Type O |
| Shank Diameter (DG) | 12 |
| Neck Diameter (DS) | 2.5 |
| Stem Material | carbide |
| Base Material | stainless steel |
| Prob Ball Material | stainless steel |
| Measuring Length (ML) | 46 |
| B | 1 |
