ITP Disc Styli stainless steel Prob Ball Material - M2 Thread x 6mm Ball Diameter - Type O - KIM206003010/0,8

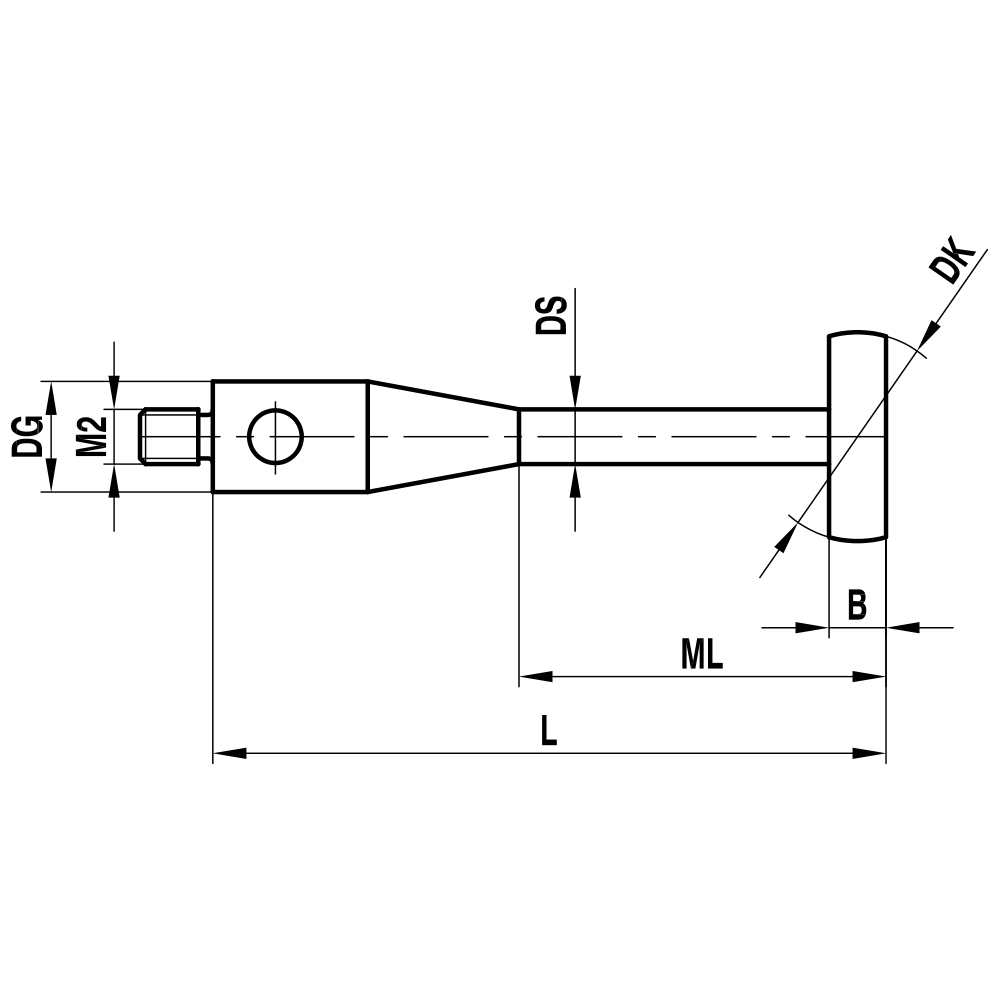

| Thread Size | M2 |
| Ball Diameter (DK) | 6 |
| Overall Length (L) | 10 |
| Styli Type | Type O |
| Shank Diameter (DG) | 3 |
| Neck Diameter (DS) | 2 |
Learn more about Klarna
The ITP Disc Styli stainless steel Prob Ball is a precision spherical probe element designed for advanced internal-diameter measurements and profiling of undercuts. Built for metrology professionals, it delivers reliable contact data in challenging bore geometries.
- Material: Stainless steel construction for durability, wear resistance, and corrosion protection.
- Ball Diameter: 6 mm spherical probing ball for accurate contact with internal features.
- Thread: M2 male thread for secure, straightforward mounting on compatible stylus holders.
- End Type: Type O ball end (probing ball) optimized for consistent measurement contact.
- Construction: Compact disc-styled stem with stable support features to enhance repeatability during measurements.
- Applications: Specifically suited for measuring large inside diameters and integrated undercuts; note that normal disks are unsuitable for probing in the Z direction unless discs with radius end rollers are used.
- Part Number: KIM206003010/0,8 for precise catalog reference.
This disc-style probe element minimizes setup time with a reliable M2-thread connection and a robust 6 mm ball, enabling precise data capture in bores and internal features. Its stainless steel body ensures long-term performance in demanding inspection environments, while the Type O end provides predictable contact geometry for repeatable measurements. Ideal for CMM routines that require accurate internal profiling and reduced rework, use this disc stylus as a dependable building block in your metrology toolkit.
| Thread Size | M2 |
| Ball Diameter (DK) | 6 |
| Overall Length (L) | 10 |
| Styli Type | Type O |
| Shank Diameter (DG) | 3 |
| Neck Diameter (DS) | 2 |
| Stem Material | stainless steel |
| Base Material | stainless steel |
| Prob Ball Material | stainless steel |
| Measuring Length (ML) | 6 |
| B | 0.8 |
