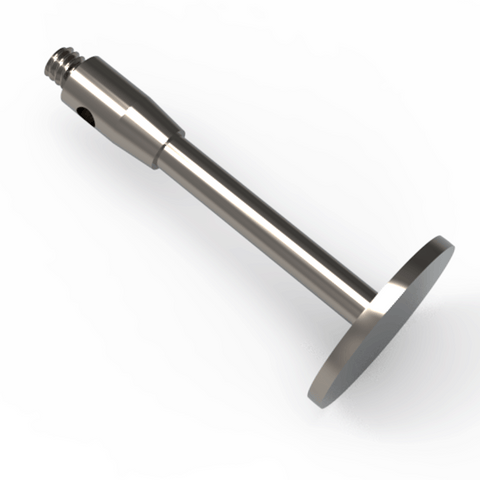

ITP Disc Styli stainless steel Prob Ball Material - M2 Thread x 10mm Ball Diameter - Type O - KIM210003020/0,8

SKU:ITP-KIM210003020/0,8

The ITP Disc Stylus is a stainless steel spherical disc probe (Type O) designed for precision measurement of large internal diameters and undercuts. It’s ideal for metrology labs and machinists wh... Read more ↓
Thread SizeM2
Ball Diameter (DK)10
Overall Length (L)20
Styli TypeType O
Shank Diameter (DG)3
Neck Diameter (DS)2
View all specifications ↓
£138.26
Prices shown ex. VAT
5 days estimated lead time — subject to availability
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Klarna
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Speak to our team
01732 887334
Mon – Thurs 8:30 – 17:30 · Fri 8:30 – 16:30

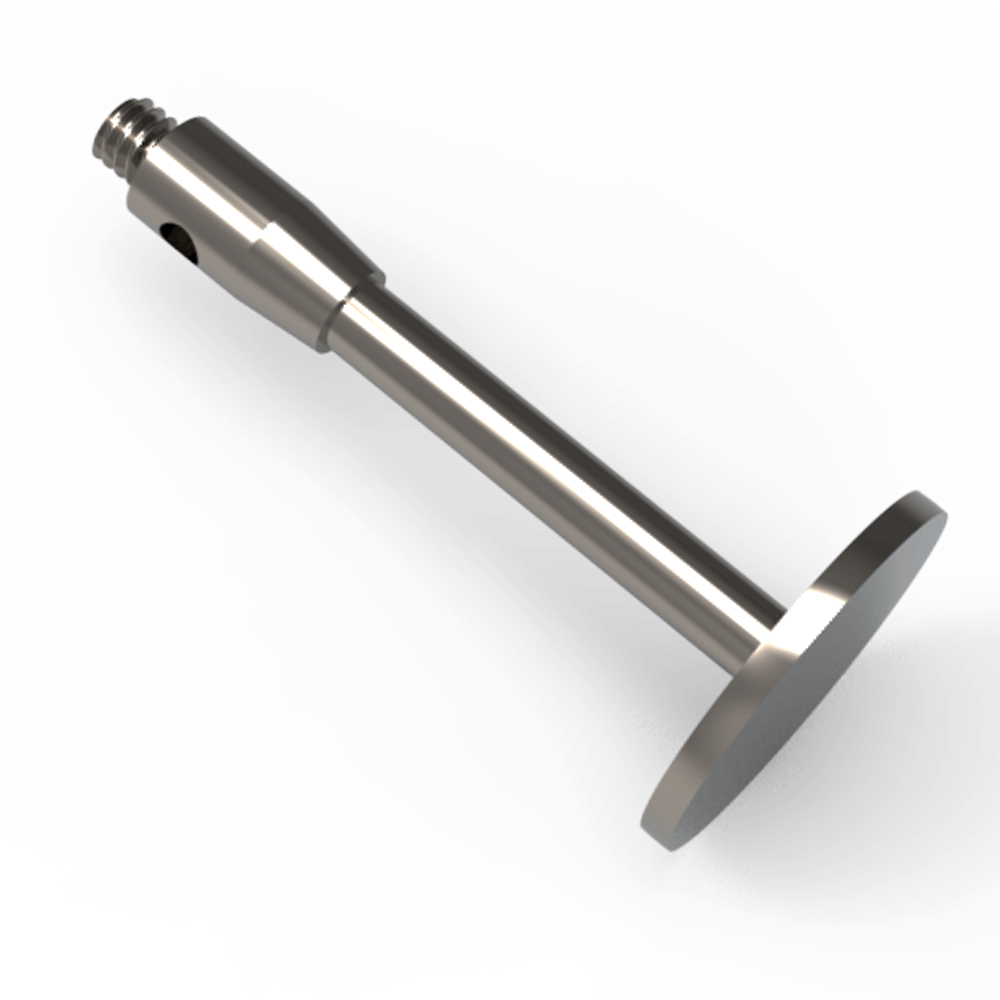

The ITP Disc Stylus is a stainless steel spherical disc probe (Type O) designed for precision measurement of large internal diameters and undercuts. It’s ideal for metrology labs and machinists who demand reliable, repeatable contact on challenging bore geometries.

  • Material: Stainless steel construction for durability and corrosion resistance in shop environments.
  • Ball Diameter: 10 mm spherical tip for stable contact on larger bore features.
  • Thread: M2 external thread for secure mounting to compatible probes and fixtures.
  • Disc Type: Type O spherical disc stylus optimized to access large internal diameters and integrated undercuts.
  • Applications: Ideal for measuring inside diameters and undercuts where standard disks struggle to reach.
  • Model / Code: KIM210003020/0,8
  • Z-axis Note: Normal disks are unsuitable for probing in the Z direction (except discs with radius end rollers).

This disc stylus enhances measurement capability by providing a robust, repeatable contact point that fits securely on your probe system. The 10 mm ball diameter and stainless steel build deliver reliable performance across repetitive checks, while the Type O disc design specifically enables access to challenging internal geometries without compromising stability.

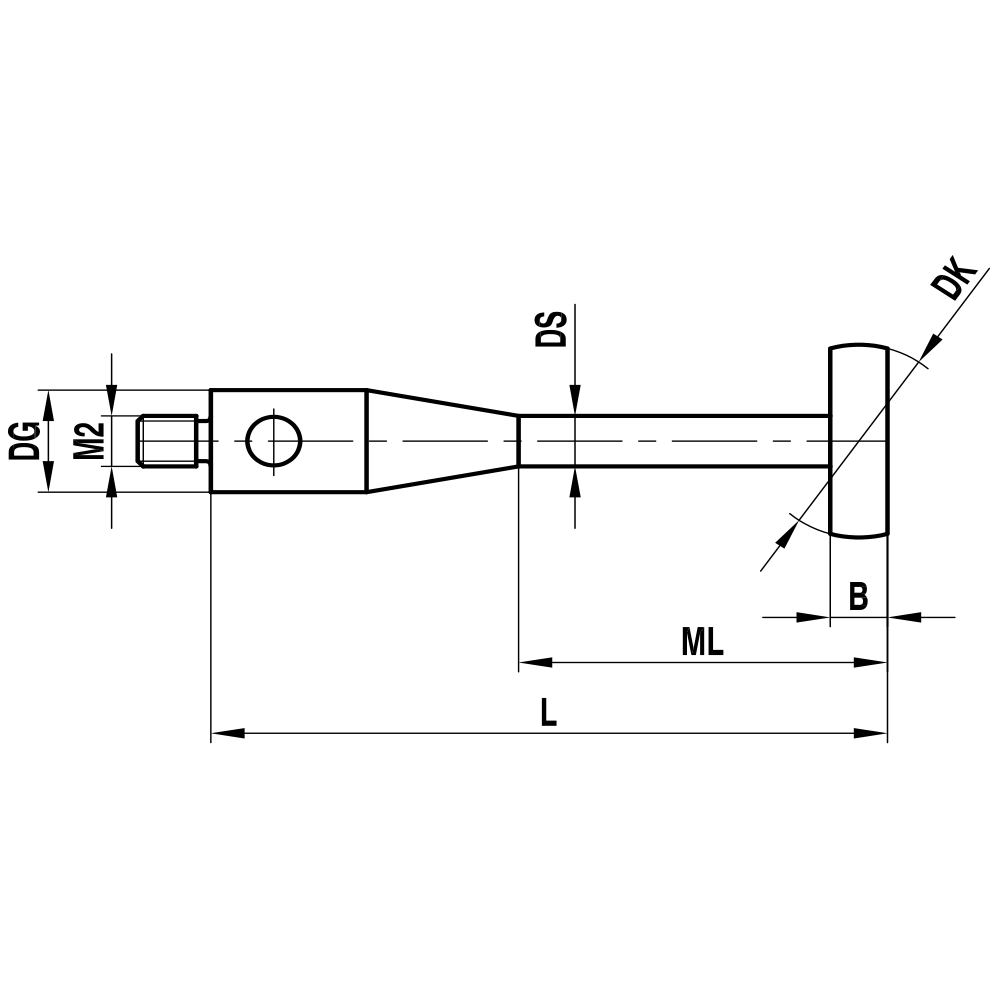

Thread Size M2
Ball Diameter (DK) 10
Overall Length (L) 20
Styli Type Type O
Shank Diameter (DG) 3
Neck Diameter (DS) 2
Stem Material stainless steel
Base Material stainless steel
Prob Ball Material stainless steel
Measuring Length (ML) 14
B 0.8
