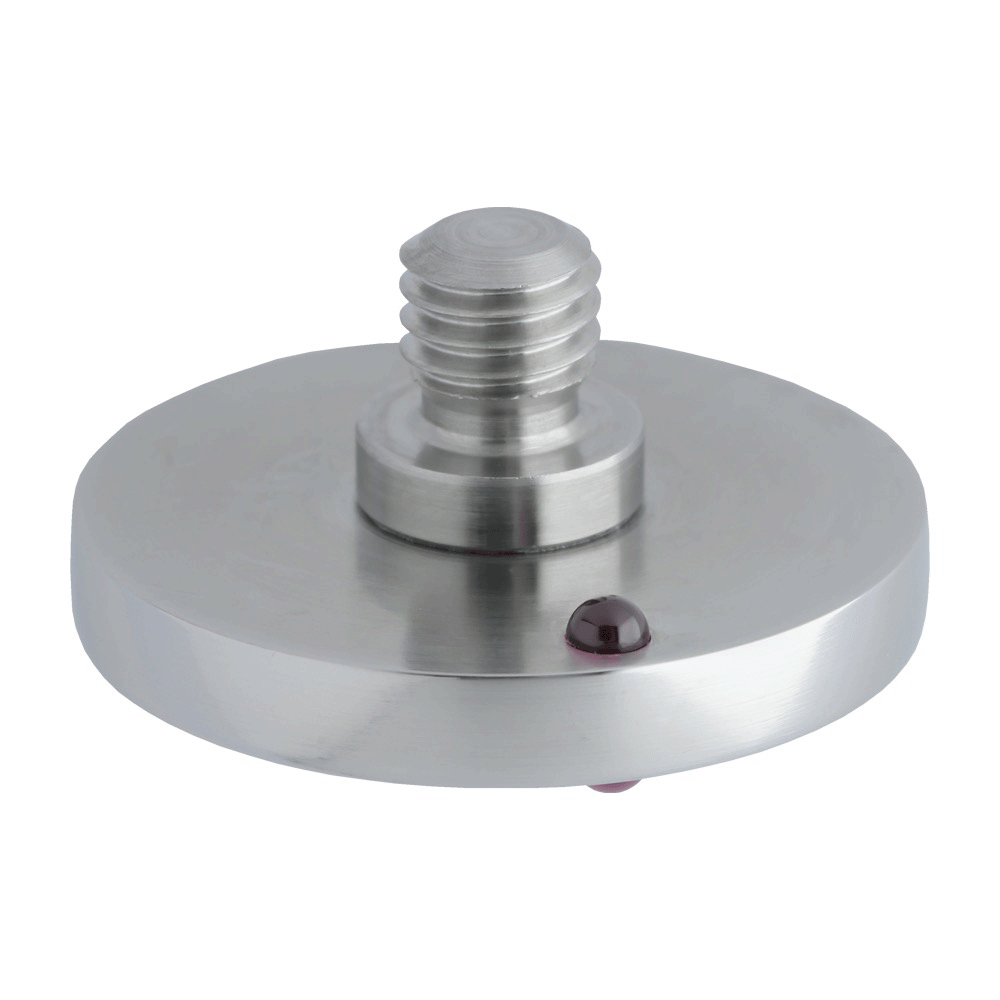

ITP Disc Styli stainless steel / ruby Prob Ball Material - M5 Thread x 21mm Ball Diameter - Type M - KIM503021M50

ITP-KIM503021M50

Availability: 5 days Estimated lead time, subject to availability

Klarna Payment
Pay with Klarna – split your purchase into 3 interest-free instalments.
No extra cost if paid on time. 18+ only.
Learn more about Klarna

Spherical disc are sections of a precision balls, available in different thicknesses and diameters. Such probes come in use where it is necessary to realise the measurement of large inside diame... Read more

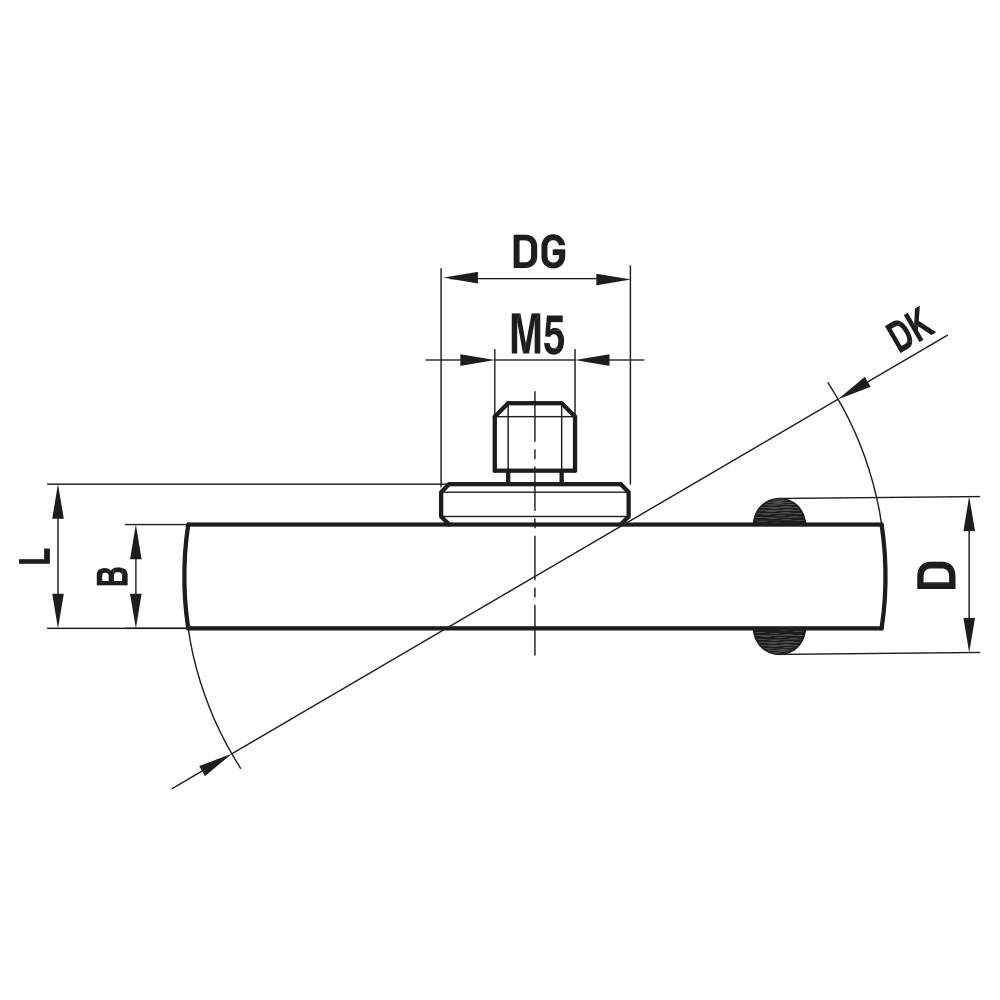

Specification Value
Thread Size M5
Ball Diameter (DK) 21
Overall Length (L) 5
Styli Type Type M
Shank Diameter (DG) 7
Base Material stainless steel
Prob Ball Material stainless steel / ruby
B 3
D 5

Need Assistance?

Speak to our Expert Team

Call Sales

01732 887334

Mon - Fri | 9am - 5pm

Email Us

info@protool-ltd.co.uk

Our team is ready to assist

Spherical disc are sections of a precision balls, available in different thicknesses and diameters. Such probes come in use where it is necessary to realise the measurement of large inside diameters or the integrated undercuts. Important note: Normal disks are unsuitable for probing in the Z direction (except discs with radius end rollers).
