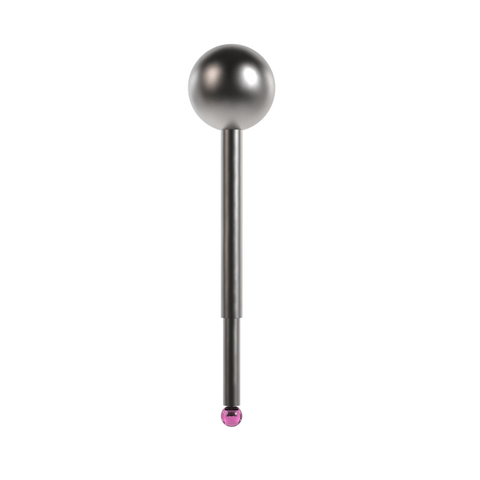

ITP Straight Styli - Other - Ruby Ball - M5 Thread x 17.5mm Overall Length - KKM501010017

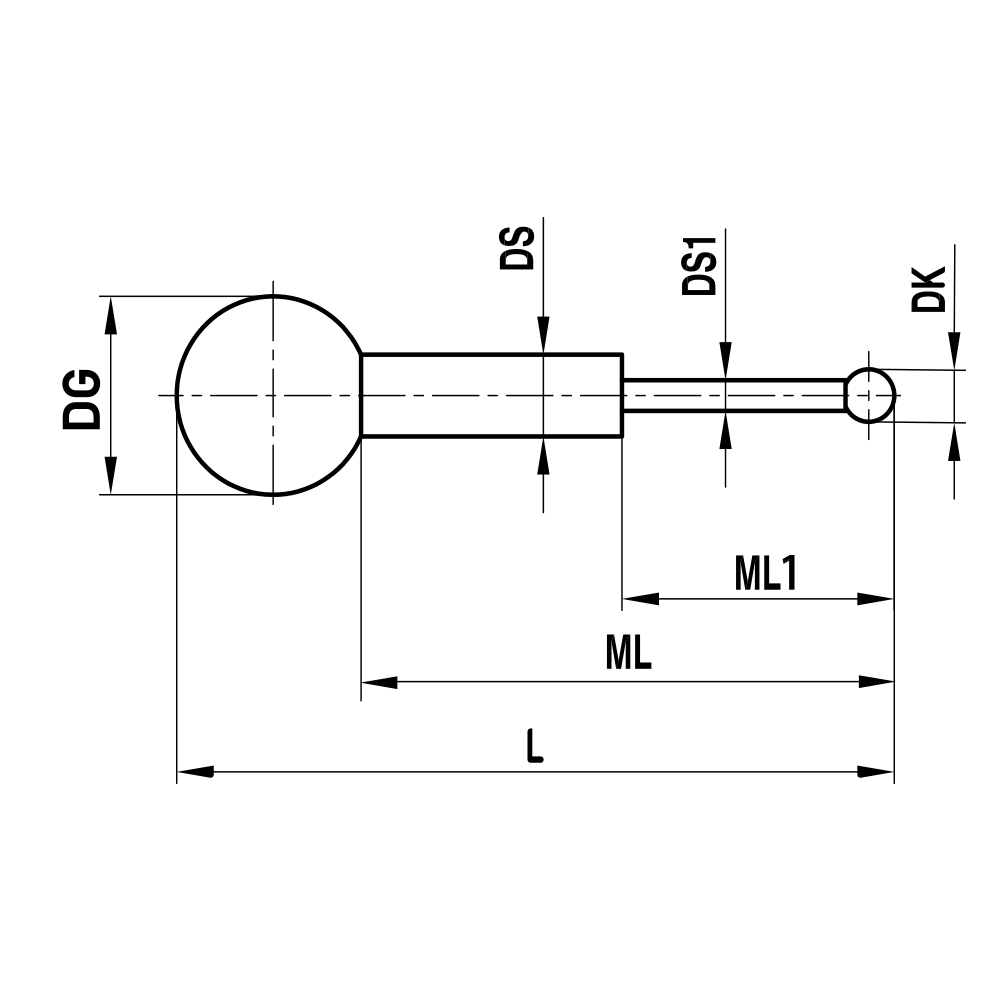

| Styli Type | Other |
| Thread Size | M5 |
| Ball Diameter (DK) | 1 |
| Overall Length (L) | 17.5 |
Learn more about Klarna
Description
The ITP Straight Stylus is a precision contact probe designed for use with KIM502211040 assemblies, delivering reliable, repeatable touch in tight spaces. Its quick-angle adjustment and optional ruby touch ball make it ideal for electronics, metrology, and alignment tasks where a precise, linear contact is essential.
- Thread and length: M5 thread with a compact 17.5 mm overall length for secure mounting and access in confined work areas.
- Angle adjustment: Ball bearing clamp lets you set any angle instantly, reducing repositioning and speeding up workflows.
- Tip options: Ruby ball touch element is available for delicate contact and low-friction probing (optional).
- Construction: Durable metal shaft designed for repeated probing and stable alignment on varied surfaces.
- Compatibility: Specifically designed to work with KIM502211040 inspection and measurement fixtures for seamless integration.
With this straight stylus, you gain precise control over contact depth and angle, enabling accurate measurements and consistent repeatability across repeated probes. The compact form fits into constrained fixtures, while the adjustable angle reduces manual re-positioning and operator effort. For delicate surfaces, choose the ruby ball touch element to minimize marring and maintain measurement integrity. This stylus supports streamlined calibration, alignment, and inspection tasks in electronics, optics, and precision assemblies.
Part Numbers
- Protool Part Number
- ITP-KKM501010017
- Brand
- ITP
- Category
- Styli
