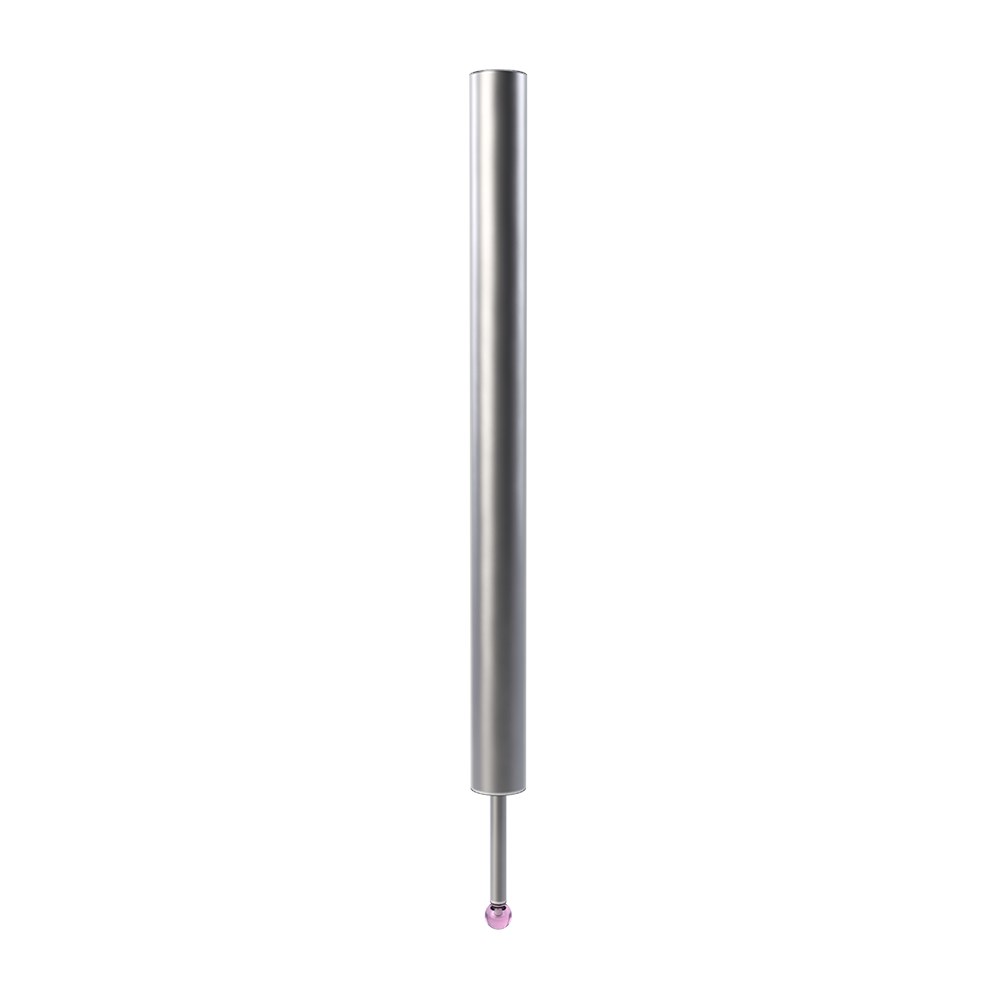

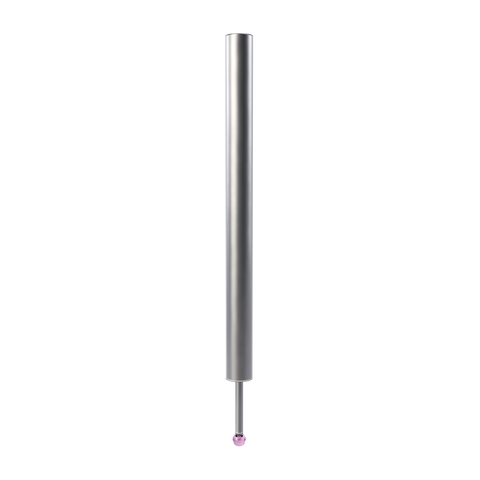

ITP Straight Styli - Type T - Ruby Ball - Without Thread x 15.5mm Overall Length - KTM500501015
| Styli Type | Type T |
| Thread Size | Without |
| Ball Diameter (DK) | 0.5 |
| Overall Length (L) | 15.5 |
| Shank Diameter (DG) | N/A |
| Measuring Length (ML) | 2.5 |
Learn more about Klarna
The ITP Straight Styli Type T with a ruby ball tip is a non-threaded, flexible probing solution designed for precise measurement tasks when mounted in the appropriate clamp holder. Its compact 15.5 mm overall length fits into tight spaces while delivering repeatable contact on delicate surfaces.
- Tip material and sizes: Ruby ball tip range from Ø0.2 mm to Ø5.0 mm, enabling fine-detail probing for sensitive surfaces. Other sizes can be requested via the configurator or by e-mail.
- Shank material: Tungsten carbide stem for exceptional wear resistance and long-term stability.
- Threadless design: Without threads, providing high flexibility and effortless mounting with compatible clamps.
- Stem configuration: The carbide stem can be single- or multi-stepped to suit different measurement geometries.
- Overall length: 15.5 mm, offering a compact reach for features in constrained areas.
- Clamp compatibility: Designed for use with the appropriate clamp holder to ensure secure, repeatable probing.
This ruby-ball stylus delivers precise, repeatable contact while the tungsten carbide stem stands up to repeated probing. The threadless shank reduces mounting constraints, enabling quick setup and reliable performance across measurements. Ideal for micro-measurement, calibration, and delicate probing tasks where precision matters, this Type T ruby-ball stylus (KTM500501015) integrates smoothly with standard clamp holders for dependable alignment and results.
| Styli Type | Type T |
| Thread Size | Without |
| Ball Diameter (DK) | 0.5 |
| Overall Length (L) | 15.5 |
| Shank Diameter (DG) | N/A |
| Measuring Length (ML) | 2.5 |
| Neck Diameter (DS) | 1 |
| Stem Material | carbide |
| Base Material | N/A |
| Prob Ball Material | ruby |
