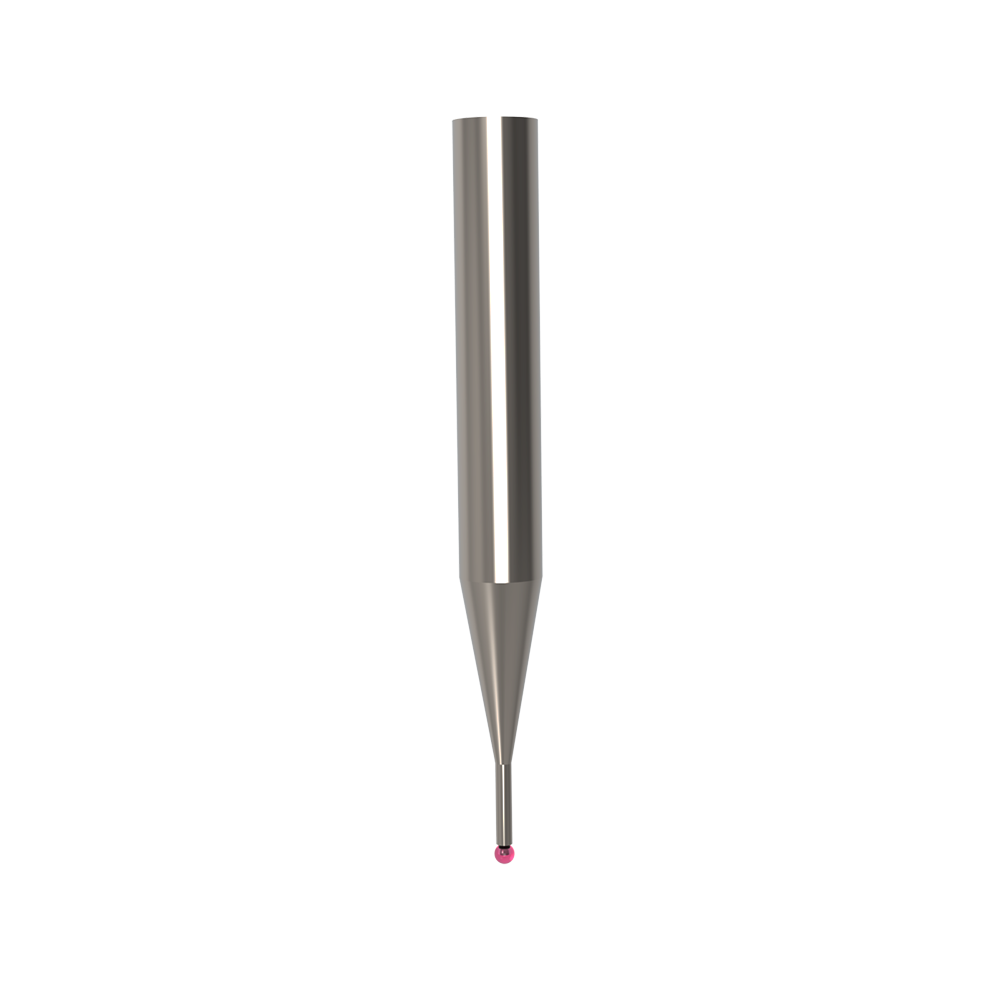

ITP Straight Styli - Type T - Ruby Ball - Without Thread x 35.5mm Overall Length - KTM501004035

The ITP Straight Styli Type T with Ruby Ball is a non-threaded probing stylus crafted for precision measurement in CMM setups. Designed for metrology professionals who need flexibility and reliable ruby-ball contact tips, this version delivers repeatable touch responses in tight spaces.

• Model / SKU: KTM501004035
• Non-threaded design: Provides high flexibility for probing across challenging angles and fixtures.
• Material: Tungsten carbide stem for exceptional rigidity and long wear resistance.
• Tip options: Ruby ball contact tips with diameters from 0.2 mm up to 5.0 mm (custom sizes available).
• Ball diameter range: Ø0.2–Ø5.0 mm; other sizes can be requested via configurator or by email.
• Overall length: 35.5 mm, offering a compact profile for close-quarters measurement.
• Clamp compatibility: Designed to be used with the appropriate clamp holder for secure mounting.

Ideal for metrology labs and on-machine inspection, this stylus enhances accuracy when measuring small features, pockets, and fine geometries. Its non-threaded design reduces thread wear and snag risk during rapid inspection cycles, while the tungsten carbide stem maintains consistent performance over many measurement runs. Ruby-ball tips provide repeatable contact with minimal deformation, supporting tighter tolerances and higher repeatability. The available ruby-ball diameters let you tailor the probing radius to each feature; if you need a size outside the listed range, you can configure or email for a custom option.
