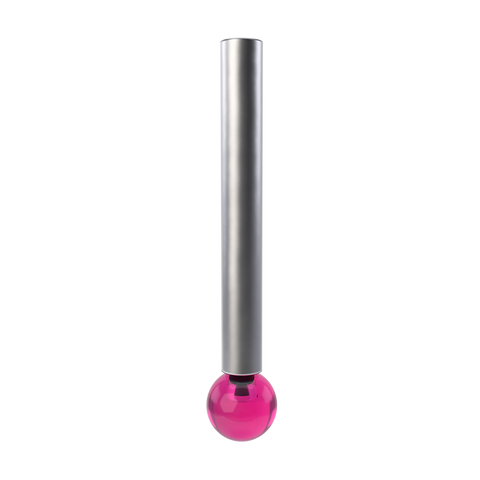

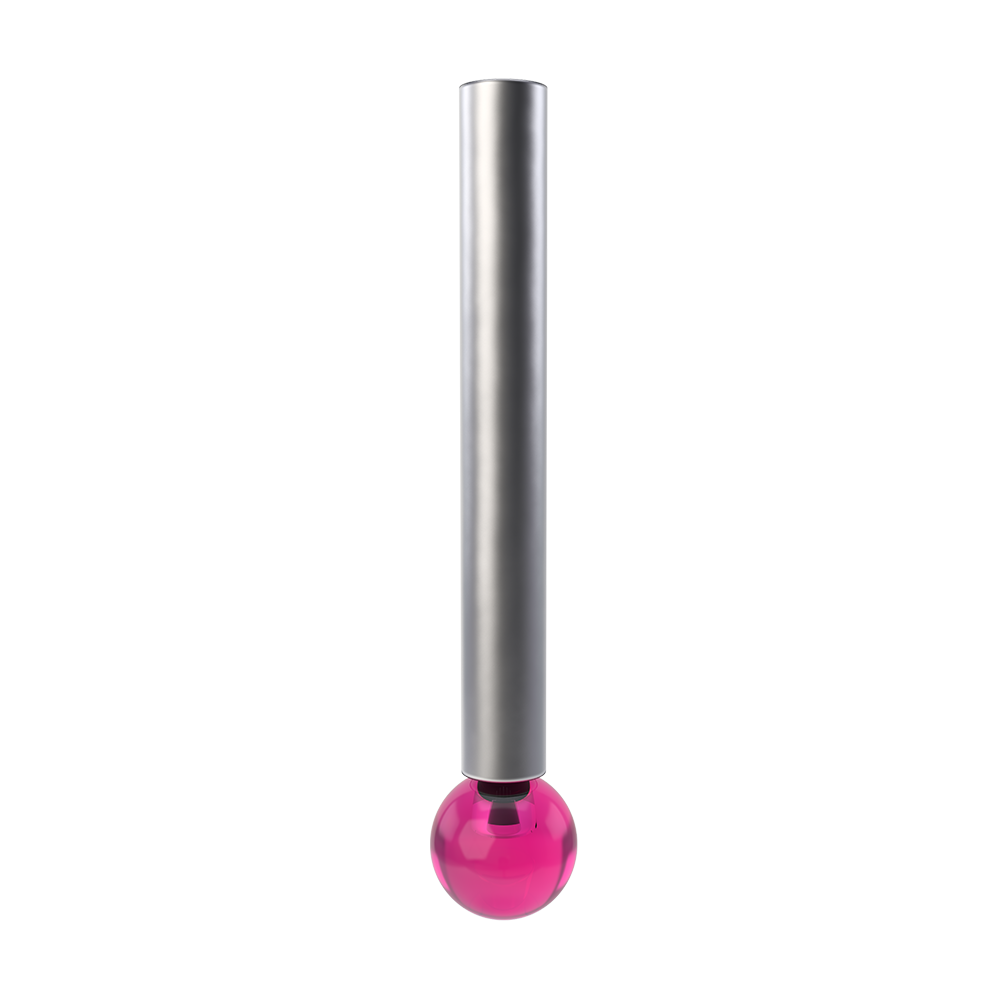

ITP Straight Styli - Type S - Ruby Ball - Without Thread x 38.5mm Overall Length - KTM507004038
| Styli Type | Type S |
| Thread Size | Without |
| Ball Diameter (DK) | 7 |
| Overall Length (L) | 38.5 |
| Shank Diameter (DG) | N/A |
| Measuring Length (ML) | 38.5 |
Learn more about Klarna
ITP Straight Styli Type S with ruby ball is a precision, threadless probing stylus designed for metrology and coordinate measurement tasks. It offers flexible mounting, a tungsten carbide stem, and ruby-ball contact for repeatable, accurate measurements in tight spaces.
- Length: 38.5 mm overall length for a compact, practical reach
- Design: Straight stylus with no thread, providing flexible mounting options
- Stem material: Tungsten carbide stem for stiffness, wear resistance, and long life
- Ball options: Ruby ball diameters from Ø1.35 mm to Ø10.0 mm; other sizes available via configurator or by email
- Compatibility: Designed for use with the appropriate clamp holder
- Family: Type S stylus series
- Part number: KTM507004038
The threadless design reduces setup constraints and easing alignment in challenging access areas, making it ideal for intricate features and tight pockets. The tungsten carbide stem delivers durable performance under repeated contact, helping maintain measurement consistency across sessions. Ruby ball sizes cover a wide range of probing needs—from delicate, fine-feature measurement to broader surface mapping—while the smooth ruby surface minimizes wear on both the stylus and the workpiece. The 38.5 mm length strikes a balance between reach and rigidity, and compatibility with standard clamp holders ensures secure, repeatable mounting. For custom ball sizes beyond the listed range, you can request options via the configurator or by email to tailor the tip to your specific application.
| Styli Type | Type S |
| Thread Size | Without |
| Ball Diameter (DK) | 7 |
| Overall Length (L) | 38.5 |
| Shank Diameter (DG) | N/A |
| Measuring Length (ML) | 38.5 |
| Neck Diameter (DS) | 4 |
| Stem Material | carbide |
| Base Material | N/A |
| Prob Ball Material | ruby |
