Widin Live Centre - Heavy Duty & Weight Requirements Lathe - NK Type - NO.3
| Size | MT3 |
| Head Diameter | 50 |
| Point Length | 29 |
| Point Diameter | 22 |
Learn more about Klarna
Description

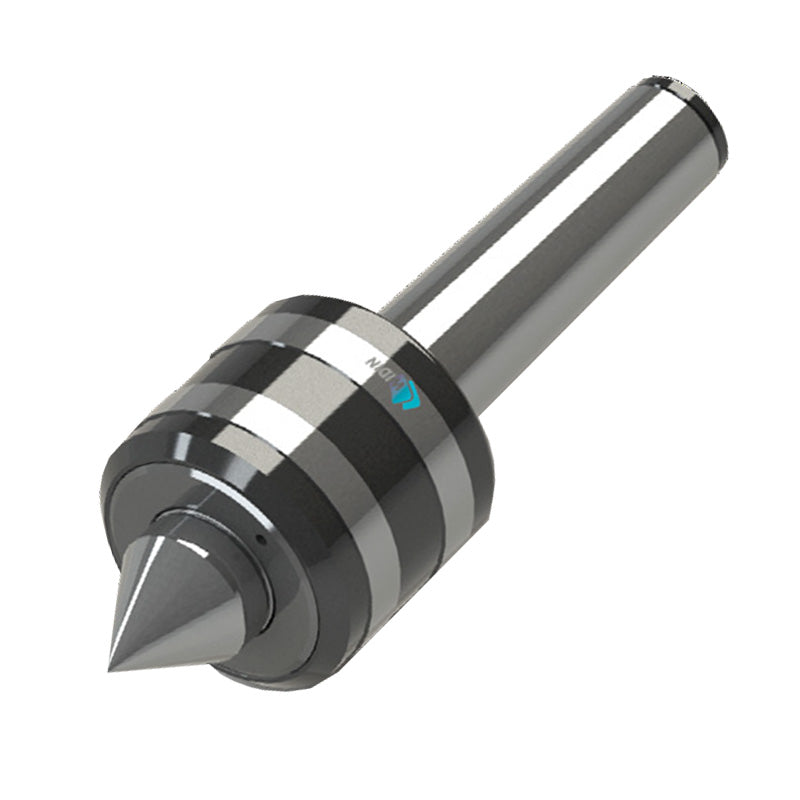

The Widin Live Centre is a heavy-duty lathe live center designed for demanding turning tasks. Built to meet strict weight requirements, this NK Type live center is offered with Morse tapers No.3 and No.7 to fit a wide range of lathes and applications.
For durability in tough shop conditions, it is sealed to prevent the inflow of cutting oils and other contaminants. A robust shaft with taper roller bearings delivers long service life, while precision is maintained with a shaft hardness of 58–62 HRC and an exceptionally low runout of 0.00012 inches (0.003 mm).
- Sealed to protect against oil and contaminants: Keeps cutting oils and debris from entering bearings, reducing maintenance and extending center life.
- Ultra-low runout for precise turning: With a runout of 0.00012 inches (0.003 mm), it delivers consistent concentricity and smoother finishes on every part.
- Rugged, hardened shaft with taper roller bearings: Hardened to 58–62 HRC and paired with taper roller bearings for long life and reliable performance under demanding workloads.
These design choices translate into real-world benefits: tighter tolerances, fewer interruptions for maintenance, and longer tool life. By supporting stable, accurate turns at higher weights, the Widin Live Centre improves workflow and helps you finish jobs faster with consistent results.
Part Numbers
- Protool Part Number
- LC-3NK
- Brand
- Widin
- Category
- Live Centre
Need cutting data? Call 01732 887334 or email sales@protool-ltd.co.uk.
Delivery
Free UK mainland delivery on orders over £50 ex VAT. In-stock items ordered before 4:30pm are dispatched the same working day. Full delivery information.
Returns
14-day returns on unused stock items in original packaging. Special-order and bespoke tooling is non-returnable. Read our returns policy.
Technical Support
Over 30 years of machining experience behind the counter. Call 01732 887334, Mon–Thurs 8:30–17:30, Fri 8:30–16:30.
Trade Accounts
Credit accounts, contract pricing and scheduled call-off orders available for trade customers. Apply for an account.
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Widin Live Centre - Heavy Duty & Weight Requirements Lathe - NK Type
View full collection →You are viewing LC-3NK. Click any other SKU to view its full details.

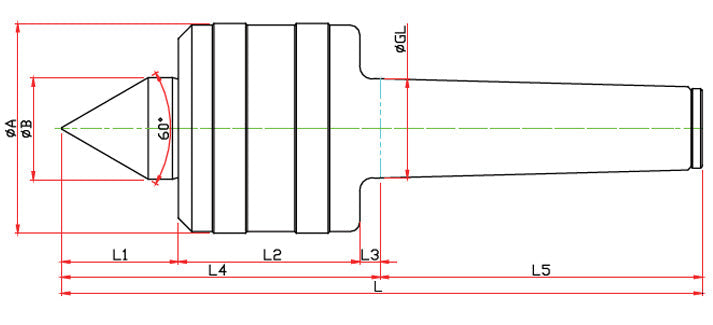

| Product SKU | Size | Head Diameter | Point Length | Point Diameter | Max RPM | Max Load | Concentricity | GL | L2 | L3 | L4 | L5 | L | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LC-3NK Viewing | MT3 | 50 | 29 | 22 | 5000 | 1900 | 0.003 | 23.825 | 42 | 5 | 76 | 80 | 156 | £200.01 | 5 days | |
| LC-4NK | MT4 | 66 | 37 | 32 | 3800 | 2700 | 0.003 | 31.267 | 57 | 6.5 | 100.5 | 101.5 | 202 | £235.07 | 5 days | |
| LC-5NK | MT5 | 80 | 45.5 | 40 | 3400 | 3200 | 0.005 | 44.399 | 57 | 6.5 | 109 | 129.5 | 238.5 | £303.13 | 5 days | |
| LC-6NK | MT6 | 132 | 65 | 65 | 1800 | 10000 | 0.005 | 63.384 | 100 | 8 | 173 | 182 | 355 | £1,123.93 | 5 days | |
| LC-7NK | MT7 | 168 | 84 | 72 | 1200 | 17200 | 0.005 | 83.058 | 128 | 10 | 222 | 250 | 427 | £6,186.76 | 5 days |
