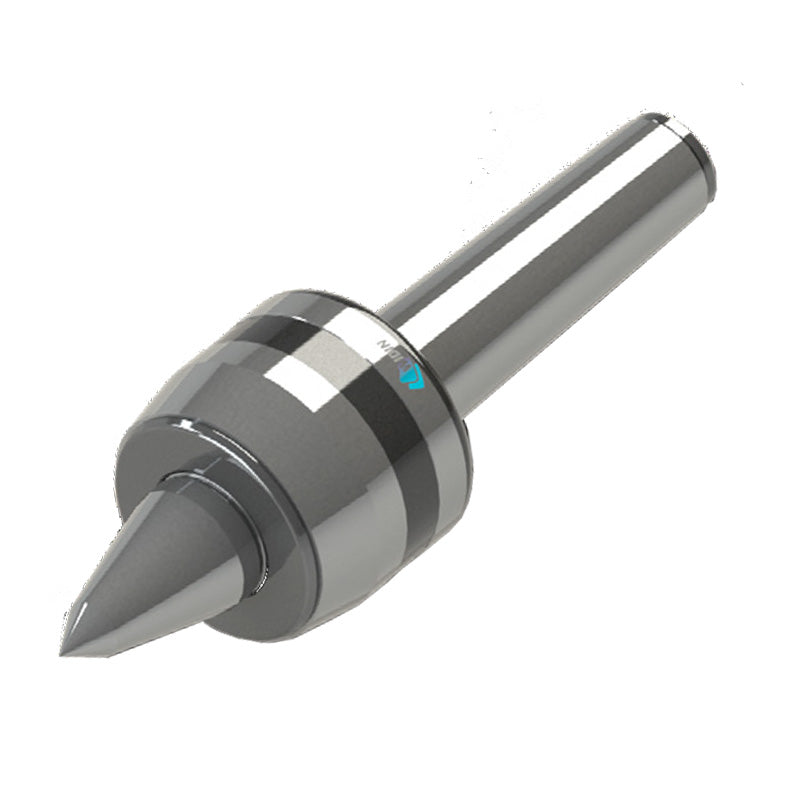

Widin Live Centre - Heavy Lathe - Minimizes Bite Interference - NCPB Type - NO.5

Widin Live Centre - Heavy Lathe, NCPB Type, No.5 is a high-precision live center designed for demanding turning operations on large lathes. It minimizes bite interference to help you achieve smooth, true-running workpieces and consistent finishes. The unit supports Morse taper mounting options No.3 or No.6 and is sealed to keep cutting oils and contaminants from entering the bearing bore.

Built for reliability, the center uses an upgraded triplex bearing structure and a shaft hardened to 58–62 HRC. This combination delivers long service life, reduced wear, and stable performance even under heavy loads. With a tight runout specification of just 0.00012 inches (0.003 mm), you get repeatable centering and high-precision results over long production runs.

• Ultra-precise rotation with ultra-low runout: 0.00012" (0.003 mm) runout and a 58–62 HRC hardened shaft deliver true centering and repeatable accuracy, reducing scrap and rework.
• Sealed design to keep oil and debris out: No.3 and No.6 Morse taper options allow fast, secure mounting while the sealed bore protects bearings from cutting oils and foreign substances, extending life and reducing maintenance.
• Durable triplex bearing system: Upgraded bearings provide better load handling, smoother rotation, and longer life in heavy turning applications, with less vibration and more consistent finishes.

Together, the Widin Live Centre delivers dependable performance, minimizes downtime from misalignment, and supports a wide range of turning tasks—from precision finishes to heavy roughing. It’s a trusted choice for professionals who value stability, durability, and reproducible results in every job.
