Widin Live Centre - Standard Lathe - Nut Type - NCBN Type - NO.6
| Size | MT6 |
| Head Diameter | 105 |
| Point Length | 78 |
| Point Diameter | 45 |
Learn more about Klarna
Description

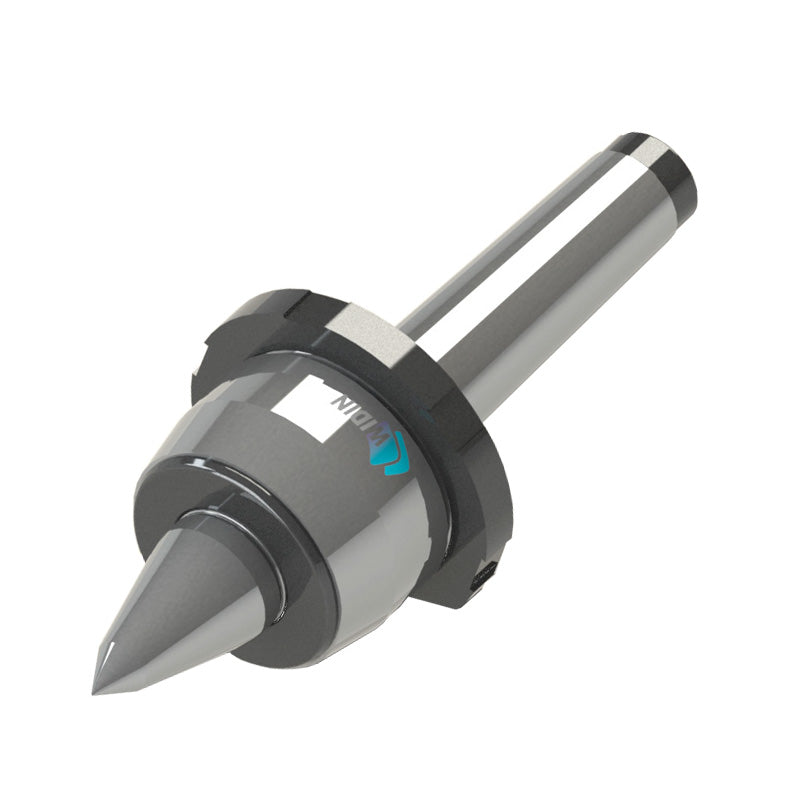

The Widin Live Centre is a nut-type live center designed for standard lathes, specifically the NCBN No.6 configuration. It minimizes bite interference for cleaner, more precise turning and is built to stand up to demanding shop use. The unit is compatible with Morse tapers No.3 and No.6, giving you flexible mounting options for a wide range of machines.
- Sealed design keeps cutting oils and contaminants out: prevents oil ingress and debris from reaching the bearing area, reducing maintenance and helping the center last longer in dusty or oily environments.
- Triplexed bearing construction for precision and durability: delivers consistent rotational accuracy under load, minimizing runout and providing reliable performance across long production runs.
- Hardened shaft and ultra-low runout: shaft hardened to 58–62 HRC with runout down to 0.00012" (0.003 mm) ensures repeatable, high-precision turning and smooth surface finishes even on tough materials.
With its combination of sealed protection, robust bearing architecture, and extreme runout control, this Widin Live Centre enhances workflow by delivering dependable concentricity, reducing setup time, and extending maintenance intervals. Whether you’re producing small batches or routine heavy-duty work, it helps you achieve consistent results and keep your lathe running at peak efficiency.
Part Numbers
- Protool Part Number
- LC-6NCBN
- Brand
- Widin
- Category
- Live Centre
Need cutting data? Call 01732 887334 or email sales@protool-ltd.co.uk.
Delivery
Free UK mainland delivery on orders over £50 ex VAT. In-stock items ordered before 4:30pm are dispatched the same working day. Full delivery information.
Returns
14-day returns on unused stock items in original packaging. Special-order and bespoke tooling is non-returnable. Read our returns policy.
Technical Support
Over 30 years of machining experience behind the counter. Call 01732 887334, Mon–Thurs 8:30–17:30, Fri 8:30–16:30.
Trade Accounts
Credit accounts, contract pricing and scheduled call-off orders available for trade customers. Apply for an account.
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Widin Live Centre - Standard Lathe - Nut Type - NCBN Type
View full collection →You are viewing LC-6NCBN. Click any other SKU to view its full details.

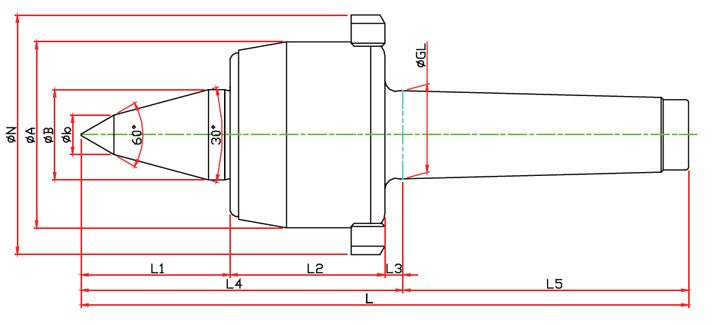

| Product SKU | Size | Head Diameter | Point Length | Point Diameter | Max RPM | Max Load | Concentricity | GL | b | L2 | L3 | L4 | L5 | L | N | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LC-3NCBN | MT3 | 50 | 47 | 22 | 4800 | 280 | 0.003 | 23.825 | 10 | 45 | 5 | 97 | 81 | 178 | 70 | £340.29 | 5 days | |
| LC-4NCBN | MT4 | 66 | 53 | 32 | 3800 | 510 | 0.003 | 31.267 | 14 | 55 | 6.5 | 114.5 | 101.5 | 216 | 85 | £389.79 | 5 days | |
| LC-5NCBN | MT5 | 82 | 65 | 40 | 3400 | 750 | 0.005 | 44.399 | 16 | 65 | 6.5 | 136.5 | 129.5 | 266 | 105 | £476.38 | 5 days | |
| LC-6NCBN Viewing | MT6 | 105 | 78 | 45 | 3000 | 940 | 0.005 | 63.384 | 18 | 80 | 8 | 166 | 182 | 348 | 130 | £1,173.43 | 5 days |
