Widin Live Centre - Heavy Duty & Weight Requirements Lathe - Minimizes Bite Interference - Carbide Tipped - NKBC Type - NO.6

Widin Live Centre - Heavy Duty & Weight Requirements Lathe - Minimizes Bite Interference - Carbide Tipped - NKBC Type - NO.6

SKU:LC-6NKBC
Widin Live Centre is a heavy-duty lathe live center with a carbide tip designed to minimize bite interference and ensure reliable centering during demanding turning tasks. Compatible with Morse T... Read more ↓
Specifications at a glance
SizeMT6
Head Diameter132
Point Length78
Point Diameter65
View all specifications ↓
£1,427.09
Prices shown ex. VAT
5 days estimated lead time — subject to availability
View Other Sizes →
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Klarna
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Speak to our team
01732 887334
Mon – Thurs 8:30 – 17:30 · Fri 8:30 – 16:30

Description

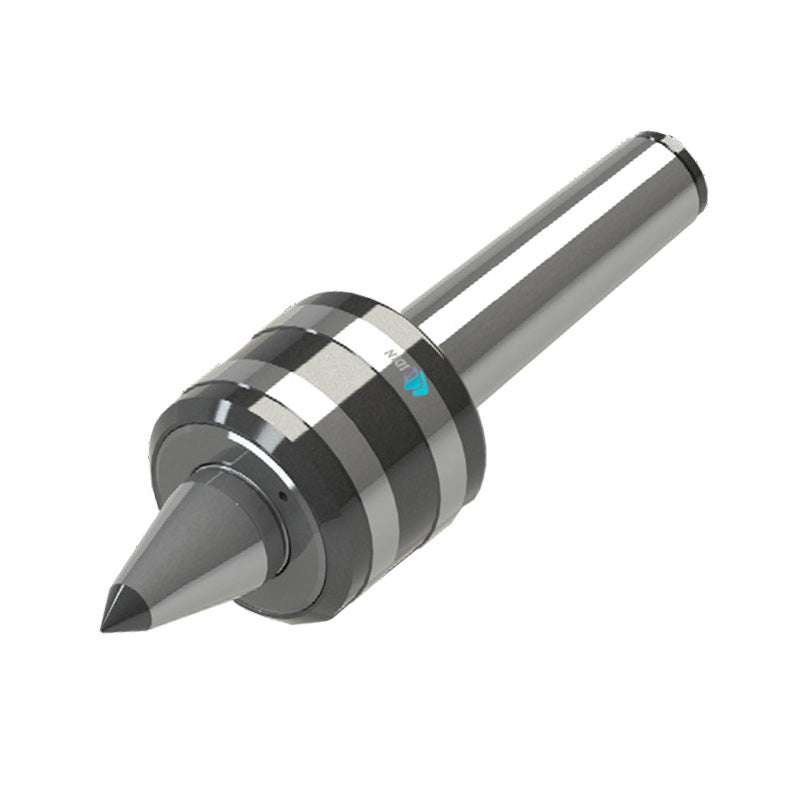

Widin Live Centre is a heavy-duty lathe live center with a carbide tip designed to minimize bite interference and ensure reliable centering during demanding turning tasks. Compatible with Morse Tapers No.3 or No.6 and built with taper-roller bearings, it delivers longer life and smooth operation, while a sealing design protects against cutting oils and contaminants.

  • Carbide-tipped for extended life: The carbide tip resists wear, delivering consistent centering and longer service life in tough materials and high-speed turning.
  • Sealed to protect against oils and contaminants: A robust seal blocks cutting oils and foreign substances from entering the bearing area, reducing maintenance and preserving accuracy.
  • No. 3 and No. 6 Morse taper options: Available with Morse Tapers No.3 or No.6 for flexible mounting and broad compatibility with standard lathes.

This live center combines durable construction with precise engineering to improve workflow: it minimizes bite interference for steadier engagement, offers ultra-low runout of 0.00012 inches (0.003 mm), and features a hardened shaft in the 58–62 HRc range with taper-roller bearings for lasting reliability across production runs and precision projects.

Part Numbers

Protool Part Number
LC-6NKBC
Brand
Widin
Category
Live Centre
No downloads are attached to this product yet.
Need cutting data? Call 01732 887334 or email sales@protool-ltd.co.uk.
Delivery

Free UK mainland delivery on orders over £50 ex VAT. In-stock items ordered before 4:30pm are dispatched the same working day. Full delivery information.

Returns

14-day returns on unused stock items in original packaging. Special-order and bespoke tooling is non-returnable. Read our returns policy.

Technical Support

Over 30 years of machining experience behind the counter. Call 01732 887334, Mon–Thurs 8:30–17:30, Fri 8:30–16:30.

Trade Accounts

Credit accounts, contract pricing and scheduled call-off orders available for trade customers. Apply for an account.

What time are Protool open?

We are open Monday to Friday between 8:30am and 5pm.

Do you offer Free Next Day delivery?

Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.

We also offer the following:

  • Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
  • DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
  • Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
  • DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.

For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.

*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.

Ask our technical team about this tool

Not sure if this is the right tool for your job? Ask us about speeds and feeds, material suitability, holders or alternatives — 30+ years of machining experience on the other end.

Prefer to talk? Call 01732 887334 — Mon–Thurs 8:30–17:30, Fri 8:30–16:30.

Full Range: Widin Live Centre - Heavy Duty & Weight Requirements Lathe - Minimizes Bite Interference - Carbide Tipped - NKBC Type

View full collection →

You are viewing LC-6NKBC. Click any other SKU to view its full details.

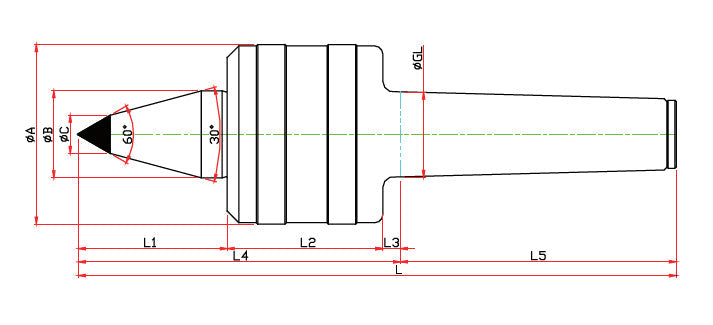

Product SKUSizeHead DiameterPoint LengthPoint DiameterMax RPMMax LoadConcentricityGLL2L3L4L5CLPriceStock Order
LC-3NKBC MT352482250009800.00323.825425958010175£253.66 5 days
LC-4NKBC MT4665332380014000.00331.267576.5116.5101.514218£303.13 5 days
LC-5NKBC MT58065.540340019000.00544.399576.5129129.518258.5£406.31 5 days
LC-6NKBC ViewingMT61327865180051000.00563.384100818618225368£1,427.09 5 days
