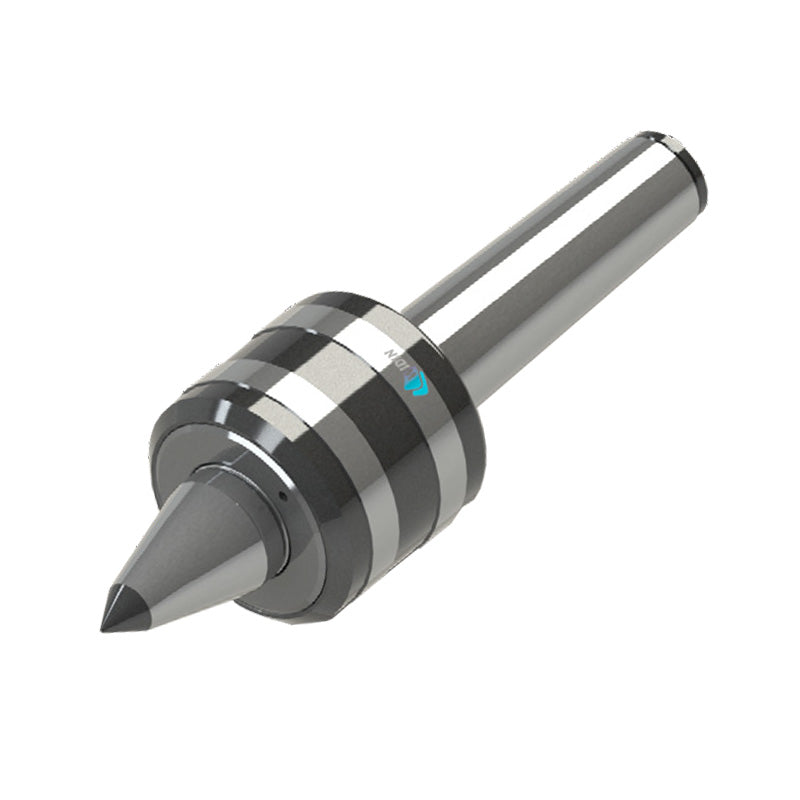

Widin Live Centre - Heavy Duty & Weight Requirements Lathe - Minimizes Bite Interference - Carbide Tipped - NKBC Type - NO.3

Widin Live Centre - Heavy Duty & Weight Requirements Lathe - Minimizes Bite Interference - Carbide Tipped - NKBC Type - NO.3

SKU:LC-3NKBC
NC HEAVY DUTY & WEIGHT REQUIREMENTS LATHE - MINIMIZES BITE INTERFERANCE & CARBIDE TIPPED- LIVE CENTER Morse Tapers Available - No. 3 - No. 6 Sealed to prevent the inflow of cutting oils ... Read more ↓
Specification
SizeMT3
Head Diameter52
Point Length48
Point Diameter22
Max RPM5000
Max Load980
View all specifications ↓
£269.34
Prices shown ex. VAT
5 days estimated lead time — subject to availability
View Other Sizes →
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Klarna
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Speak to our team
01732 887334
Mon – Thurs 8:30 – 17:30 · Fri 8:30 – 16:30
  • NC HEAVY DUTY & WEIGHT REQUIREMENTS LATHE - MINIMIZES BITE INTERFERANCE & CARBIDE TIPPED- LIVE CENTER
  • Morse Tapers Available - No. 3 - No. 6
  • Sealed to prevent the inflow of cutting oils and foreign substances
  • Longer life due to taper roller bearings
  • Shaft heated to 58 - 62 HRc
  • Run Out 0.00012" or 0.003mm

    • Size MT3
    Head Diameter 52
    Point Length 48
    Point Diameter 22
    Max RPM 5000
    Max Load 980
    Concentricity 0.003

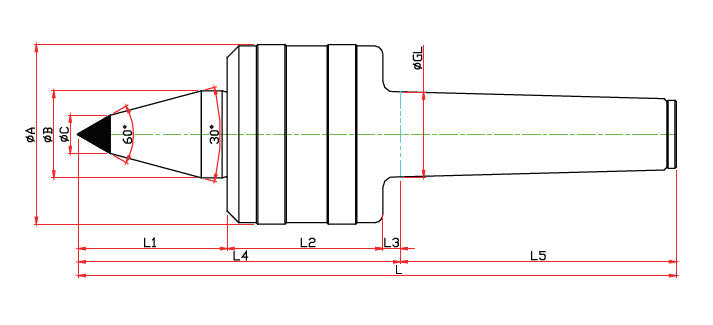

    GL 23.825
    L2 42
    L3 5
    L4 95
    L5 80
    C 10
    L 175

    What time are Protool open?

    We are open Monday to Friday between 8:30am and 5pm.

    Do you offer Free Next Day delivery?

    Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.

    We also offer the following:

    • Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
    • DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
    • Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
    • DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.

    For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.

    *T's & C's and exclusions apply. Please see our delivery page for more information on all our services.

    ★★★★★
    Nice experience staff are very helpful and interested...
    Staff are very helpful and interested in providing a good service making us the customer feel valued.
    Bill
    ★★★★★
    first place we look
    honest about stock and prices are competitive.
    Phil
    ★★★★★
    Polite and helpful
    Staff are very helpful and polite.Goods that were in stock were dispatched same day and back orders were quick in coming through .
    Graham
    ★★★★★
    Buying experience
    Phone requests are handled quickly and without any fuss. The website is easy to use and straightforward to order from. It’s especially helpful that it shows real‑time availability, so we don’t need to call to confirm whether parts will arrive.
    Jeremy

    Full Range: Widin Live Centre - Heavy Duty & Weight Requirements Lathe - Minimizes Bite Interference - Carbide Tipped - NKBC Type

    View full collection →

    You are viewing LC-3NKBC. Click any other SKU to view its full details.

    Product SKUSizeHead DiameterPoint LengthPoint DiameterMax RPMMax LoadConcentricityGLL2L3L4L5CLPriceStock Order
    LC-3NKBC ViewingMT352482250009800.00323.825425958010175£269.34 5 days
    LC-4NKBC MT4665332380014000.00331.267576.5116.5101.514218£321.87 5 days
    LC-5NKBC MT58065.540340019000.00544.399576.5129129.518258.5£431.43 5 days
    LC-6NKBC MT61327865180051000.00563.384100818618225368£1,515.30 5 days
