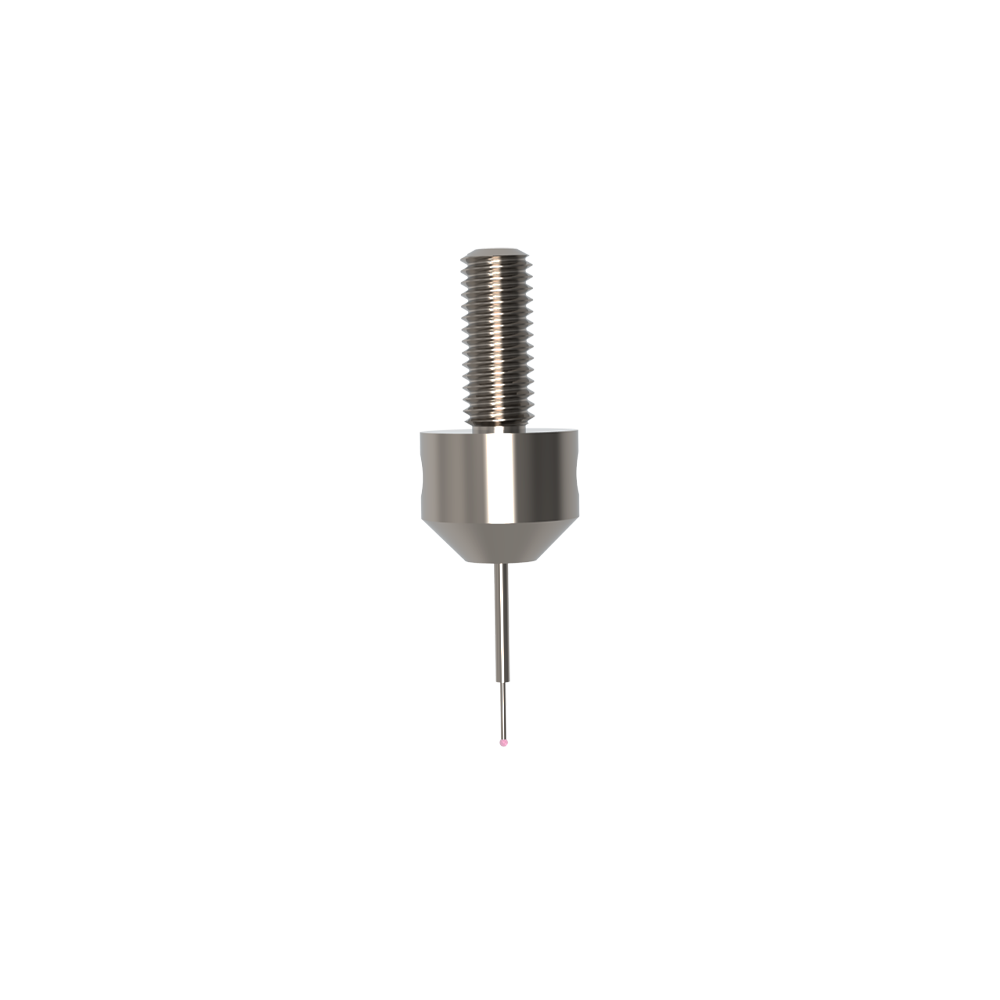

ITP Straight Styli - Type G - Ruby Ball - M5 Thread x 22.1mm Overall Length - LHM500611022

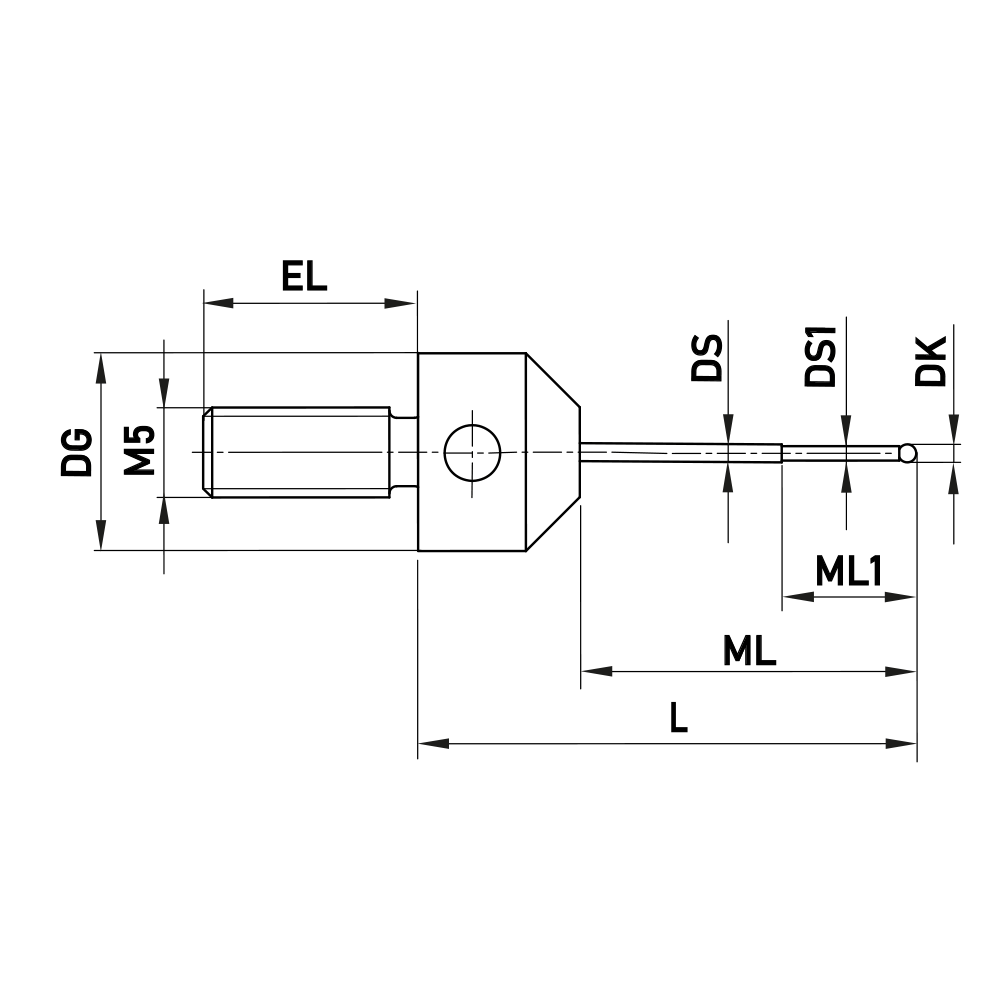

| Styli Type | Type G |
| Thread Size | M5 |
| Ball Diameter (DK) | 0.6 |
| Overall Length (L) | 22.1 |
Learn more about Klarna
Description
The ITP Straight Styli Type G with a ruby ball delivers a precise, rigid probing solution designed for mounting discs and star styli. Built around a tungsten carbide stem, it provides reliable contact for micro-dimension measurements in metrology, tooling, and QC environments.
- Threaded connection: M5 thread with a 22.1 mm overall length for secure mounting of discs and fixtures.
- Rigid tungsten carbide stem: Exceptional stiffness to minimize deflection and maintain dimensional stability during probing.
- Ruby ball tip: Premium ruby ball options from Ø0.3 mm up to Ø1.0 mm for small-feature measurements.
- Straight design with extended thread: Facilitates easy attachment of discs and star styli; grooved and clamping discs are required for star configurations.
- Configurable dimensions: Additional lengths and configurations available via configurator or by email to tailor to your setup.
The combination of a rigid carbide stem and precise ruby contact delivers repeatable, high-accuracy measurements, reducing the need for rework and speeding up inspection cycles. The extended thread provides flexibility to adapt to different mounting systems, while the ruby ball’s micro-diameter options enable probing of tiny features with smooth, consistent contact. This stylus is ideal for coordinate measuring machines (CMMs), inspection labs, and precision tooling environments where small-diameter ruby balls enable reliable measurement of micro-features, edges, and complex geometries. With configurable dimensions, you can tailor the tool to your exact fixture, probe head, or instrument requirements, enhancing workflow efficiency and measurement confidence.
Part Numbers
- Protool Part Number
- ITP-LHM500611022
- Brand
- ITP
- Category
- Styli
