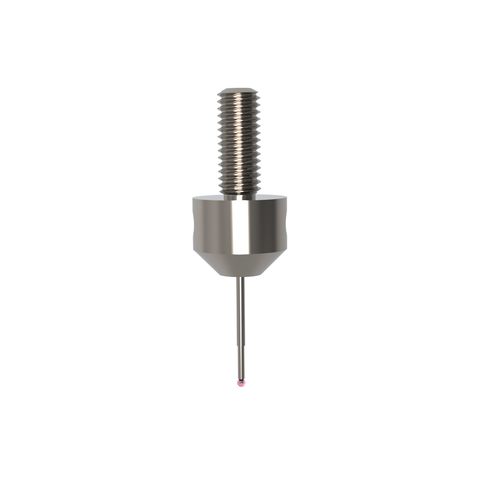

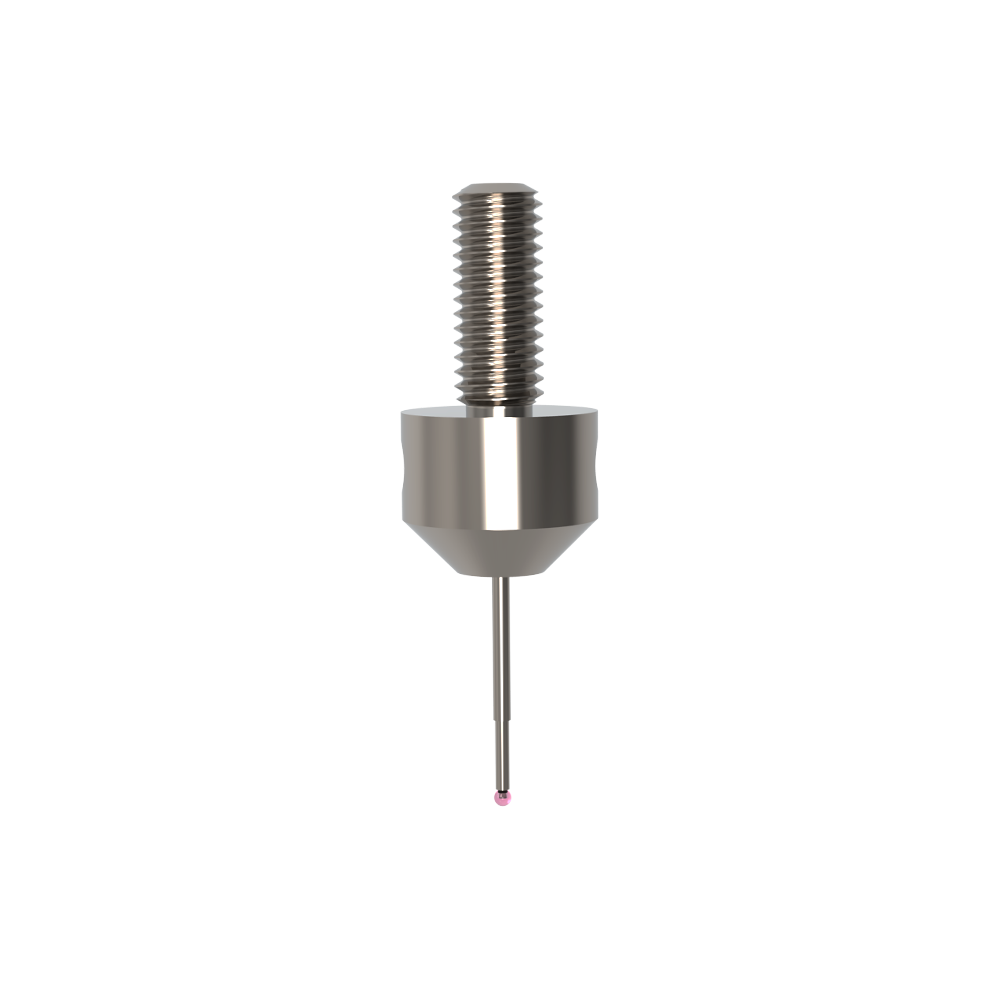

ITP Straight Styli - Type G - Ruby Ball - M5 Thread x 22.5mm Overall Length - LHM501011022

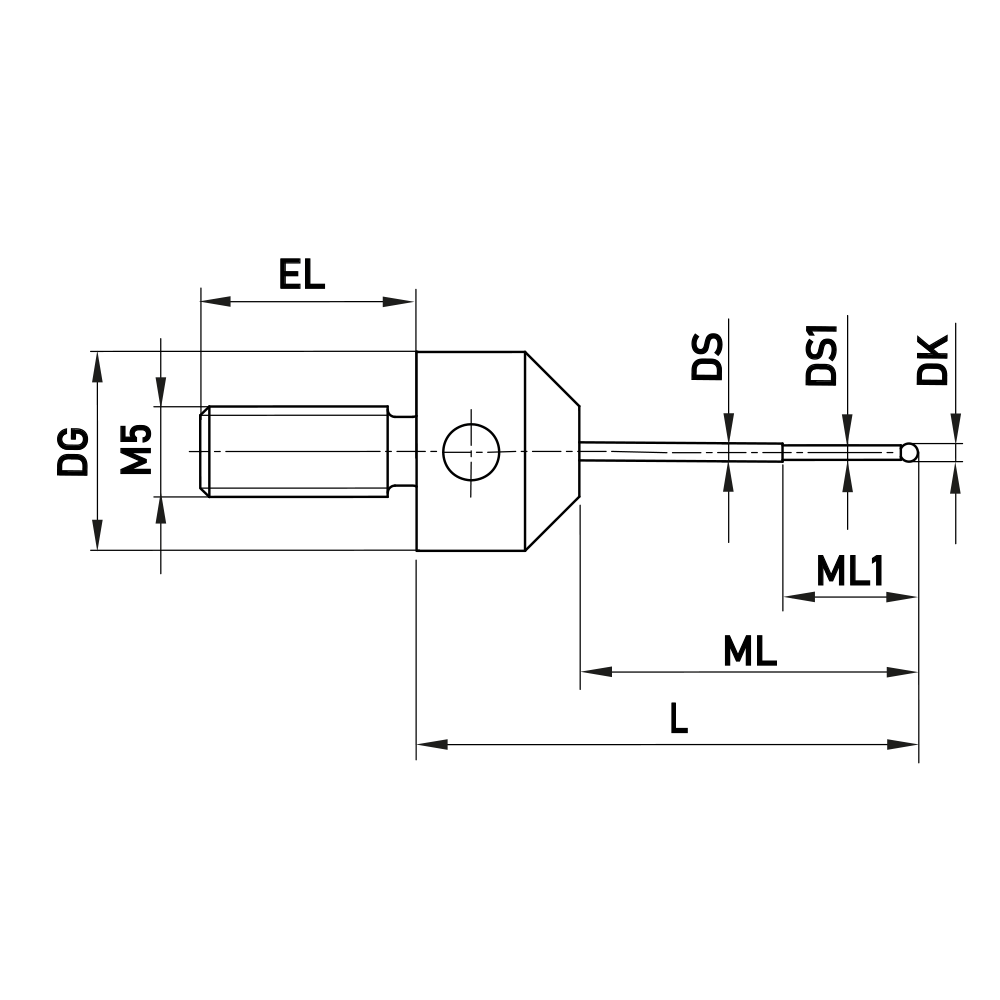

| Styli Type | Type G |
| Thread Size | M5 |
| Ball Diameter (DK) | 1 |
| Overall Length (L) | 22.5 |
Learn more about Klarna
Description
The ITP Straight Styli Type G with Ruby Ball is a precision touch probe stylus designed for metrology workstations that demand rigidity and reliable ruby-tipped contact. Built to mount discs and star styli, it pairs a robust tungsten carbide stem with a precisely finished ruby ball for consistent measurement results.
- Model / Reference: ITP Straight Styli - Type G, Ruby Ball, M5 Thread, 22.5 mm overall length (LHM501011022)
- Tip material: High-quality ruby ball available in diameters from 0.3 mm to 1.0 mm for accurate probing
- Stem material: Tungsten carbide for exceptional rigidity and dimensional stability
- Thread: Extended M5 thread to simplify mounting of discs and star styli
- Overall length: 22.5 mm to suit a wide range of probing geometries
- Design: Straight, Type G configuration for straightforward installation and alignment
- Compatibility: Works with grooved and clamping discs required for star styli assemblies
- Customization: Other dimensions can be requested via configurator or by e-mail
This styli set a high standard for stability in contact probing. The tungsten carbide stem minimizes deflection under load, helping you achieve repeatable reference points across multiple measurements. The ruby ball tips are chosen for their hardness and wear resistance, delivering clean, precise contact with the workpiece or reference discs. Extended threading expands mounting options, making it easier to secure the stylus in tight setups and to integrate with accessories designed for disc and star styli systems. When you need a reliable, configurable ruby-tipped stylus for metrology tasks, this ITP Straight Styli offers a practical, well-engineered solution.
Part Numbers
- Protool Part Number
- ITP-LHM501011022
- Brand
- ITP
- Category
- Styli
