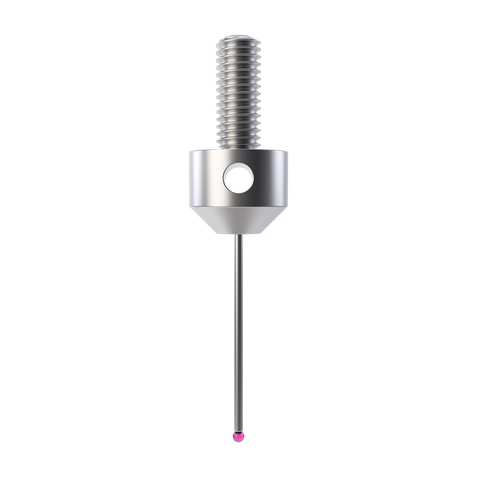

ITP Straight Styli - Type F - Ruby Ball - M5 Thread x 32.85mm Overall Length - LHM501311032

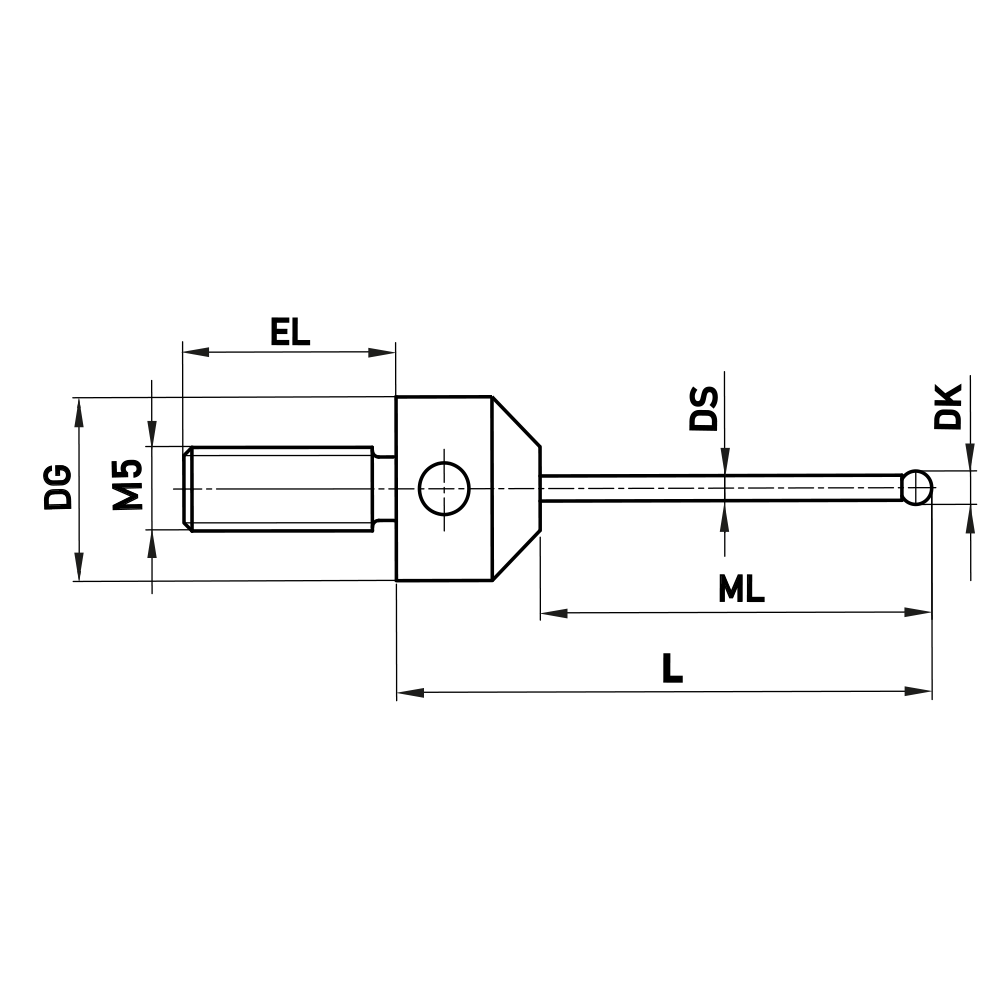

| Styli Type | Type F |
| Thread Size | M5 |
| Ball Diameter (DK) | 1.35 |
| Overall Length (L) | 32.85 |
Learn more about Klarna
Description

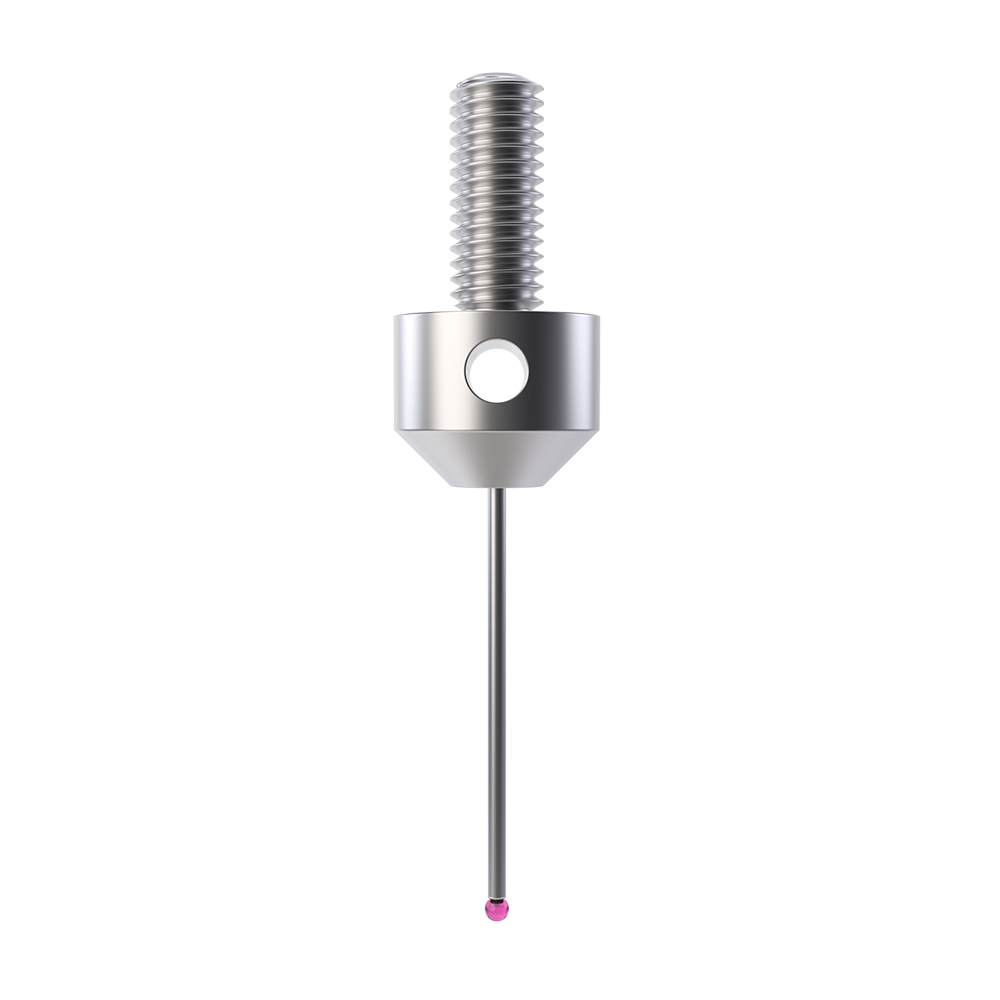

The ITP Straight Styli - Type F with a ruby ball is a precision straight stylus built for metrology setups that mount disc and star styli. Its robust tungsten carbide stem and high-quality ruby contact ball deliver repeatable, dependable measurements in micro-machining and inspection tasks.
- Thread: M5 thread with extended length for secure mounting of disc and star styli.
- Overall length: 32.85 mm from end to end for compatibility with tight fixtures.
- Stem material: Tungsten carbide for exceptional rigidity and wear resistance.
- Ruby ball options: High-quality ruby contact balls ranging from Ø1.35 mm to Ø5.0 mm.
- Star styli compatibility: Designed to work with grooved and clamping discs required to form star styli.
- Custom dimensions: Other dimensions available upon request via configurator or email.
- Part number: LHM501311032
This stylus provides stable, precise contact geometry for measurements, with a design that simplifies mounting and allows a range of ruby ball sizes to suit different probing radii. When your setup requires a specific dimension beyond the standard offering, you can request custom dimensions through the configurator or by email, ensuring the stylus fits your fixture and inspection workflow.
Part Numbers
- Protool Part Number
- ITP-LHM501311032
- Brand
- ITP
- Category
- Styli
