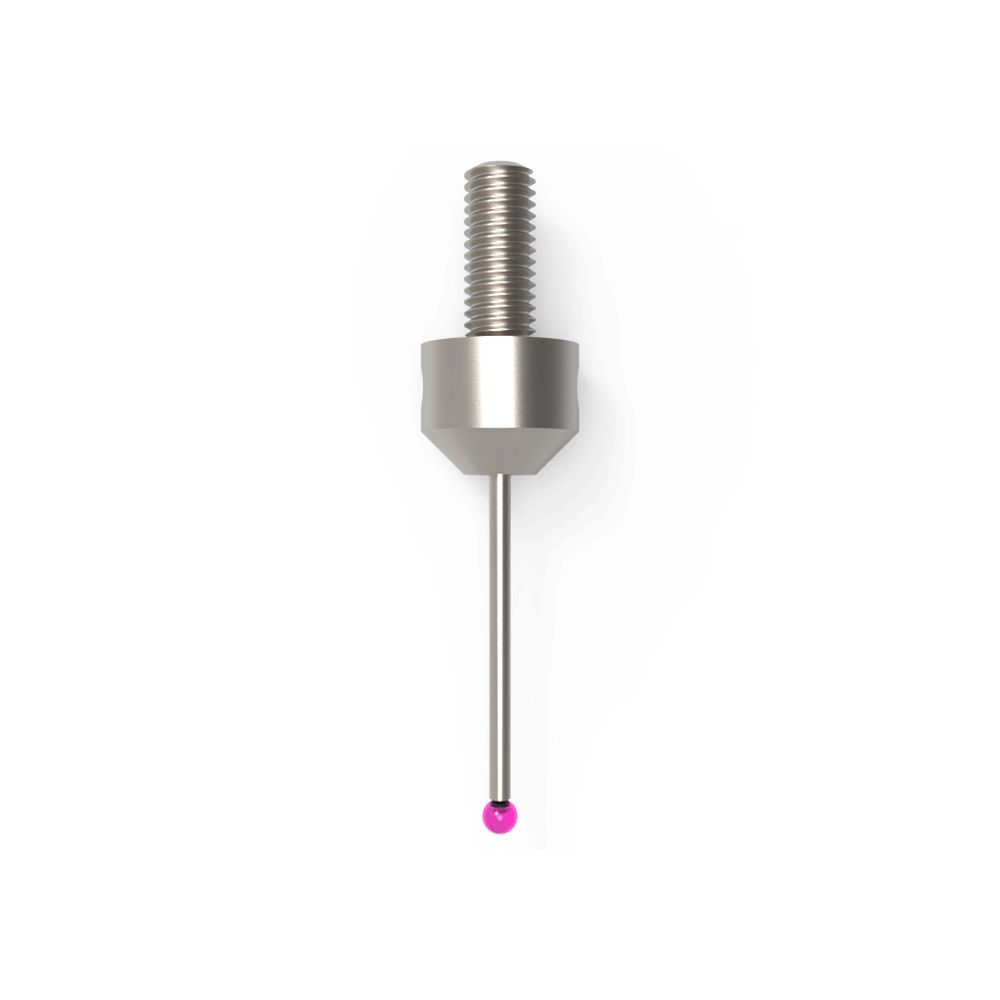

ITP Straight Styli - Type F - Ruby Ball - M5 Thread x 34mm Overall Length - LHM502511034

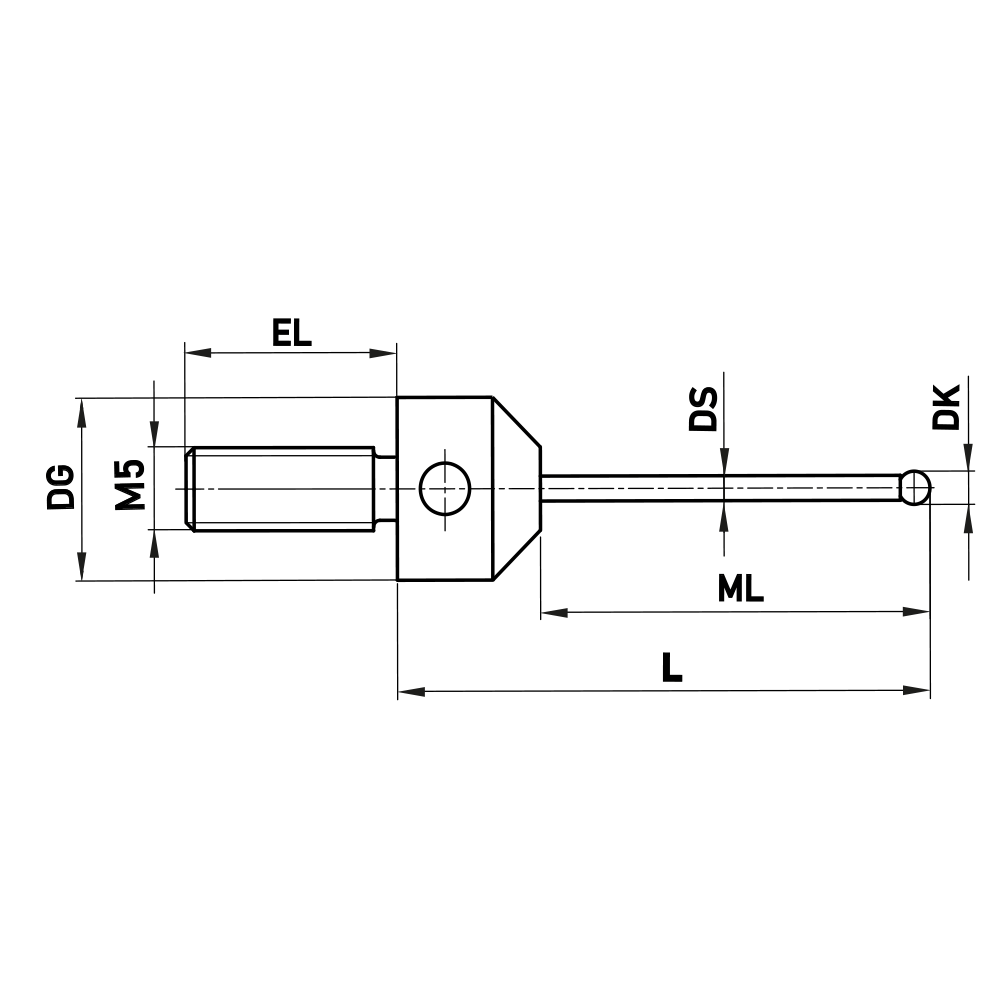

| Styli Type | Type F |
| Thread Size | M5 |
| Ball Diameter (DK) | 2.5 |
| Overall Length (L) | 34 |
Learn more about Klarna
Description
The ITP Straight Styli - Type F - Ruby Ball - M5 Thread x 34mm Overall Length (LHM502511034) is a precision probing stylus designed for metrology fixtures and CMM workflows. It’s crafted for technicians who need reliable, repeatable contact in compact setups and modular probing configurations.
- Threaded mounting: M5 thread with a 34 mm overall length for secure, versatile installation in tight spaces.
- Extended mounting thread: Extra length optimized for mounting discs and star styli, providing stable integration in complex probe assemblies.
- Rigid tungsten carbide stem: High stiffness minimizes deflection and preserves tip geometry under measurement loads across a wide range of dimensions.
- Ruby ball tip: High-quality ruby ball delivers precise, repeatable contact; compatible with a variety of probing tasks and wear-resistant performance.
- Type F straight design: Straight geometry reduces angular errors, ensuring consistent readings on both flat and curved surfaces.
- Disc/star stylus compatibility: For star-stylus configurations, grooved and clamping discs are required; plan your fixture accordingly.
- Custom dimensions available: If you need dimensions beyond 34 mm length, other sizes can be requested via configurator or by email.
This stylus supports accurate data capture in CMM inspections, fixture-based measurements, and precision grinding or machining verification. The combination of a tungsten carbide stem and a ruby ball delivers durability and repeatability, while the extended thread and Disc/Star stylus compatibility enable flexible, modular probing setups tailored to small features, tight tolerances, and challenging geometries.
Part Numbers
- Protool Part Number
- ITP-LHM502511034
- Brand
- ITP
- Category
- Styli
