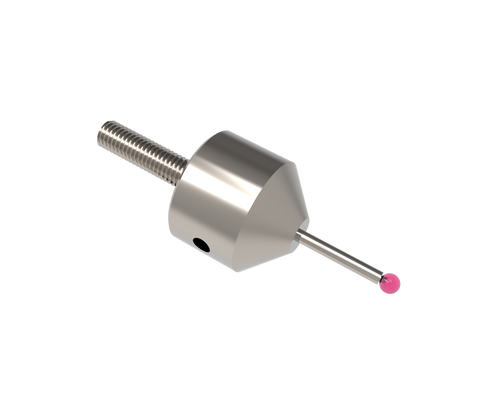

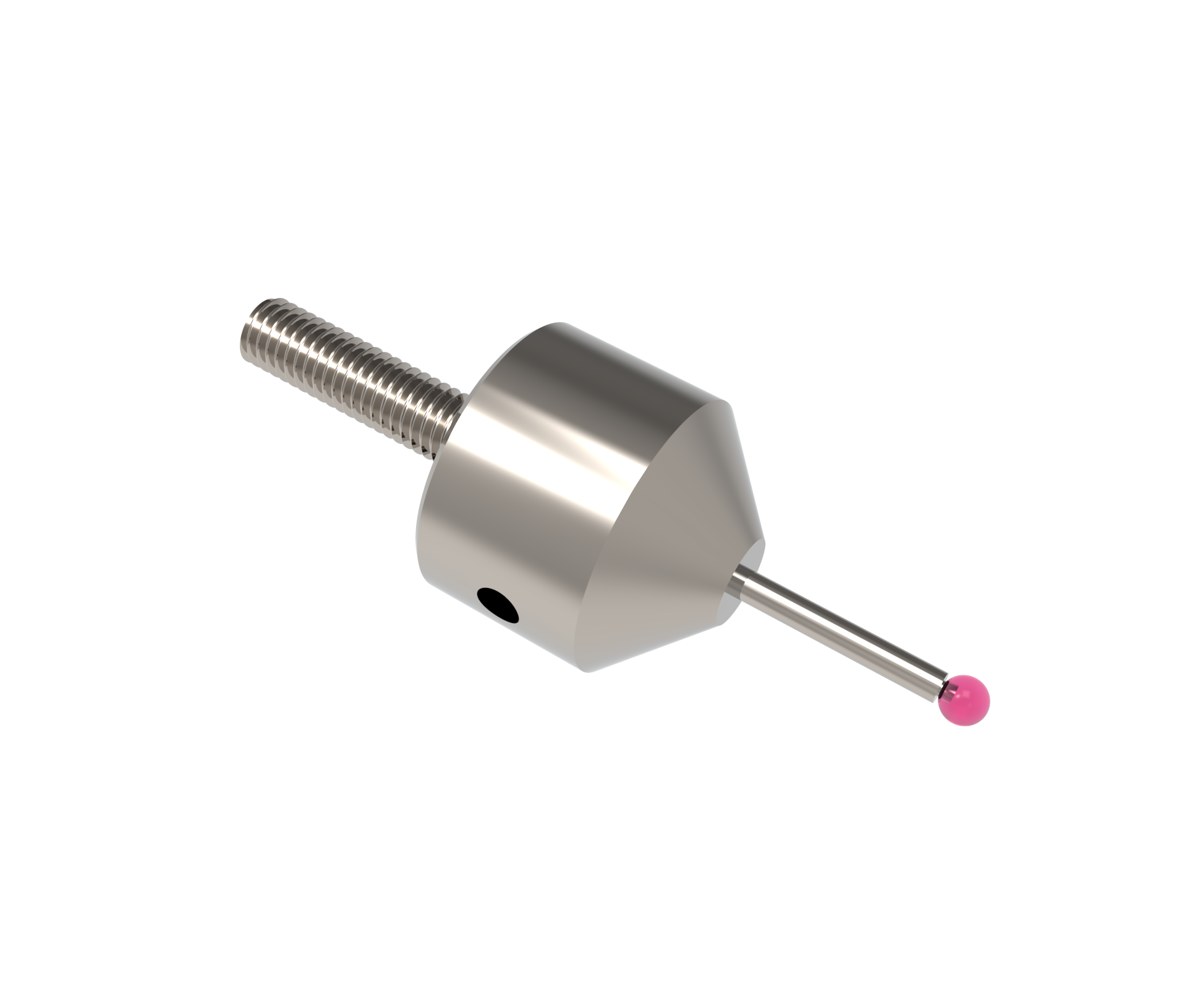

ITP Straight Styli - Type F - Ruby Ball - M5 Thread x 34.5mm Overall Length - LHM503019034

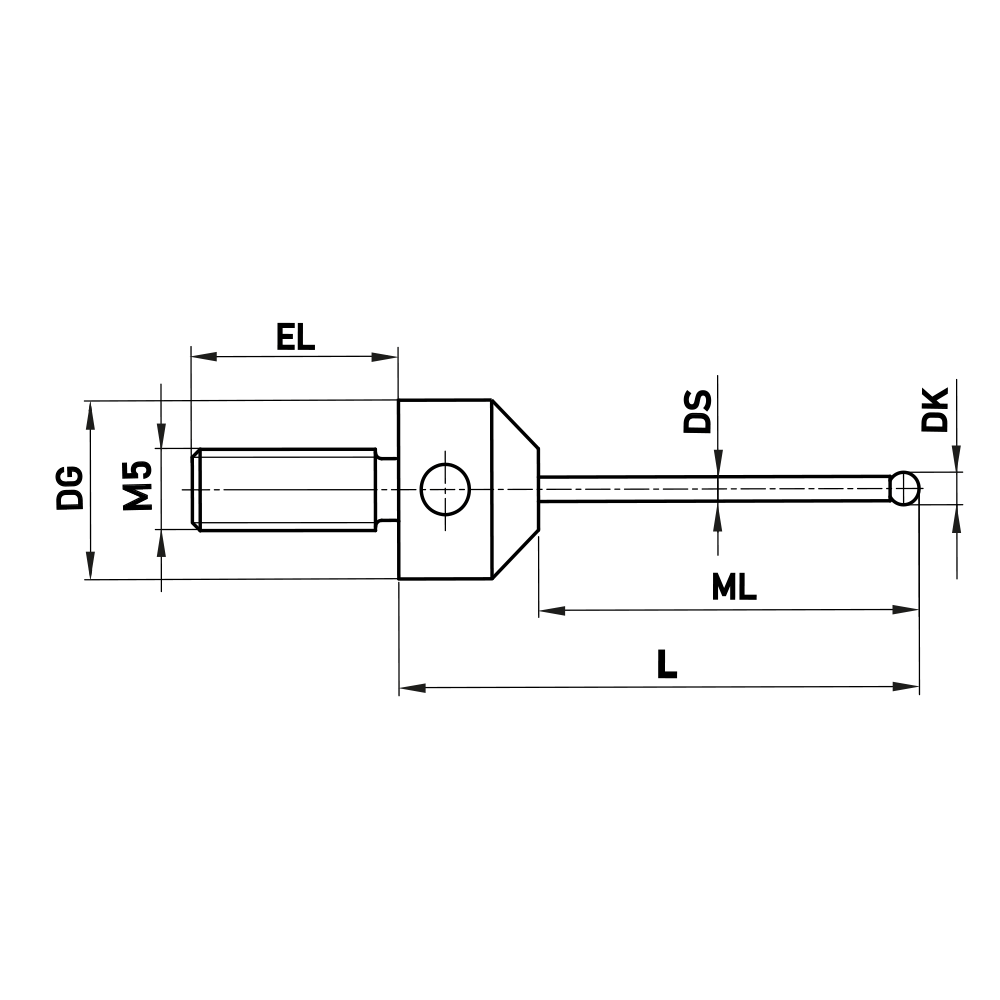

| Styli Type | Type F |
| Thread Size | M5 |
| Ball Diameter (DK) | 3 |
| Overall Length (L) | 34.5 |
Learn more about Klarna
Description
The ITP Straight Styli - Type F with Ruby Ball is a precision probing stylus designed for high-accuracy metrology, ideal for mounting discs or star styli. Built around a rigid tungsten carbide stem, it delivers dependable, repeatable measurements in tight tolerance workflows.
- Thread & Overall Length: M5 threaded shaft with a 34.5 mm overall length for easy integration into standard probing setups.
- Tungsten Carbide Stem: Ultra-rigid core that supports a wide range of dimensions and can be configured as single or multi-stepped to match your measurement needs.
- Ruby Ball Tip: High-quality ruby balls available from Ø0.3 mm to Ø1.0 mm, providing precise contact and excellent wear resistance.
- Mounting Compatibility: Extended thread purpose-built for mounting discs and star styli; grooved and clamping discs are used in the manufacture of star styli.
- Customizable Dimensions: Other dimensions can be requested via the configurator or by e‑mail to tailor the stylus to your application.
Designed to enhance probing reliability, this Type F ruby-ball stylus delivers stable contact geometry and reduced deflection under typical metrology loads. The combination of a hardened carbide stem and precision ruby tip helps improve measurement repeatability across small diameters, making it a versatile choice for disc or star stylus configurations and demanding inspection tasks.
Part Numbers
- Protool Part Number
- ITP-LHM503019034
- Brand
- ITP
- Category
- Styli
