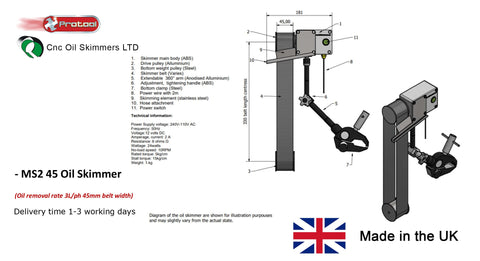

Complete CNC Oil Skimmer Set MS2 45

The Complete CNC Oil Skimmer Set MS2 45 is a compact, reliable tramp oil removal solution designed for CNC milling and turning setups. Built for shops that value clean coolant and smooth operation, it delivers steady oil extraction with minimal fuss.

• 12V DC motor with high-torque gearbox: Robust drive system that provides dependable performance in demanding workshop environments.
• Oil removal rate: Up to 3.5 L/hour to efficiently pull away tramp oil from your CNC coolant.
• Belt width and drop length: 45 mm belt width with a 380 mm drop length and 800 mm circumference for effective oil pickup across the tank surface.
• Main body dimensions: Compact housing measuring 145 mm (L) × 70 mm (W) × 100 mm (H) for easy integration into tight spaces.
• Extendable arm: Fully extended with a 360° foot, reaching 145 × 80 × (100–400) mm (L × W × H) to position the skimmer where oil tends to collect.
• Weight: Lightweight design at 2.5 kg, enabling simple installation and minimal footprint.
• Durability and quiet operation: Wear-resistant metal gears deliver long service life with low-noise performance.
• Power and connectivity: Designed for 12V DC power with a power switch and include a 2 m power lead for flexible mounting.
• Key performance specs: No-load speed of 10 RPM and stall torque of 15 kg/cm to handle varying load conditions without stalling.

This skimmer helps maintain cleaner coolant, reduces the risk of oil carryover into the spindle and chips, and supports steadier cutting conditions. By removing tramp oil consistently, it can improve tool life, enhance surface finish, and decrease downtime caused by dirty coolant. Its compact, self-contained design makes it suitable for a wide range of CNC tanks, from compact mills to larger turning centers, while its durable build and low-maintenance operation keep your workflow flowing smoothly.
