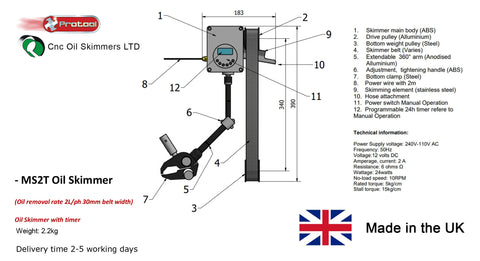

Complete Oil Skimmer with integrated timer MS2T

Meet the Complete Oil Skimmer with integrated timer MS2T—a rugged, timer-enabled tramp oil skimmer designed for CNC machines and workshop sumps. It delivers reliable, automated oil removal from coolant so you can keep chips clean, extend tool life, and reduce manual maintenance.

• 12V DC motor with high-torque gearbox: Powerful performance for steady, efficient skimming with quiet operation.
• Wear-resistant metal gear: Built to endure continuous use in demanding workshop environments.
• High torque ratings: Rated torque 5 kg/cm and stall torque 15 kg/cm for confident startup and consistent cutting-fluid removal.
• Compact main body: 140 mm (L) × 115 mm (W) × 100 mm (H) profile fits into tight tool basins without crowding your workspace.
• Belt details: Standard belt width 45 mm, drop length 380 mm, and 800 mm belt circumference for effective oil capture.
• Extendable 360° arm: Anodised aluminium arm lets you position the skimmer precisely where the oil collects.
• Materials and construction: Skimming element in stainless steel; drive pulley in aluminium; bottom weight pulley in steel; ABS housing for durability.
• Integrated timer: Programmable 24-hour timer enables automatic operation with manual operation option when needed.
• Power and wiring: 12 V DC power supply with a 2 m power lead and accessible power switch for quick control.
• Belt accessibility: Belt replacement and maintenance are straightforward with a standard 800 mm circumference belt and simple adjustment.
• Weight and footprint: Lightweight at about 2.2 kg, designed to minimize added load in the chip pan area.
• Mounting and reach: 360° foot and 360 mm center-to-center pulley spacing provide flexible installation in various basins.

The MS2T oil skimmer is purpose-built for CNC machining environments where tramp oil management is critical. Its integrated timer reduces the need for constant monitoring, while the robust motor, wear-resistant transmission, and stainless steel skimmer element handle daily duty in busy shops. Use it to keep coolant clean, protect machine tools from oil carryover, and extend the life of filters and coolants—all with a compact, easy-to-install unit that fits standard basins and chip pans.
