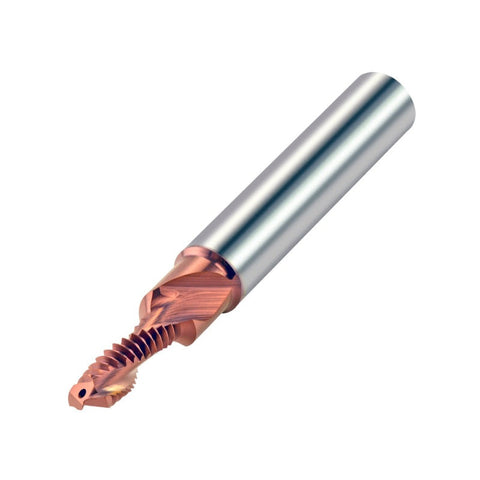

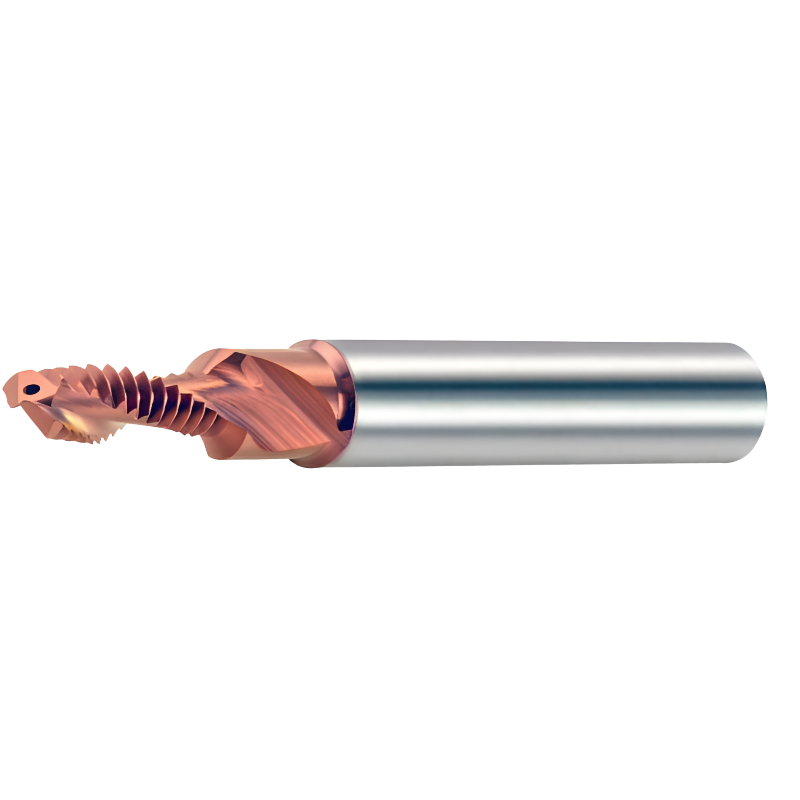

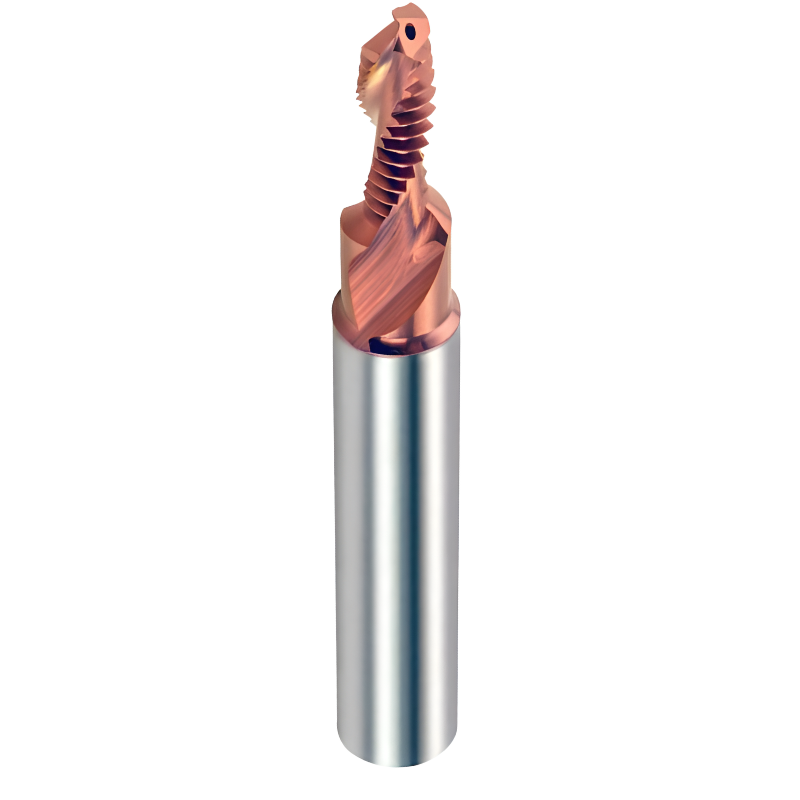

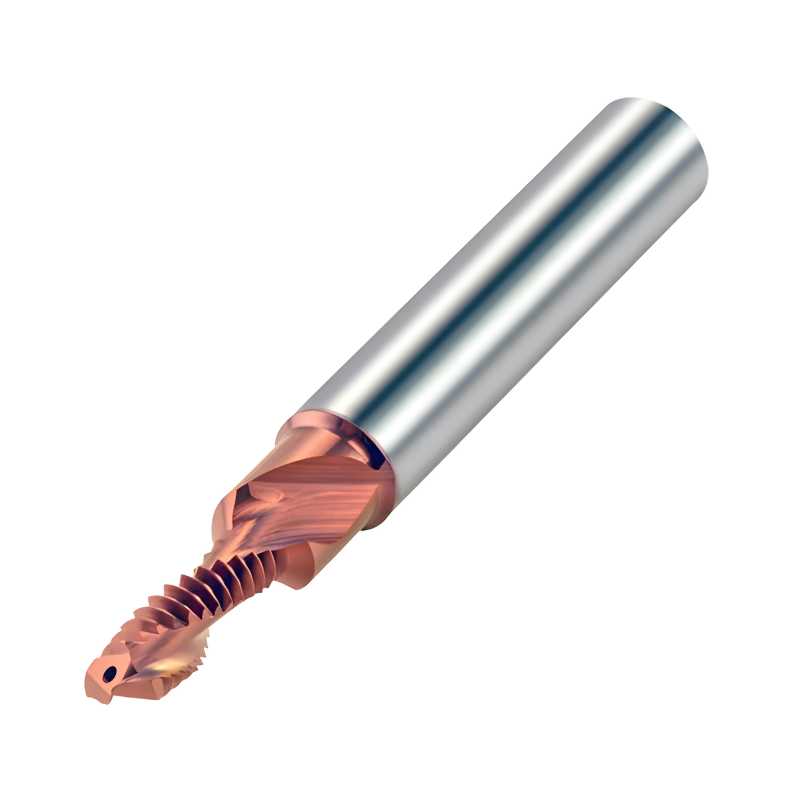

Carmex Thread Mills Carbide Drill Mill - UN (UNC UNF UNEF UNS) - x 32 - MT7

The Carmex Thread Mills Carbide Drill Mill is a precision tool engineered to drill, chamfer, and thread mill internal threads in a single operation. Designed for high‑volume production, it delivers consistent, high‑quality threads with reduced tooling changes.

• All‑in‑one operation: Drills, chamfers, and thread mills in one pass to streamline production.
• Two‑fluted design: Efficient cutting with stable chip evacuation for clean, accurate threads.

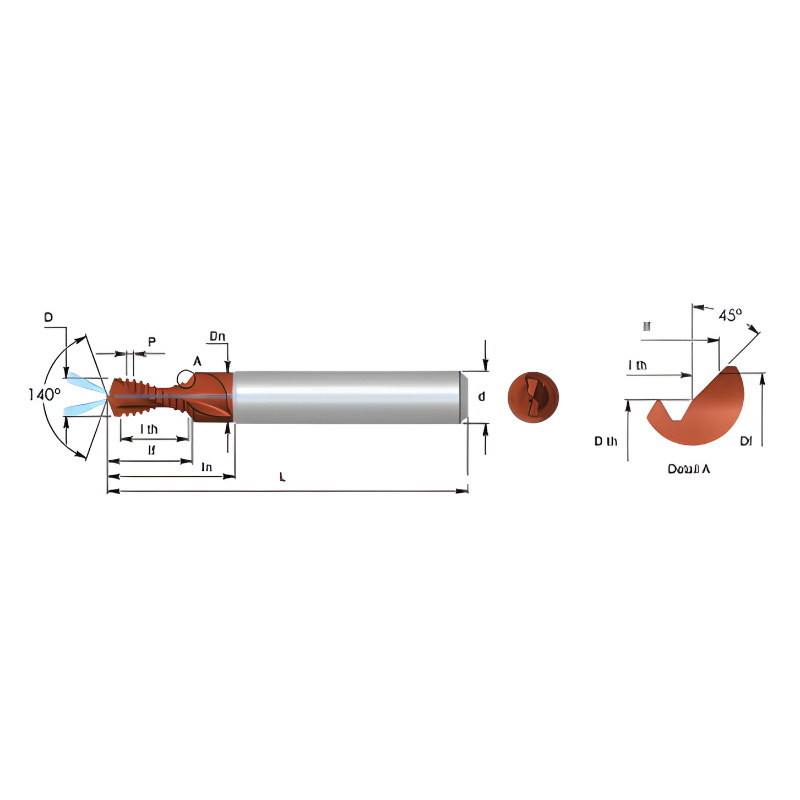

• 45° chamfer: Gentle, accurate start to threads, minimizing misalignment during assembly.
• MT7 Sub‑Micron carbide with PVD triple coating: Hard, tough substrate with a low‑friction, long‑lasting surface for smooth cutting and extended tool life.
• Internal coolant bore: Built‑in coolant channel delivers cooling directly to the cutting edge, improving heat management and chip washout.
• Internal threading versatility: Compatible with right‑ and left‑hand internal threads across UNC, UNF, UNEF, and UNS standards.
• Hole flexibility: Suitable for both blind and through holes, reducing the need for additional tooling.
• Shank: MT7 shank for secure, rigid engagement in compatible toolholding systems.
• Size: Specified as x 32 in the product title for precise selection.

By combining drilling, chamfering, and thread milling into one operation, this tool minimizes cycle times and setup complexity in mass production environments. The high‑quality thread surface and accurate 45° chamfer ensure reliable engagement and consistent dimensional tolerance across UNC, UNF, UNEF, and UNS threads. The internal coolant bore enhances heat control and tool life, making it an excellent choice for precision components in aerospace, automotive, mold making, and medical device manufacturing where repeatable internal threading matters.
