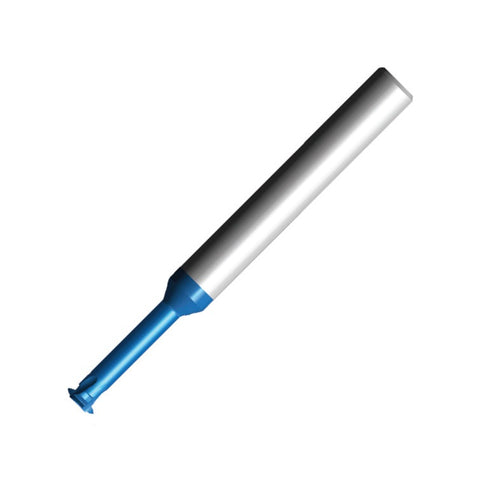

Carmex Thread Mills Carbide - Single Point - UN (UNC UNF UNEF UNS) - No. 1 x 72 - MT11
| Thread Form | UN (UNC UNF UNEF UNS) |
| Size | No. 1 |
| Pitch | 72 |
| Diameter (D) | 1.45 |
| Flute Length (l) | 1.06 |
| Shank Diameter (d) | 3 |
Learn more about Klarna
The Carmex Thread Mills Carbide - Single Point is a precision internal-thread milling tool designed for small-diameter holes. It’s ideal for machinists needing accurate, repeatable internal threads in compact components.
- No. 1 x 72 size with MT11 shank: Compact form factor paired with a rigid MT11 interface for stable milling on standard CNC machines.
- Internal thread milling capability: Cuts internal threads, including ISO metric sizes (M1 x 0.25) and standard UNF threads (0-80), enabling versatile part fabrication.
- UN thread profiles supported: Compatible with UNC, UNF, UNEF, and UNS thread forms to cover common assembly standards.
- Full-profile, multi-flute geometry: 3–4 flutes deliver strong rigidity and efficient chip evacuation for clean thread forms.
- Carbide with Ultra-fine sub-micron grade: High-precision cutting edge for crisp thread geometry and long tool life.
- Triple blue PVD coating: Enhanced wear resistance and corrosion protection in demanding materials.
- Depth capability: Thread depth up to 3.5x the thread diameter, depending on profile and hole geometry.
The tool enables precise, consistent internal threads in tight spaces, reducing the need for tapping and post-processing. The full-profile geometry minimizes thread distortion while delivering a smooth surface finish across the threaded area. The MT11 shank provides rigidity for stable milling, supporting higher feed rates and shorter cycle times. The triple blue PVD coating lengthens tool life in tough alloys and aluminum, making this thread mill a cost-effective choice for high-mix, low-volume jobs or high-volume production alike. Ideal applications include precision housings, sensor enclosures, hydraulic fittings, and other small-diameter components where reliable thread engagement matters.
| Thread Form | UN (UNC UNF UNEF UNS) |
| Size | No. 1 |
| Pitch | 72 |
| Diameter (D) | 1.45 |
| Flute Length (l) | 1.06 |
| Shank Diameter (d) | 3 |
| No of Flutes | 3 |
| Overall Length (L) | 39 |
| Thread Mill Style | Single Point |
| Internal or External | Internal |
| Coating | MT11 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Carmex Carbide Thread Mills - UN - Mini Type For Internal Thread (MTI)
View full collection →You are viewing MTI03015C772UNMT11. Click any other SKU to view its full details.
| Product SKU | Size | Pitch | Flute Length | Reach | Shank Diameter | Overall Length | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| MTI03012C580UNMT11 | No. 0 | 80 | N/A | 5.5 | 3 | 39 | £95.44 | 5 days | |
| MTI03015C772UNMT11 Viewing | No. 1 | 72 | 1.06 | 6.6 | 3 | 39 | £95.44 | 5 days | |
| MTI03016C956UNMT11 | No. 2 No. 3 | 56 | N/A | 8.9 | 3 | 39 | £95.44 | 5 days | |
| MTI03021C1040UNMT11 | No. 4 | 40 | 1.91 | 10.1 | 3 | 39 | £95.44 | 5 days |
