Carmex Thread Mills Carbide Mini Type - UNJ (UNJC UNJF UNJEF UNJS) - 1/4 x 28 - MT7
| Thread Form | UNJ (UNJC UNJF UNJEF UNJS) |
| Size | 1/4 |
| Pitch | 28 |
| Diameter (D) | 5.1 |
| Flute Length (l) | 2.72 |
| Shank Diameter (d) | 8 |
Learn more about Klarna

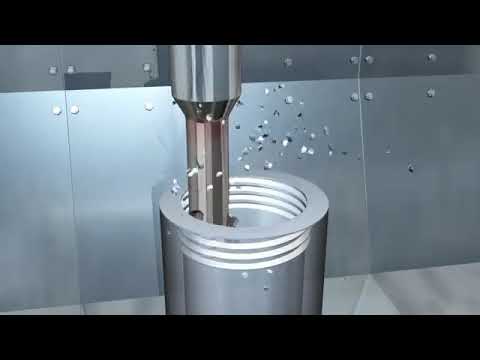

The Carmex Thread Mills Carbide Mini Type is a precision, compact threading tool designed for engineers who need reliable internal and external threads in tight spaces. Built for UNJ forms (UNJC, UNJF, UNJEF, UNJS) with a 1/4" diameter and 28 TPI, it delivers consistent results across materials and applications.
- Diameter x pitch: 1/4" diameter with 28 TPI for small, precise thread milling in confined areas
- Thread forms supported: Works with UNJ family (UNJC, UNJF, UNJEF, UNJS) and can produce both internal and external threads with the same tool
- Shank: MT7 Morse taper shank ensures a rigid, accurate fit on compatible CNC machines
- Coating & carbide grade: Sub-micron MT7 carbide with Titanium Aluminium Nitride multi-layer coating (ISO K10–K20) for outstanding wear resistance
- Flute design: Spiral flutes with 3–5 cutting edges for smooth cutting action and efficient chip evacuation
- Coolant delivery: Through-flutes coolant enhances lubrication and cooling, ideal for deep-hole threading
- Machining speed: Optimized for medium to high cutting speeds to shorten cycle times and improve productivity
- Depth capability: Short profile and flute geometry enable effective deep-hole threading with reduced cutting forces
- Material versatility: General-purpose performance across materials, including hardened workpieces up to 45 HRC
- Durability: Triple-coated finish extends tool life for demanding production runs
This mini thread mill is built to simplify threading tasks in challenging environments—from molds and tooling to automotive and aerospace applications. By covering multiple UNJ pitches and both internal and external threads in a single tool, it reduces tool changes, lowers inventory, and delivers repeatable, high-precision threads. The combination of a robust MT7 shank, TiAlN coating, and coolant-through design translates to cleaner holes, fewer deflections, and longer tool life—even at higher speeds and with harder materials.
| Thread Form | UNJ (UNJC UNJF UNJEF UNJS) |
| Size | 1/4 |
| Pitch | 28 |
| Diameter (D) | 5.1 |
| Flute Length (l) | 2.72 |
| Shank Diameter (d) | 8 |
| No of Flutes | 3 |
| Overall Length (L) | 64 |
| Thread Mill Style | Mini Type |
| Internal or External | Internal |
| Coating | MT7 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Carmex Carbide Thread Mills - UNJ Mini Type (MTS)
View full collection →You are viewing MTS08051C1628UNJMT8. Click any other SKU to view its full details.
| Product SKU | Size | Pitch | Flute Length | Reach | Overall Length | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| MTS06025C732UNJMT8 | No. 6 | 32 | 2.38 | 7.1 | 58 | £107.37 | 5 days | |
| MTS06033C1032UNJMT8 | No. 8 No. 10 | 32 | 2.38 | 10.5 | 58 | £107.37 | 5 days | |
| MTS06049C1620UNJMT8 | 1/4 | 20 | 3.81 | 16 | 58 | £107.37 | 5 days | |
| MTS08051C1628UNJMT8 Viewing | 1/4 | 28 | 2.72 | 16 | 64 | £143.12 | In Stock | |
| MTS08061C2018UNJMT8 | 5/16 9/16 | 18 | 4.23 | 20 | 64 | £143.12 | 5 days | |
| MTS08067C2024UNJMT8 | 5/16 3/8 | 24 | 3.18 | 20 | 64 | £143.12 | 5 days | |
| MTS08069C2416UNJMT8 | 3/8 | 16 | 4.76 | 24 | 64 | £143.12 | In Stock | |
| MTS08079C2514UNJMT8 | 7/16 | 14 | 5.44 | 25 | 64 | £143.12 | 5 days | |
| MTS0808C2820UNJMT8 | 7/16 | 20 | 3.81 | 28 | 64 | £143.12 | 5 days | |
| MTS10094C2713UNJMT8 | 1/2 | 13 | 5.86 | 27.5 | 73 | £185.20 | 5 days |
