Carmex Carbide Tiny Tool - Profiling 90° face - MUR - BMK Grade - 3.1mm Minimum Diameter x 10mm Reach

SKU:MUR3R0.05L10BMK

The Carmex Carbide Tiny Tool - Profiling 90° Face - MUR - BMK Grade is a compact precision cutting tool designed for small profiling and face-cutting tasks. With a 3.1 mm minimum diameter and 10 ... Read more ↓
P
M
K
N
S
H
ApplicationProfiling 90° face (MUR)
Minimum Diameter3.1
Reach (L1)10
Radius (R)0.05
Profile Max Depth (H)0.4
L39
View all specifications ↓
Download Cutting Data
£23.55
Prices shown ex. VAT
5 days estimated lead time — subject to availability
View Other Sizes →
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Klarna
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Speak to our team
01732 887334
Mon – Thurs 8:30 – 17:30 · Fri 8:30 – 16:30

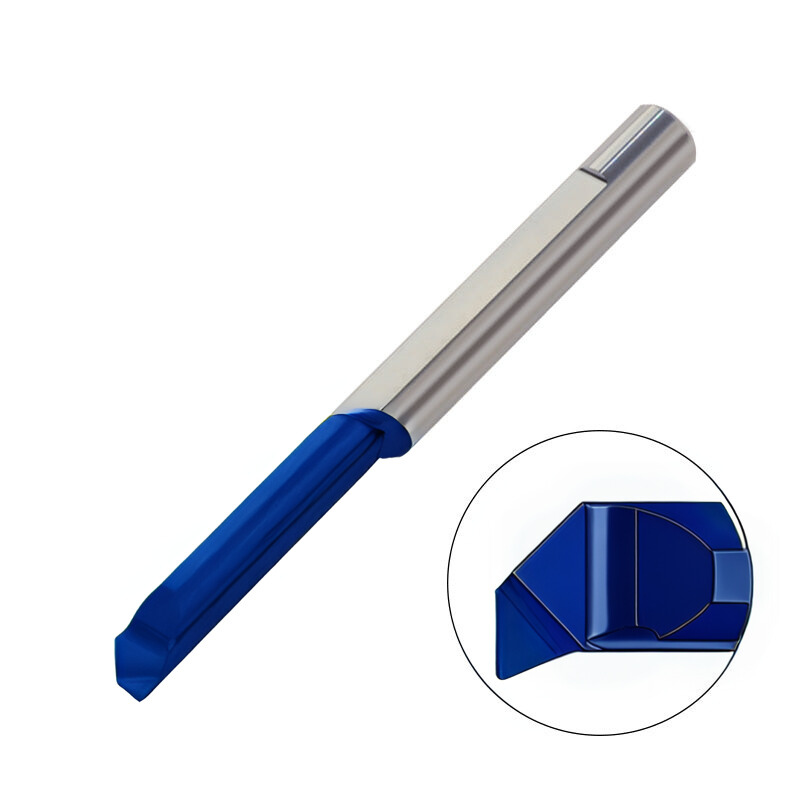

The Carmex Carbide Tiny Tool - Profiling 90° Face - MUR - BMK Grade is a compact precision cutting tool designed for small profiling and face-cutting tasks. With a 3.1 mm minimum diameter and 10 mm reach, it’s engineered to produce accurate, intricate profiles on the face of small workpieces.

Made from premium BMK-grade carbide, this tiny tool delivers exceptional durability, strength, and wear resistance for repeated use in demanding materials. Its compact size makes profiling and face cutting of small parts and components straightforward and reliable.

  • Precision profiling with a 90° face: Enables accurate, repeatable contours on the face of small workpieces for clean edges and consistent shapes.
  • BMK-grade carbide for durability: Provides long tool life with strong wear resistance, maintaining sharpness through repeated profiling tasks.
  • Compact size with 3.1 mm diameter and 10 mm reach: Fits into tight spaces and reaches deeper into small parts, reducing setup time and enabling detailed profiling where it’s needed.

This tool helps you achieve reliable, high-quality results in micro-machining workflows. Its combination of a tiny footprint and robust carbide keeps your profiling consistent, lowers downtime, and supports precise outcomes across a range of small-part applications.

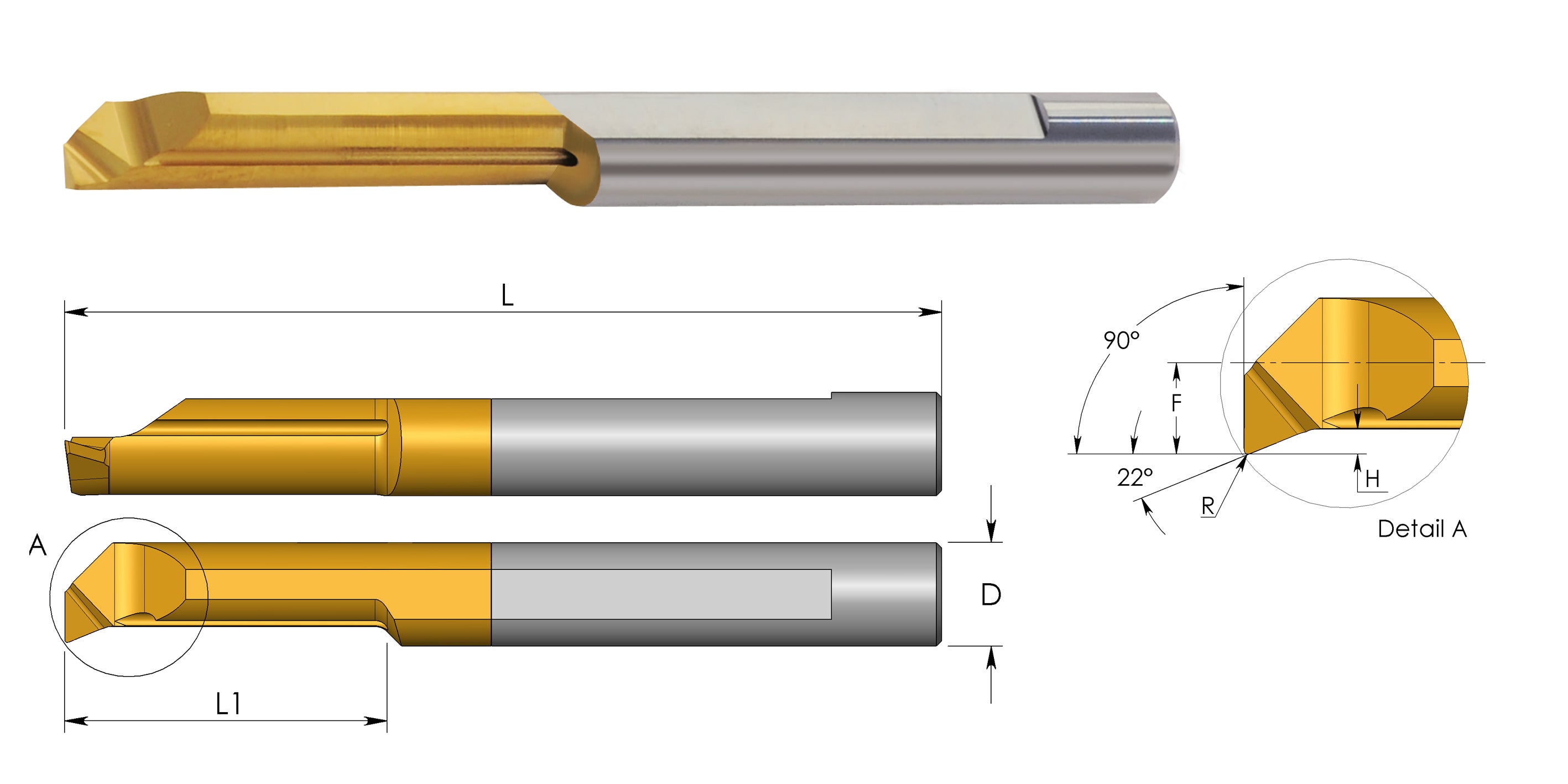

Application Profiling 90° face (MUR)
Minimum Diameter 3.1
Reach (L1) 10
Radius (R) 0.05
Profile Max Depth (H) 0.4
L 39
F 1.3
D 3.0
Grade BMK
Holder SIM****H3

What time are Protool open?

We are open Monday to Friday between 8:30am and 5pm.

Do you offer Free Next Day delivery?

Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.

We also offer the following:

  • Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
  • DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
  • Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
  • DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.

For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.

*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.

★★★★★
Nice experience staff are very helpful and interested...
Staff are very helpful and interested in providing a good service making us the customer feel valued.
Bill
★★★★★
first place we look
honest about stock and prices are competitive.
Phil
★★★★★
Polite and helpful
Staff are very helpful and polite.Goods that were in stock were dispatched same day and back orders were quick in coming through .
Graham
★★★★★
Buying experience
Phone requests are handled quickly and without any fuss. The website is easy to use and straightforward to order from. It’s especially helpful that it shows real‑time availability, so we don’t need to call to confirm whether parts will arrive.
Jeremy

Full Range: Carmex Carbide Tiny Tools - Profiling 90° Face - Grade BMK (MUR)

View full collection →

You are viewing MUR3R0.05L10BMK. Click any other SKU to view its full details.

Product SKUMinimum DiameterReachRadiusProfile Max DepthGradeHolderPriceStock Order
MUR3R0.05L10BMK Viewing3.1100.050.4BMKSIM****H3£23.55 5 days
MUR3R0.05L15BMK 3.1150.050.4BMKSIM****H3£25.58 In Stock
MUR4R0.1L10BMK 4.1100.10.5BMKSIM****H4£24.10 5 days
MUR4R0.1L15BMK 4.1150.10.5BMKSIM****H4£26.05 In Stock
MUR5R0.15L15BMK 5.1150.150.7BMKSIM****H5£26.63 In Stock
MUR5R0.15L22BMK 5.1220.150.7BMKSIM****H5£30.38 5 days
MUR6R0.15L15BMK 6.1150.150.9BMKSIM****H6£27.35 5 days
MUR6R0.15L22BMK 6.1220.150.9BMKSIM****H6£30.98 5 days
MUR8R0.2L22BMK 8.1220.21.1BMKSIM****H8£37.18 In Stock
MUL3R0.05L10BMK 3.1100.050.4BMKSIM****H3£19.90 5 days
MUL3R0.05L15BMK 3.1150.050.4BMKSIM****H3£21.63 5 days
MUL4R0.1L10BMK 4.1100.10.5BMKSIM****H4£24.10 5 days
MUL4R0.1L15BMK 4.1150.10.5BMKSIM****H4£22.03 5 days
MUL5R0.15L15BMK 5.1150.150.7BMKSIM****H5£22.50 5 days
MUL5R0.15L22BMK 5.1220.150.7BMKSIM****H5£30.38 5 days
MUL6R0.15L15BMK 6.1150.150.9BMKSIM****H6£23.13 5 days
MUL6R0.15L22BMK 6.1220.150.9BMKSIM****H6£30.98 5 days
MUL8R0.2L22BMK 8.1220.21.1BMKSIM****H8£37.18 5 days
