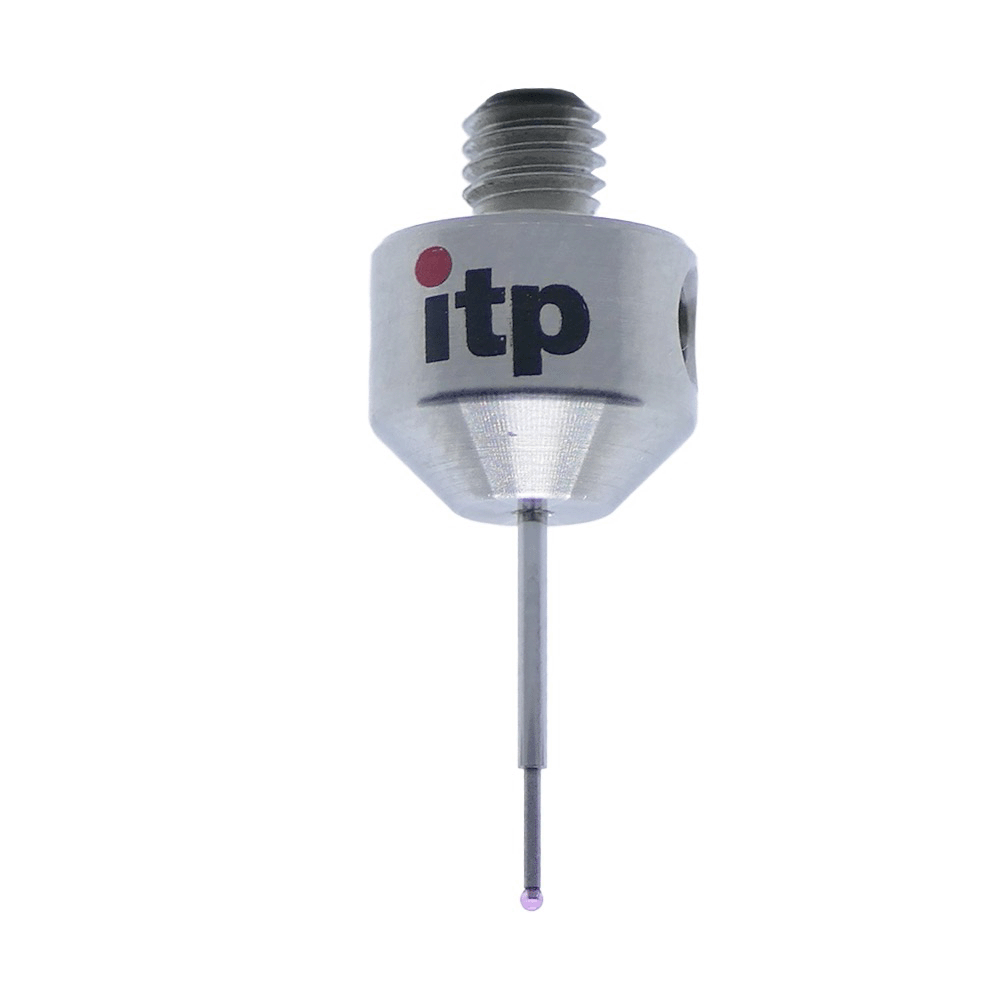

ITP Straight Styli - Type B - Ruby Ball - M5 Thread x 22mm Overall Length - NHM500511022

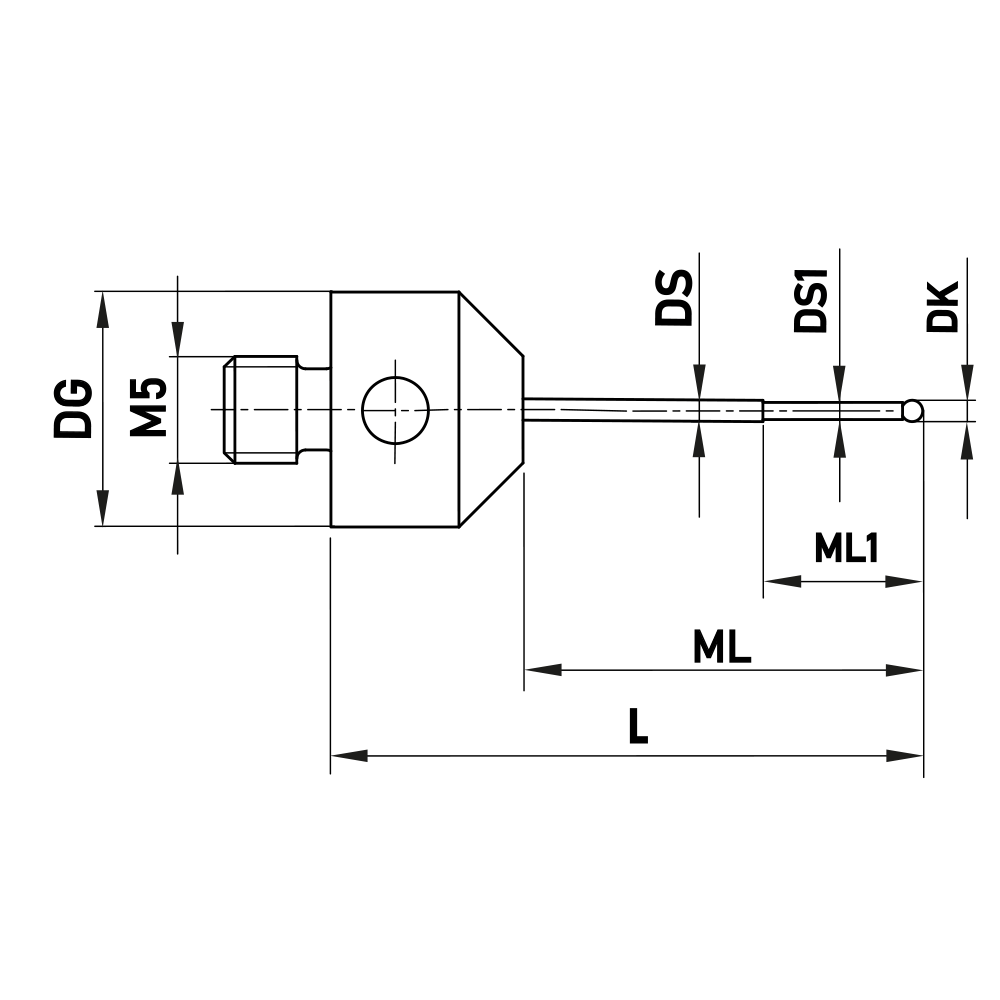

| Styli Type | Type B |
| Thread Size | M5 |
| Ball Diameter (DK) | 0.5 |
| Overall Length (L) | 22 |
Learn more about Klarna
Description
ITP Straight Stylus Type B with a ruby ball offers a precise, reliable probing solution for metrology workflows. Designed for technicians and inspectors who need repeatable, high-precision contact measurements on small features and in tight spaces.
- Material: Tungsten carbide stem delivers exceptional rigidity and dimensional stability under load.
- Ball Size Range: Ruby ball sizes from Ø0.2 mm to Ø1.5 mm to match feature size and contact force.
- Stem Configuration: Straight stem that can be single- or multi-stepped to suit measurement paths and access needs.
- Thread: M5 external thread for secure, compatibility-focused connections to standard probe heads.
- Overall Length: 22 mm overall length for a compact, low-profile probing setup.
- Intended Use: Straight stylus crafted for everyday standard metrology tasks and routine inspections.
The combination of a rigid tungsten carbide stem and a high-quality ruby ball minimizes deflection during contact, enhancing measurement accuracy and repeatability. Ruby balls are known for their hardness and wear resistance, helping extend stylus life in busy labs. This Type B configuration is designed to integrate smoothly with common probe systems, enabling quick swaps in measurement sequences without sacrificing reliability. If you need a different ball size, other options within the Ø0.2–Ø1.5 mm range are available, and sizes outside this range can be requested via configurator or by email.
Part Numbers
- Protool Part Number
- ITP-NHM500511022
- Brand
- ITP
- Category
- Styli
