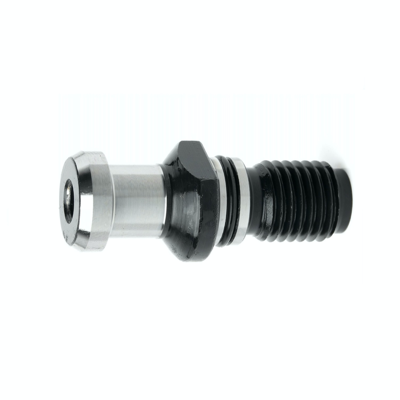

Omega Products DIN69872 Pull Stud - Hollow - With O-Ring - Through Coolant - ISO50

Omega Products DIN69872 Pull Stud - Hollow - With O-Ring - Through Coolant - ISO50

£11.01

OM30133

Availability: 116 in stock

The Omega Products DIN69872 Pull Studs - Hollow - With O-Ring - For Through Coolant are specifically designed to meet the DIN69872 standard and are ideal for applications requiring coolant flow through the tool holder. These pull studs feature a hollow design that allows for efficient coolant circulation, promoting effective cooling and chip evacuation during machining operations. The inclusion of an O-ring ensures a secure and reliable seal, preventing coolant leakage and maintaining a clean work environment.

Taper ISO50
Thread M24
Largest Stud Diameter 36
D1 25
D3 28
D4 21
Overall Length 74
L1 34
L2 25
C 30


The Omega Products DIN69872 Pull Studs - Hollow - With O-Ring - For Through Coolant are specifically designed to meet the DIN69872 standard and are ideal for applications requiring coolant flow through the tool holder. These pull studs feature a hollow design that allows for efficient coolant circulation, promoting effective cooling and chip evacuation during machining operations. The inclusion of an O-ring ensures a secure and reliable seal, preventing coolant leakage and maintaining a clean work environment.

Taper ISO50
Thread M24
Largest Stud Diameter 36
D1 25
D3 28
D4 21
Overall Length 74
L1 34
L2 25
C 30
