Omega Products DIN69872 Pull Stud - Solid - With O-Ring - ISO40

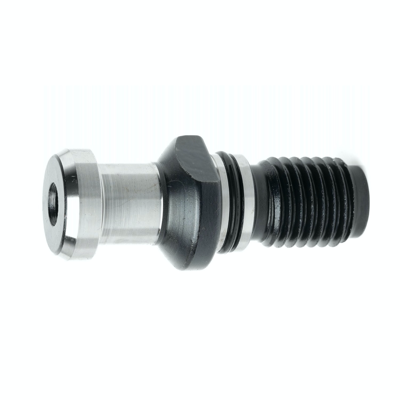

Omega Products DIN69872 Pull Stud - Solid - With O-Ring - ISO40

£6.96

OM30157

Availability: 23 in stock

The Omega Products DIN69872 Pull Stud - Solid - With O-Ring is a high-quality and reliable tool holding component designed to meet the DIN69872 standard. Featuring a solid construction, this pull stud ensures a secure and stable connection between the tool holder and the machine spindle. The inclusion of an O-ring provides additional sealing and enhances coolant flow during machining operations. The O-ring also helps to prevent the ingress of coolant, chips, and debris into the tool holder, ensuring smooth and efficient machining processes.

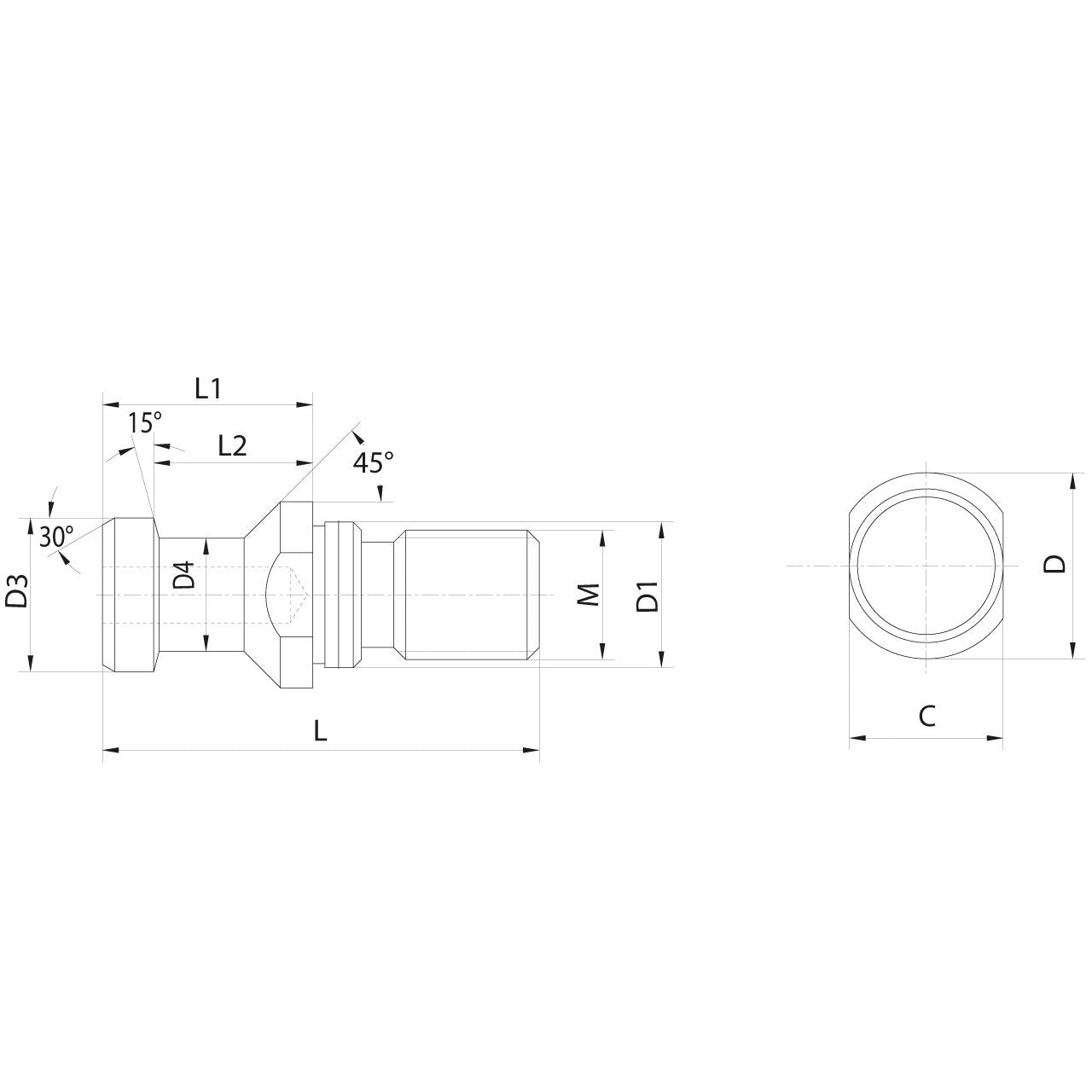

Taper ISO40
Thread M16
Largest Stud Diameter 23
D1 17
D3 19
D4 14
Overall Length 54
L1 26
L2 20
C 19


The Omega Products DIN69872 Pull Stud - Solid - With O-Ring is a high-quality and reliable tool holding component designed to meet the DIN69872 standard. Featuring a solid construction, this pull stud ensures a secure and stable connection between the tool holder and the machine spindle. The inclusion of an O-ring provides additional sealing and enhances coolant flow during machining operations. The O-ring also helps to prevent the ingress of coolant, chips, and debris into the tool holder, ensuring smooth and efficient machining processes.

Taper ISO40
Thread M16
Largest Stud Diameter 23
D1 17
D3 19
D4 14
Overall Length 54
L1 26
L2 20
C 19
