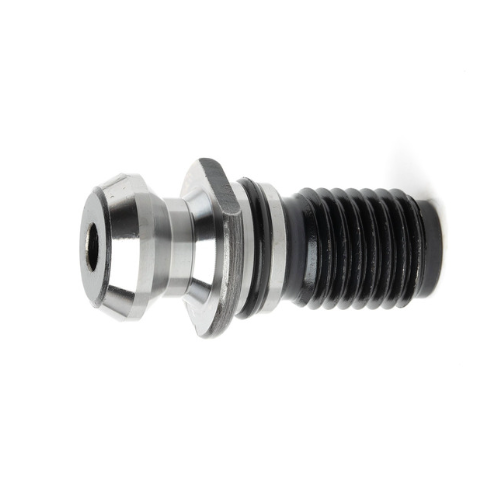

Omega Products ISO 7388/2-A Pull Studs - Hollow - With O-Ring - For Through Coolant - ISO50

Omega Products ISO 7388/2-A Pull Studs - Hollow - With O-Ring - For Through Coolant - ISO50

£10.45

OM30159

Availability: Next Day delivery subject to availability

The Omega Products ISO 7388/2-A Pull Studs - Hollow - With O-Ring - For Through Coolant are designed to provide secure and reliable clamping for ISO 7388/2-A tool holders in machining operations. These pull studs feature a hollow design, allowing coolant to flow through the centre, facilitating efficient chip evacuation and cooling during the cutting process. The inclusion of an O-ring ensures a tight and leak-free connection between the pull stud and the tool holder, effectively sealing off the coolant passage and preventing any leakage. This feature is particularly useful when utilizing through-coolant systems, as it helps to maintain the integrity of the coolant supply and enhances the overall performance of the machining operation. The pull studs are precision-engineered to meet the ISO 7388/2-A standard, guaranteeing compatibility and optimal performance with ISO tool holders.

Taper ISO50
Thread M24
Largest Stud Diameter 37
D1 25
D3 29.1
D4 19.6
Overall Length 65.5
L1 25.5
L2 17.9
C 30


The Omega Products ISO 7388/2-A Pull Studs - Hollow - With O-Ring - For Through Coolant are designed to provide secure and reliable clamping for ISO 7388/2-A tool holders in machining operations. These pull studs feature a hollow design, allowing coolant to flow through the centre, facilitating efficient chip evacuation and cooling during the cutting process. The inclusion of an O-ring ensures a tight and leak-free connection between the pull stud and the tool holder, effectively sealing off the coolant passage and preventing any leakage. This feature is particularly useful when utilizing through-coolant systems, as it helps to maintain the integrity of the coolant supply and enhances the overall performance of the machining operation. The pull studs are precision-engineered to meet the ISO 7388/2-A standard, guaranteeing compatibility and optimal performance with ISO tool holders.

Taper ISO50
Thread M24
Largest Stud Diameter 37
D1 25
D3 29.1
D4 19.6
Overall Length 65.5
L1 25.5
L2 17.9
C 30
