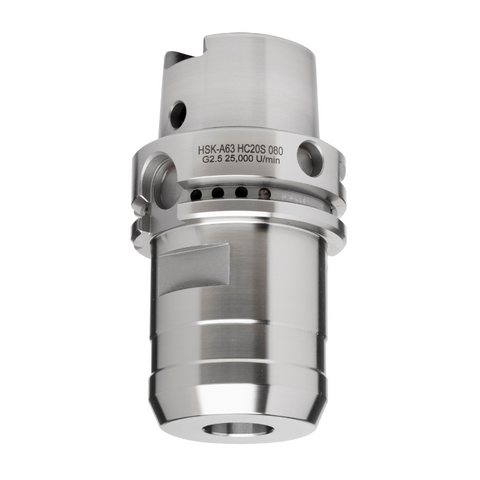

Omega Products HSK63A Hydraulic Expansion Chuck - G2.5 - 25,000RPM - 20mm - 80mm Gauge Length - Form AD
| Taper | HSK63A |
| Collet Size | 20 |
| Nose Diameter | 50 |
| G | M16 |
| L1 | 42 |
| Gauge Length | 80 |
Learn more about Klarna
The Omega Products HSK63A Hydraulic Expansion Chuck is a precision toolholder engineered for demanding metalworking. With a G2.5 spindle interface and speeds up to 25,000 RPM, it delivers stable, concentric toolholding at high cutting speeds. Its 80mm gauge length supports reliable setup and repeatable performance for a wide range of cutting tools.
The hydraulic expansion mechanism provides consistent gripping force for superior runout control, ensuring tools stay centered under heavy milling loads. An integrated coolant supply aids cooling and chip evacuation, helping maintain surface finish and extend tool life. Built with premium construction, it arrives ready to use with a premium hex key for fast, confident tool changes.
- Hydraulic expansion for precise grip: Delivers uniform clamping force and excellent concentricity, reducing runout and improving accuracy during high-speed machining.
- Integrated coolant and chip management: Active cooling and flushing support longer tool life and better surface finish in demanding milling operations.
- High-speed readiness with easy setup: Designed for up to 25,000 RPM with a G2.5 interface and an 80mm gauge length, providing stable engagement and quick tool changes using the included premium hex key.
This combination delivers repeatable, reliable performance across a range of applications—from precision milling to high-speed production—helping you minimize downtime, improve part quality, and maintain consistent results across shifts and operators.
| Taper | HSK63A |
| Collet Size | 20 |
| Nose Diameter | 50 |
| G | M16 |
| L1 | 42 |
| Gauge Length | 80 |
| Form | AD |
| Balance | G2.5@25000RPM |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Omega Products HSK63A Hydraulic Expansion Chucks - G2.5 - 25,000RPM
View full collection →You are viewing OM32207. Click any other SKU to view its full details.
| Product SKU | Taper | Collet Size | Nose Diameter | G | L1 | Gauge Length | Form | Balance | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|---|---|
| OM32206 | HSK63A | 12 | 42 | M10 | 40 | 80 | AD | G2.5@25000RPM | £199.50 | In Stock | |
| OM32208 | HSK63A | 12 | 42 | M10 | 40 | 80 | AD/B | G2.5@25000RPM | £269.15 | In Stock | |
| OM32207 Viewing | HSK63A | 20 | 50 | M16 | 42 | 80 | AD | G2.5@25000RPM | £199.50 | In Stock | |
| OM32209 | HSK63A | 20 | 50 | M16 | 42 | 80 | AD/B | G2.5@25000RPM | £269.15 | In Stock |
