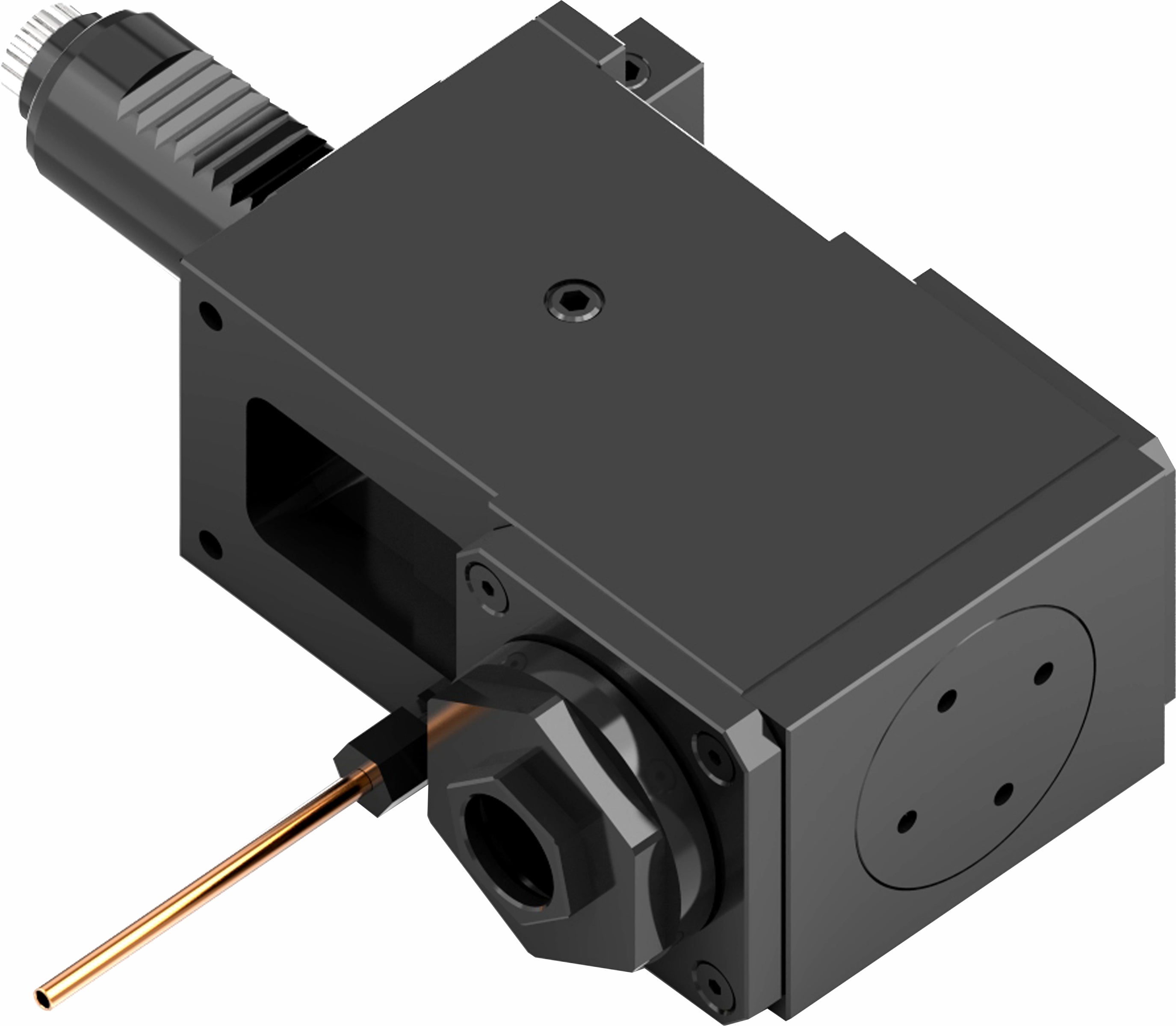

Omega Products ER25 Axial Tool Head - Radial Disc - Single End - Double Serration - DIN5480
OM33463
Availability: Next Day delivery subject to availability
Omega Products Axial Tool Heads - Radial Disc - Single End - Double Serration - DIN5480 are advanced cutting tools designed to deliver exceptional performance in precision machining applications. These tool heads feature a unique radial disc design coupled with double serrations, providing enhanced stability and accuracy during cutting operations. The DIN5480 standard ensures compatibility with a wide range of machines and tooling systems, making them suitable for various machining setups. The single-end configuration simplifies tool changes and improves accessibility, allowing operators to work efficiently in tight spaces. The double serration design enhances tool grip and reduces vibration, resulting in improved surface finish and extended tool life.

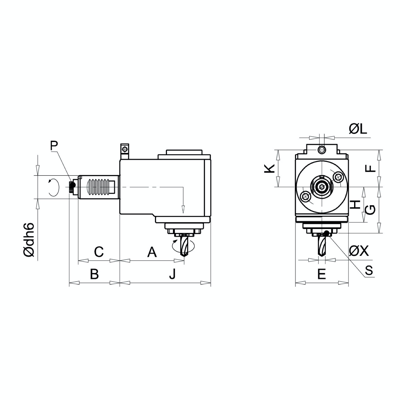

| Type | Axial Tool Head For Radial Disc Single End Double Serration |
| dh6 | 30 |
| A | 100 |
| B | 67 |
| C | 55 |
| E | 62 |
| F | 49.5 |
| G | 64.5 |
| H | 45.5 |
| J | 132 |
| K | 48 |
| L | 8 |
| X | 1-16 |
| Nmax RPM | 6000 |
| S | ER25 |
| T Nm | 40 |
| P | W16x0.8x30°x18-9b |
Omega Products Axial Tool Heads - Radial Disc - Single End - Double Serration - DIN5480 are advanced cutting tools designed to deliver exceptional performance in precision machining applications. These tool heads feature a unique radial disc design coupled with double serrations, providing enhanced stability and accuracy during cutting operations. The DIN5480 standard ensures compatibility with a wide range of machines and tooling systems, making them suitable for various machining setups. The single-end configuration simplifies tool changes and improves accessibility, allowing operators to work efficiently in tight spaces. The double serration design enhances tool grip and reduces vibration, resulting in improved surface finish and extended tool life.
| Type | Axial Tool Head For Radial Disc Single End Double Serration |
| dh6 | 30 |
| A | 100 |
| B | 67 |
| C | 55 |
| E | 62 |
| F | 49.5 |
| G | 64.5 |
| H | 45.5 |
| J | 132 |
| K | 48 |
| L | 8 |
| X | 1-16 |
| Nmax RPM | 6000 |
| S | ER25 |
| T Nm | 40 |
| P | W16x0.8x30°x18-9b |
