Omega Products BT50 Shrink Fit Chuck - G2.5 - 25,000 RPM - 20mm - 160mm Long

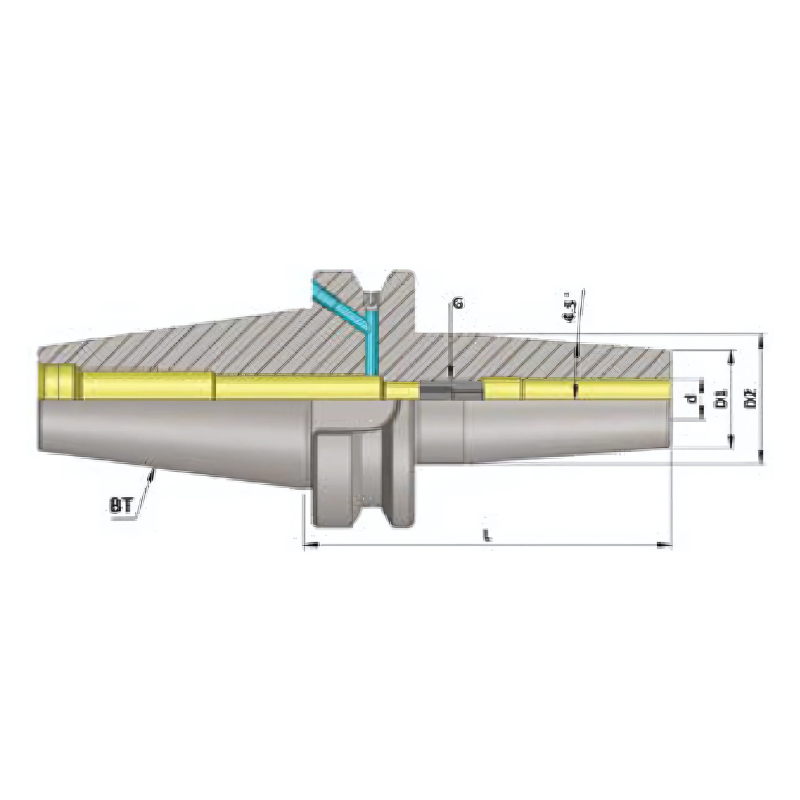

| Taper | BT50 |
| Clamping Diameter (d) | 20 |
| D1 | 33 |
| D2 | 40 |
| G | M16 |
| Gauge Length (L) | 160 |
Learn more about Klarna
Meet the Omega BT50 Shrink Fit Chuck—an exacting tool-holding solution for high-speed machining. It’s built for CNC mills and turning centers that demand tight concentricity and dependable retention, delivering reliable performance across demanding applications.
- G2.5 Precision Concentricity: Excellent tool concentricity and minimal runout ensure accurate, repeatable results even at high speeds.
- High-Speed Capability (Up to 25,000 RPM): Maintains precision and stability at demanding speeds, enabling efficient cutting and consistent surface finishes.
- Secure Shrink-Fit Grip with Heat Expansion: Shrink-fit design uses heat to firmly grip 20 mm tool shanks, providing stable retention and effective vibration damping to reduce deflection.
Designed for 20 mm shanks and a thoughtful 160 mm overall length, this chuck combines robust stability with smooth, vibration-damped operation to help you finish parts to spec on time. It reduces tool deflection, improves surface finish, and minimizes downtime from tool changes, giving you confidence to push the tempo on your most challenging machining jobs.
| Taper | BT50 |
| Clamping Diameter (d) | 20 |
| D1 | 33 |
| D2 | 40 |
| G | M16 |
| Gauge Length (L) | 160 |
| Balance | G2.5@25000RPM |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Omega Products BT50 Shrink Fit Chucks - G2.5 - 25,000 RPM
View full collection →You are viewing OM33732. Click any other SKU to view its full details.
| Product SKU | Clamping Diameter (d) | D1 | D2 | G | Guage Length (L) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| OM33700 | 3 | 10 | 20 | - | 100 | £161.53 | In Stock | |
| OM33701 | 3 | 10 | 20 | - | 120 | £174.62 | In Stock | |
| OM33702 | 3 | 10 | 20 | - | 160 | £194.27 | Next Day | |
| OM33703 | 4 | 15 | 22 | - | 100 | £157.16 | In Stock | |
| OM33704 | 4 | 15 | 22 | - | 120 | £172.44 | In Stock | |
| OM33705 | 4 | 15 | 22 | - | 160 | £188.81 | In Stock | |
| OM33706 | 5 | 15 | 22 | - | 100 | £157.16 | In Stock | |
| OM33707 | 5 | 15 | 22 | - | 120 | £172.44 | In Stock | |
| OM33708 | 5 | 15 | 22 | - | 160 | £188.81 | Next Day | |
| OM33709 | 6 | 21 | 27 | M5 | 100 | £145.16 | In Stock | |
| OM33710 | 6 | 21 | 27 | M5 | 120 | £157.16 | In Stock | |
| OM33711 | 6 | 21 | 27 | M5 | 160 | £176.81 | In Stock | |
| OM33712 | 8 | 21 | 27 | M6 | 100 | £145.16 | In Stock | |
| OM33713 | 8 | 21 | 27 | M6 | 120 | £157.16 | In Stock | |
| OM33714 | 8 | 21 | 27 | M6 | 160 | £176.81 | In Stock | |
| OM33715 | 10 | 24 | 31 | M8 | 100 | £145.16 | In Stock | |
| OM33716 | 10 | 24 | 31 | M8 | 120 | £157.16 | In Stock | |
| OM33717 | 10 | 24 | 31 | M8 | 160 | £176.81 | In Stock | |
| OM33718 | 12 | 24 | 31 | M10 | 100 | £145.16 | In Stock | |
| OM33719 | 12 | 24 | 31 | M10 | 120 | £157.16 | In Stock | |
| OM33720 | 12 | 24 | 31 | M10 | 160 | £176.81 | In Stock | |
| OM33721 | 14 | 27 | 34 | M10 | 100 | £145.16 | Next Day | |
| OM33722 | 14 | 27 | 34 | M10 | 120 | £157.16 | In Stock | |
| OM33723 | 14 | 27 | 34 | M10 | 160 | £176.81 | In Stock | |
| OM33724 | 16 | 27 | 34 | M12 | 100 | £145.16 | In Stock | |
| OM33725 | 16 | 27 | 34 | M12 | 120 | £157.16 | In Stock | |
| OM33726 | 16 | 27 | 34 | M12 | 160 | £176.81 | In Stock | |
| OM33727 | 18 | 33 | 40 | M12 | 100 | £145.16 | Next Day | |
| OM33728 | 18 | 33 | 40 | M12 | 120 | £157.16 | Next Day | |
| OM33729 | 18 | 33 | 40 | M12 | 160 | £176.81 | Next Day | |
| OM33730 | 20 | 33 | 40 | M16 | 100 | £145.16 | In Stock | |
| OM33731 | 20 | 33 | 40 | M16 | 120 | £157.16 | In Stock | |
| OM33732 Viewing | 20 | 33 | 40 | M16 | 160 | £176.81 | Next Day | |
| OM33733 | 25 | 44 | 53 | M16 | 110 | £145.16 | Next Day | |
| OM33734 | 25 | 44 | 53 | M16 | 120 | £157.16 | In Stock | |
| OM33735 | 25 | 44 | 53 | M16 | 160 | £176.81 | Next Day | |
| OM33736 | 32 | 44 | 53 | M16 | 110 | £145.16 | Next Day | |
| OM33737 | 32 | 44 | 53 | M16 | 120 | £157.16 | In Stock | |
| OM33738 | 32 | 44 | 53 | M16 | 160 | £176.81 | Next Day |
