Omega Products Dual Contact DCBT40 End Mill Holder - G2.5 - 25,000RPM - 16mm Bore Size - 63mm Gauge Length

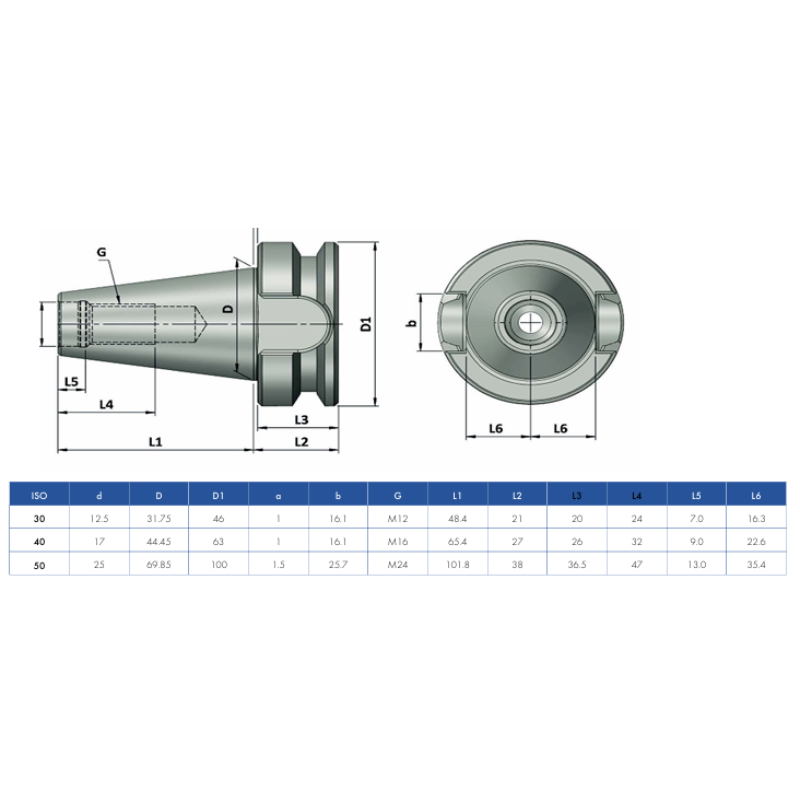

| Taper | DCBT40 |
| Bore Size | 16 |
| D1 | 48 |
| G | M14 |
| Gauge Length (L) | 63 |
| Balance | G2.5@25000RPM |
Learn more about Klarna

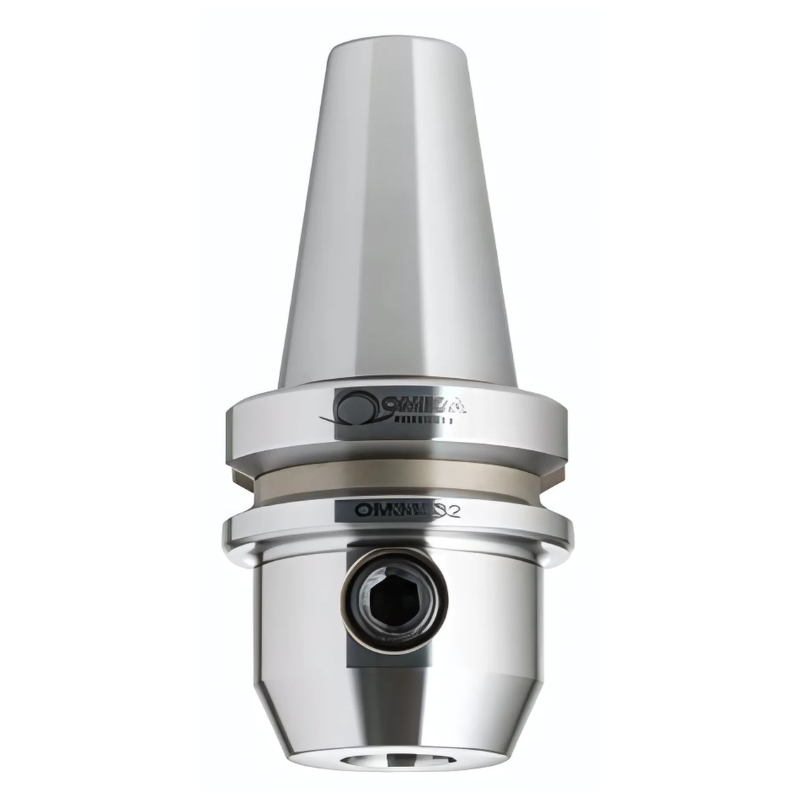

The Omega Dual Contact DCBT40 End Mill Holder is a precision toolholding solution engineered for CNC machining. Designed for engineers, machinists, and shops that demand stable, repeatable milling of straight‑shank end mills, it features a 16 mm bore and a 63 mm gauge length to deliver a compact yet rigid interface that handles high speeds up to 25,000 RPM.
With Weldon-flat ER compatibility and engineering that meets Form AD standards, this holder uses both face and taper contact to maximize rigidity. Balanced to G2.5 at 25,000 RPM, it delivers smooth, high‑speed performance for demanding applications where reliability and accuracy matter.

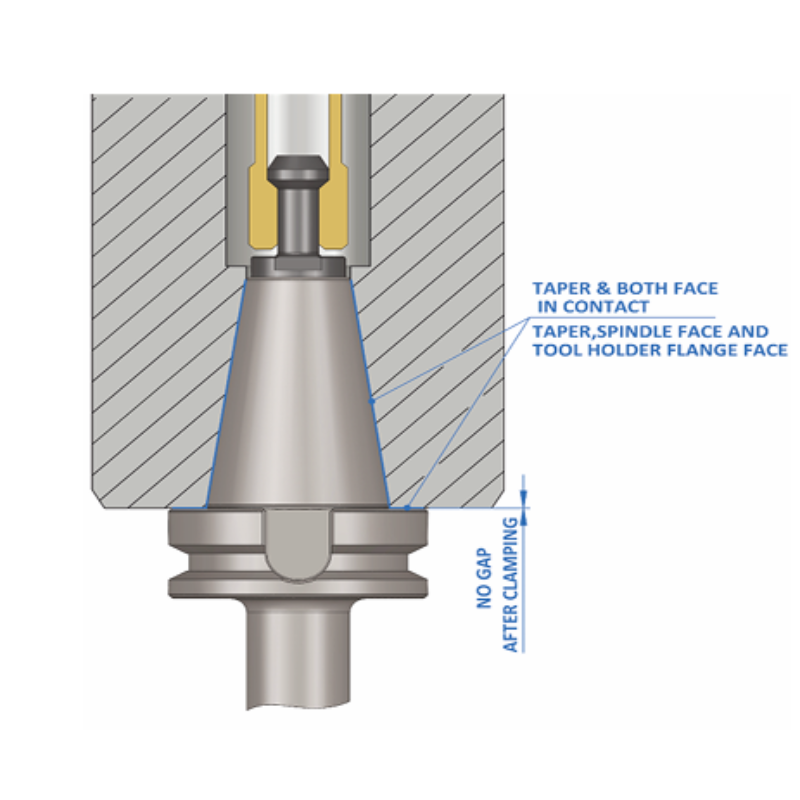

- Dual-Contact Rigidity for Superior Tool Stability: Face and taper contact lock the tool firmly in place, reducing runout and chatter for consistent results across passes.
- High-Speed Balance for 25,000 RPM: G2.5 balance at high speed and Form AD compliant design minimize vibration, supporting precision cuts and better surface finish.

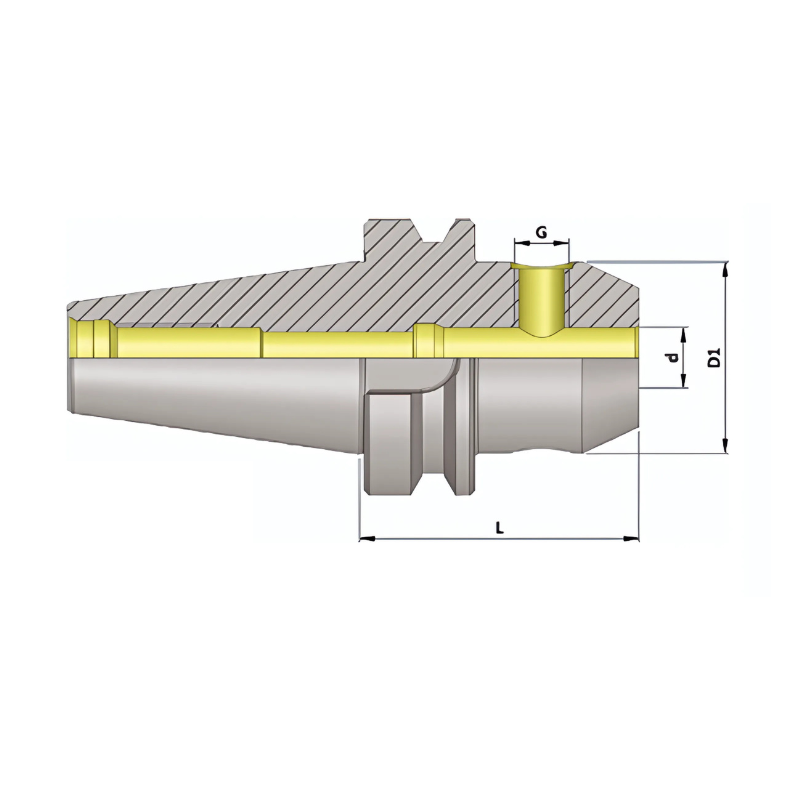

- Weldon-Flat Mounting for 16 mm Tools: Clamps straight‑shank end mills with Weldon flats securely, with a predictable 63 mm gauge length for repeatable tooling setup.
This holder translates into tangible workflow benefits: reliable tool seating under heavy loads, reduced rework from runout, and faster tool changes for improved uptime. The combination of dual-contact rigidity, precise high‑speed balance, and Weldon-flat compatibility helps you achieve stable, accurate milling outcomes across a wide range of CNC applications.
| Taper | DCBT40 |
| Bore Size | 16 |
| D1 | 48 |
| G | M14 |
| Gauge Length (L) | 63 |
| Balance | G2.5@25000RPM |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: DCBT40 Dual Contact End Mill Holders
View full collection →You are viewing OM34626. Click any other SKU to view its full details.
| Product SKU | Bore Size | D1 | G | Guage Length (L) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|
| OM34611 | 6 | 25 | M6 | 50 | £49.09 | In Stock | |
| OM34614 | 8 | 28 | M8 | 50 | £47.12 | In Stock | |
| OM34617 | 10 | 35 | M10 | 63 | £47.12 | In Stock | |
| OM34620 | 12 | 42 | M12 | 63 | £47.13 | In Stock | |
| OM34626 Viewing | 16 | 48 | M14 | 63 | £47.13 | In Stock | |
| OM34629 | 18 | 50 | M14 | 63 | £47.13 | Next Day | |
| OM34632 | 20 | 52 | M16 | 63 | £47.13 | In Stock | |
| OM34635 | 25 | 65 | M18x2 | 90 | £67.92 | In Stock | |
| OM34637 | 32 | 72 | M20x2 | 100 | £64.64 | Next Day | |
| OM34639 | 40 | 80 | M20x2 | 105 | £73.71 | Next Day |
