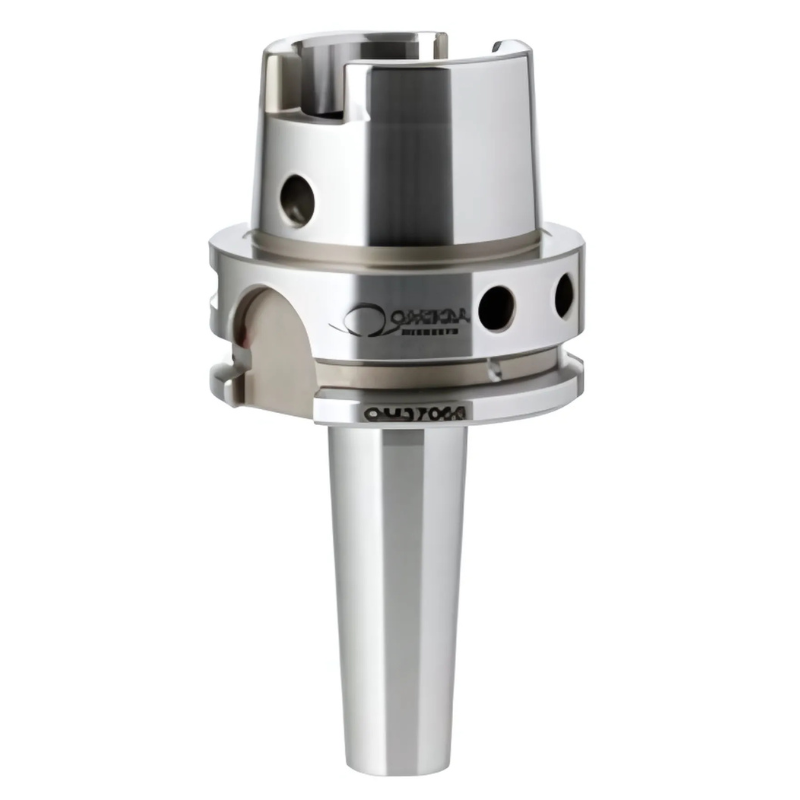

Omega Products HSK63A Slim Shrink Fit Chuck - G2.5 - 25,000RPM - 8mm Clamping Diameter - 160mm Gauge Length

The Omega HSK63A Slim Shrink Fit Chuck is a precision toolholding solution designed for high-speed milling and demanding machining environments. It uses shrink-fit technology to deliver ultra-true running and a compact profile that minimizes interference in tight workspaces.

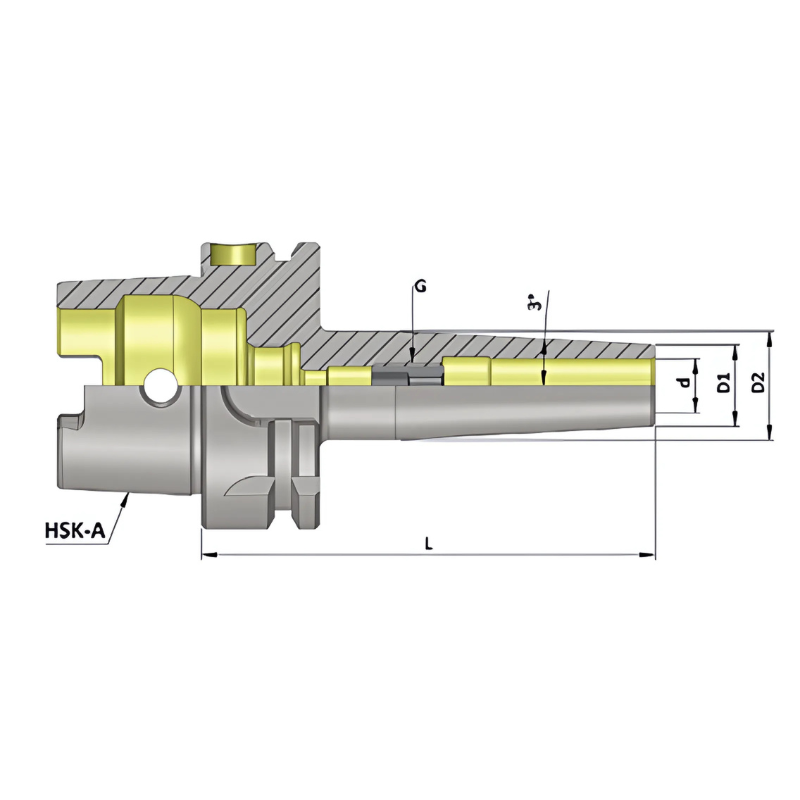

Designed for engineers, machinists, and hobbyists who need reliable toolholding at up to 25,000 RPM, this chuck combines minimal runout with strong clamping. Featuring an HSK63A interface, an 8 mm clamping diameter, and a 160 mm gauge length, it supports a wide range of tooling while delivering stable seating and long tool life.

• Slim, accessible design for tight workspaces: The slim profile and generous clearance improve reach into tight pockets and complex contours, while preserving ultra-low runout for accurate results.
• Precise, secure toolholding with minimal runout: Shrink-fit clamping delivers uniform grip around the tool shank for repeatable accuracy and longer tool life at high speeds.
• Stable, high-speed performance: Balanced to G2.5 at 25,000 RPM to minimize vibration and improve surface finish, with an 8 mm clamping diameter and 160 mm gauge length that support a broad range of tooling with predictable seating.

This combination gives you reliable, repeatable results in demanding applications. Expect tighter tolerances, smoother finishes, and faster part throughput as setup times drop and tool wear is minimized. The chuck’s slim geometry, robust clamp, and precise balance work together to improve workflow, reduce downtime, and extend tool life in high-speed machining environments.
