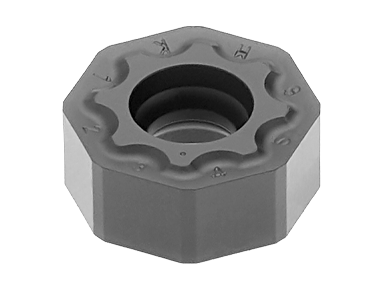

Palbit Indexable Milling Insert - for Face Milling - ONKX 0606 ANEN-MK PH5705

Palbit Indexable Milling Insert - for Face Milling - ONKX 0606 ANEN-MK PH5705

SKU:PAL-1112291L5

The Palbit ONKX 0606 ANEN-MK PH5705 indexable milling insert is engineered for face milling, delivering excellent surface finishes and reliable tool life. It’s well-suited for engineers, machine s... Read more ↓
K
ISO CodeONKX 0606 ANEN-MK PH5705
Insert Size and ShapeON0606
Product LinePLUS 91245
GradePH5705
HandNeutral
Cutting Edge Count (CEDC)16
View all specifications ↓
£17.55
Prices shown ex. VAT
5 days estimated lead time — subject to availability
View Other Sizes →
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Klarna
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Speak to our team
01732 887334
Mon – Thurs 8:30 – 17:30 · Fri 8:30 – 16:30

The Palbit ONKX 0606 ANEN-MK PH5705 indexable milling insert is engineered for face milling, delivering excellent surface finishes and reliable tool life. It’s well-suited for engineers, machine shops, and technicians seeking consistent, flat faces across a range of materials.

With advanced cutting geometry and a tough carbide body, the ONKX insert maintains smooth chip flow and stable machining even under demanding production conditions.

  • Excellent surface finish and long tool life: Designed to deliver pristine finishes on milled faces while resisting wear, so you can run longer between tool changes.
  • Advanced cutting geometry for smooth chip flow: Optimized geometry reduces built-up edge and promotes efficient chip evacuation for cooler, cleaner cuts.
  • Versatile performance across multiple materials: Rugged carbide construction and geometry provide reliable results on a wide range of workpieces.

By choosing the Palbit ONKX 0606 ANEN-MK PH5705, you gain a milling solution that supports steady productivity, reduces rework, and consistently delivers high-quality faces. The combination of durable construction, stable cutting action, and quick insert changes helps your operation maintain momentum from setup to finished part.

ISO Code ONKX 0606 ANEN-MK PH5705
Insert Size and Shape ON0606
Product Line PLUS 91245
Grade PH5705
Hand Neutral
Cutting Edge Count (CEDC) 16
Operation Type (CTPT) Face Milling
Tolerance Class Insert (TCINS) K
Insert Shape Code (SC) O
Inscribed Circle Diameter (IC) 6
Insert Thickness (S) 6
Corner Radius (RE) 0.8
Cutting Edge Effective Length (LE) 6.2
Fixing Hole Diameter (D1) 6
Chip Breaker (CBMD) MK
Wiper Edge Length (BS) 1
