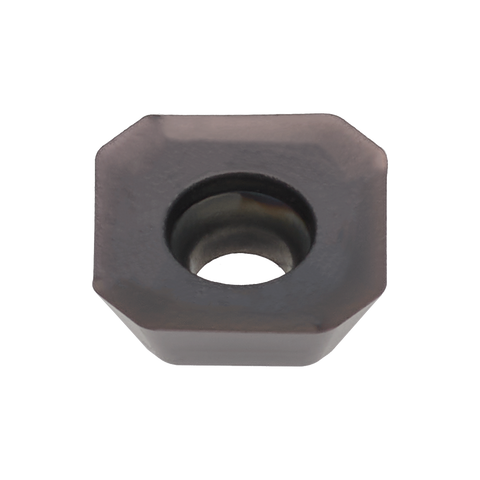

Palbit Indexable Milling Insert - for Face Milling - SFHX 100410 AFSR-LP PHP920
| ISO Code | SFHX 100410 AFSR-LP PHP920 |
| Insert Size and Shape | SF1004 |
| Product Line | LINEPRO 57045 |
| Grade | PHP920 |
| Hand | Right |
| Cutting Edge Count (CEDC) | 8 |
Learn more about Klarna
The Palbit SFHX indexable milling insert is engineered for precision face milling, delivering superior surface finishes and consistent performance. Constructed from high-quality carbide with optimized cutting geometry, the SFHX insert supports efficient chip evacuation and long tool life across a variety of materials.
- Precision face milling for superior finishes: Engineered to deliver smooth, consistent surface quality on a range of materials, supporting tight tolerances and repeatable results.
- Robust carbide with optimized cutting geometry: Built from high-quality carbide and tuned geometry to promote durability and reliable cutting performance, helping extend tool life.
- Efficient chip evacuation for reliable operation: The design promotes smooth chip flow, helping maintain consistent performance across a variety of materials.
With the Palbit SFHX insert, you gain consistent, high-quality face milling results you can rely on run after run. The carbide construction and optimized geometry deliver durability and long tool life across a variety of materials, reducing the need for frequent replacements. Efficient chip evacuation keeps your milling operation moving smoothly, enhancing productivity and helping you meet tighter schedules with fewer interruptions.
| ISO Code | SFHX 100410 AFSR-LP PHP920 |
| Insert Size and Shape | SF1004 |
| Product Line | LINEPRO 57045 |
| Grade | PHP920 |
| Hand | Right |
| Cutting Edge Count (CEDC) | 8 |
| Operation Type (CTPT) | Face Milling |
| Tolerance Class Insert (TCINS) | H |
| Insert Shape Code (SC) | S |
| Inscribed Circle Diameter (IC) | 10.1 |
| Insert Thickness (S) | 3.72 |
| Corner Radius (RE) | 1 |
| Cutting Edge Effective Length (LE) | 6.5 |
| Fixing Hole Diameter (D1) | 3.4 |
| Chip Breaker (CBMD) | LP |
| Wiper Edge Length (BS) | 2.5 |
