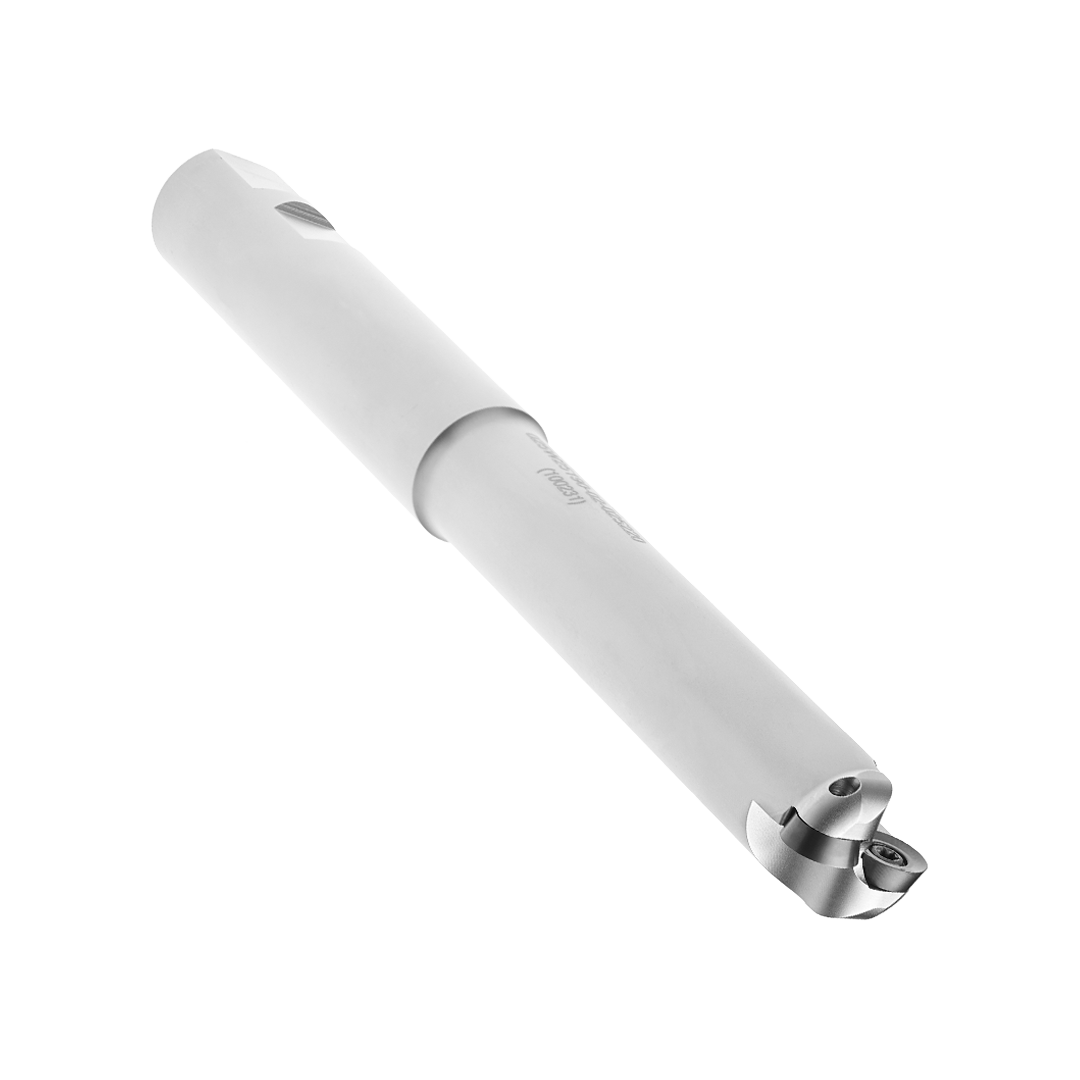

Palbit Weldon Shank Holder - For RD0702 Inserts - 8mm Cutter Diameter - 181047100
| Insert Size & Shape | RD0702 |
| Depth of Cut Maximum (APMX) | 3.5 |
| Cutting Item Count (CICT) | 2 |
| Connection Diameter (DCONMS) | 25 |
| Adaptive Interface Machine Direction | Weldon Shank |
| Tool Cutting Edge Angle (KAPR) | 90 |
Learn more about Klarna
Designed for high-precision grooving and parting, the Palbit Weldon Shank Holder for RD0702 inserts delivers secure clamping and exceptional rigidity. With an 8 mm cutter diameter, this holder supports consistent, repeatable cuts in demanding CNC applications.
- Inserts compatibility: Optimized for RD0702 inserts to ensure secure seating and reliable performance.
- Clamp design: Weldon-style shank provides robust, stable clamping with minimal runout for precise machining.
- Cutter diameter: 8 mm cutter diameter for consistent engagement and predictable chip load.
- Chip control: Geometry and clamping contribute to efficient chip evacuation and cleaner finishes.
- Durability: Built to endure the rigors of high-volume CNC environments, supporting extended tool life.
With secure clamping and rigid construction, this holder minimizes tool deflection during grooving and parting, delivering accurate diameters and smooth surface finishes. Efficient chip control helps reduce heat and wear, extending tool life and minimizing downtime in precision production environments. Trusted by engineers and machinists, the Palbit Weldon Shank Holder provides reliable, consistent performance for demanding CNC machining projects.
| Insert Size & Shape | RD0702 |
| Depth of Cut Maximum (APMX) | 3.5 |
| Cutting Item Count (CICT) | 2 |
| Connection Diameter (DCONMS) | 25 |
| Adaptive Interface Machine Direction | Weldon Shank |
| Tool Cutting Edge Angle (KAPR) | 90 |
| Cutting Diameter (DC) | 8 |
| Torque (TQ) | 1.2 |
| Maximum Cutting Diameter (DCX) | 15 |
| Functional Length (LF) | 220 |
| Usable Length (LU) | 40 |
| Axial Rake Angel (GAMP) | 0 |
| Rdial Rake Angle (GAMF) | 0 |
