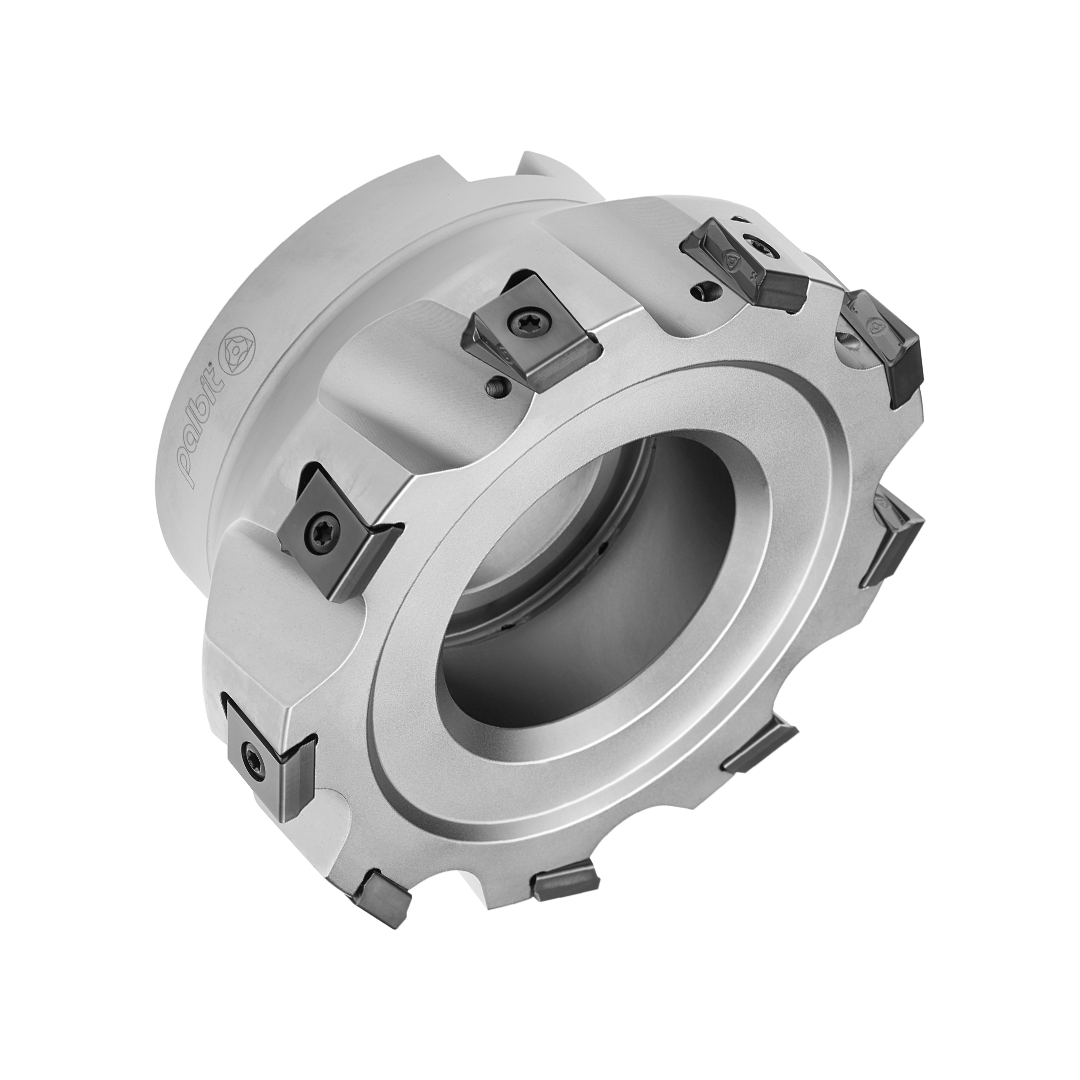

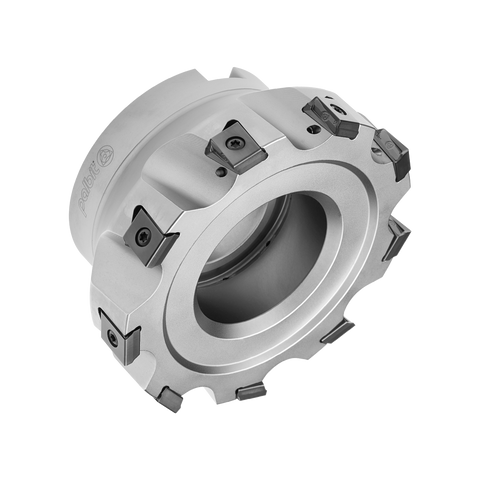

Palbit Arbor Mounting Holder - For LN1506 Inserts - 160mm Cutter Diameter - 181051300
| Insert Size & Shape | LN1506 |
| Depth of Cut Maximum (APMX) | 14 |
| Cutting Item Count (CICT) | 10 |
| Connection Diameter (DCONMS) | 40 |
| Adaptive Interface Machine Direction | Arbor Mounting |
| Contact Surface Machine Side (DCSFMS) | 110 |
Learn more about Klarna
Palbit Arbor Mounting Holder for LN1506 inserts is designed for high-performance turning and grooving, delivering exceptional stability and secure insert retention to achieve precise machining results and extended tool life.
- For LN1506 Inserts: Specifically designed to hold LN1506 inserts for reliable, secure fit and consistent performance.
- 160 mm Cutter Diameter: Optimized to accommodate a 160 mm cutter diameter for wide-ranging machining needs.
- Designed for Turning and Grooving: Built to excel in demanding turning and grooving operations with tight tolerances.
- Stability and Insert Retention: Provides exceptional stability and secure retention of inserts during high‑speed CNC cycles.
- Precision and Tool Life: Delivers precise machining results and extends tool life for longer service intervals.
These features combine to deliver dependable, repeatable performance in challenging CNC environments, helping engineers and machinists maintain tight tolerances while sustaining high productivity.
| Insert Size & Shape | LN1506 |
| Depth of Cut Maximum (APMX) | 14 |
| Cutting Item Count (CICT) | 10 |
| Connection Diameter (DCONMS) | 40 |
| Adaptive Interface Machine Direction | Arbor Mounting |
| Contact Surface Machine Side (DCSFMS) | 110 |
| Tool Cutting Edge Angle (KAPR) | 90 |
| Cutting Diameter (DC) | 160 |
| Torque (TQ) | 3 |
| Functional Length (LF) | 63 |
| Axial Rake Angel (GAMP) | -5 |
| Rdial Rake Angle (GAMF) | -13 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: TGPLUS 90390 - Arbor Mounting
View full collection →You are viewing PAL-181051300. Click any other SKU to view its full details.
| Product SKU | Insert Size and Shape | Application | Adaptive Machine Direction | Cutting Diameter (DC) | Functional Length (LF) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| PAL-181066500 | LN1506 | Shouldering Cutters | Arbor Mounting | 80 | 50 | £444.98 | 5 days | |
| PAL-181052000 | LN1506 | Shouldering Cutters | Arbor Mounting | 80 | 50 | £457.53 | 5 days | |
| PAL-181066400 | LN1506 | Shouldering Cutters | Arbor Mounting | 63 | 40 | £332.56 | 5 days | |
| PAL-181051000 | LN1506 | Shouldering Cutters | Arbor Mounting | 63 | 40 | £374.48 | 5 days | |
| PAL-181066800 | LN1506 | Shouldering Cutters | Arbor Mounting | 160 | 63 | £1,217.54 | 5 days | |
| PAL-181069200 | LN1506 | Shouldering Cutters | Arbor Mounting | 50 | 40 | £312.08 | 5 days | |
| PAL-181051300 Viewing | LN1506 | Shouldering Cutters | Arbor Mounting | 160 | 63 | £748.38 | 5 days | |
| PAL-181066700 | LN1506 | Shouldering Cutters | Arbor Mounting | 125 | 63 | £664.77 | 5 days | |
| PAL-181051200 | LN1506 | Shouldering Cutters | Arbor Mounting | 125 | 63 | £968.00 | 5 days | |
| PAL-181066600 | LN1506 | Shouldering Cutters | Arbor Mounting | 100 | 50 | £540.39 | 5 days | |
| PAL-181051100 | LN1506 | Shouldering Cutters | Arbor Mounting | 100 | 50 | £664.77 | 5 days |
