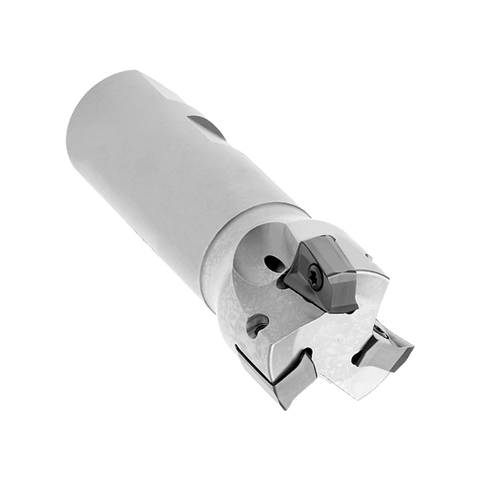

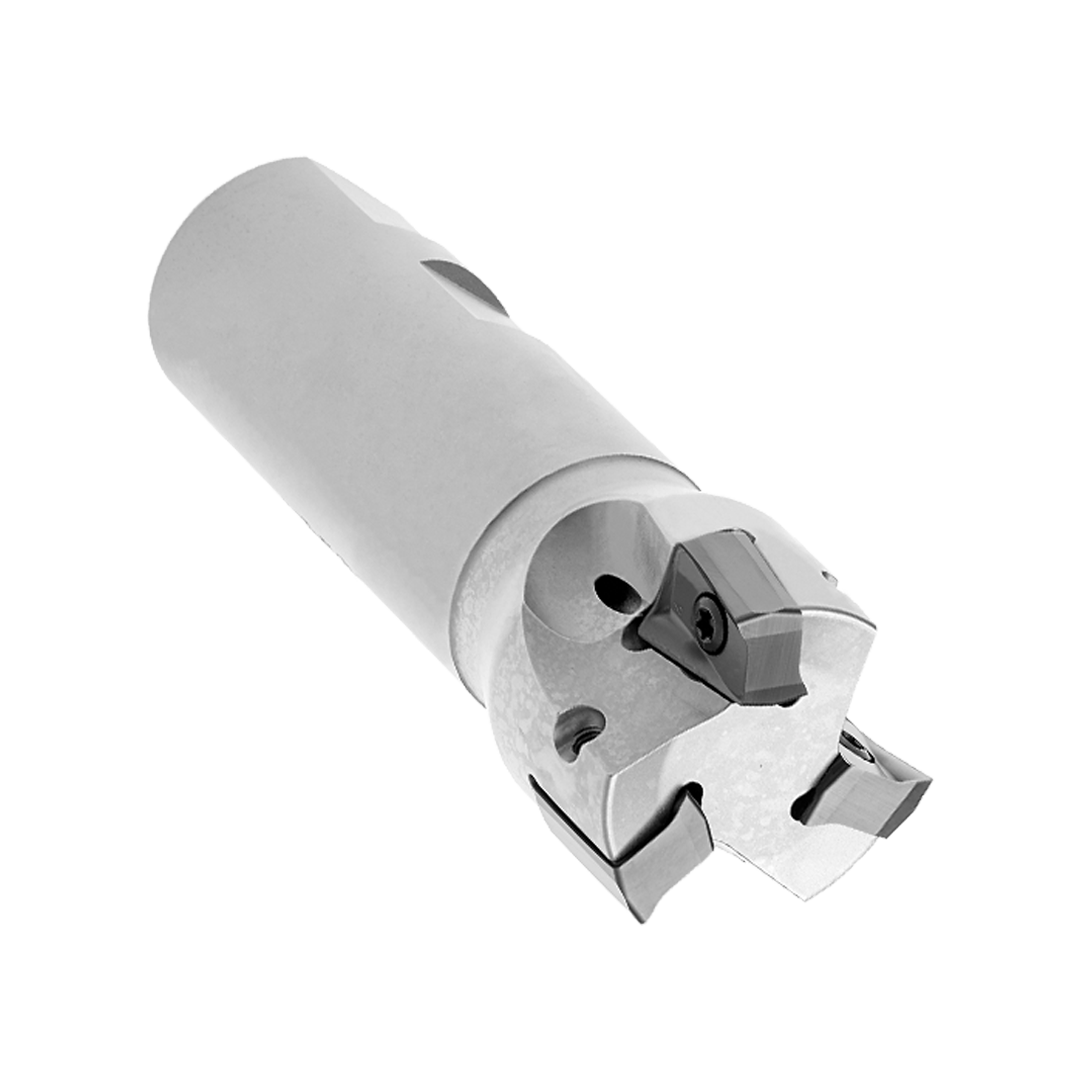

Palbit Weldon Shank Holder - For AN1607 Inserts - 32mm Cutter Diameter - 181051600
Palbit Vendor Logo

Palbit Weldon Shank Holder - For AN1607 Inserts - 32mm Cutter Diameter - 181051600

PAL-181051600

Availability: 5 days Estimated lead time, subject to availability

Designed for heavy-duty grooving and parting, Palbit Weldon Shank Holders for AN1607 inserts provide exceptional rigidity and secure insert retention. These holders ensure precise cutting perfor... Read more

View Other Sizes Suitable Inserts Suitable Spare Parts
Specification Value
Insert Size & Shape AN1607
Depth of Cut Maximum (APMX) 15
Cutting Item Count (CICT) 2
Connection Diameter (DCONMS) 32
Adaptive Interface Machine Direction Weldon Shank
Contact Surface Machine Side (DCSFMS) 32
Tool Cutting Edge Angle (KAPR) 90
Cutting Diameter (DC) 32
Torque (TQ) 3
Functional Length (LF) 110
Axial Rake Angel (GAMP) -4
Rdial Rake Angle (GAMF) -23

Need Assistance?

Speak to our Expert Team

Call Sales

01732 887334

Mon - Fri | 9am - 5pm

Email Us

info@protool-ltd.co.uk

Our team is ready to assist

Designed for heavy-duty grooving and parting, Palbit Weldon Shank Holders for AN1607 inserts provide exceptional rigidity and secure insert retention. These holders ensure precise cutting performance, efficient chip evacuation, and extended tool life, making them ideal for demanding CNC machining tasks. Trusted by engineers and machinists for consistent accuracy and reliable results in tough production environments.
