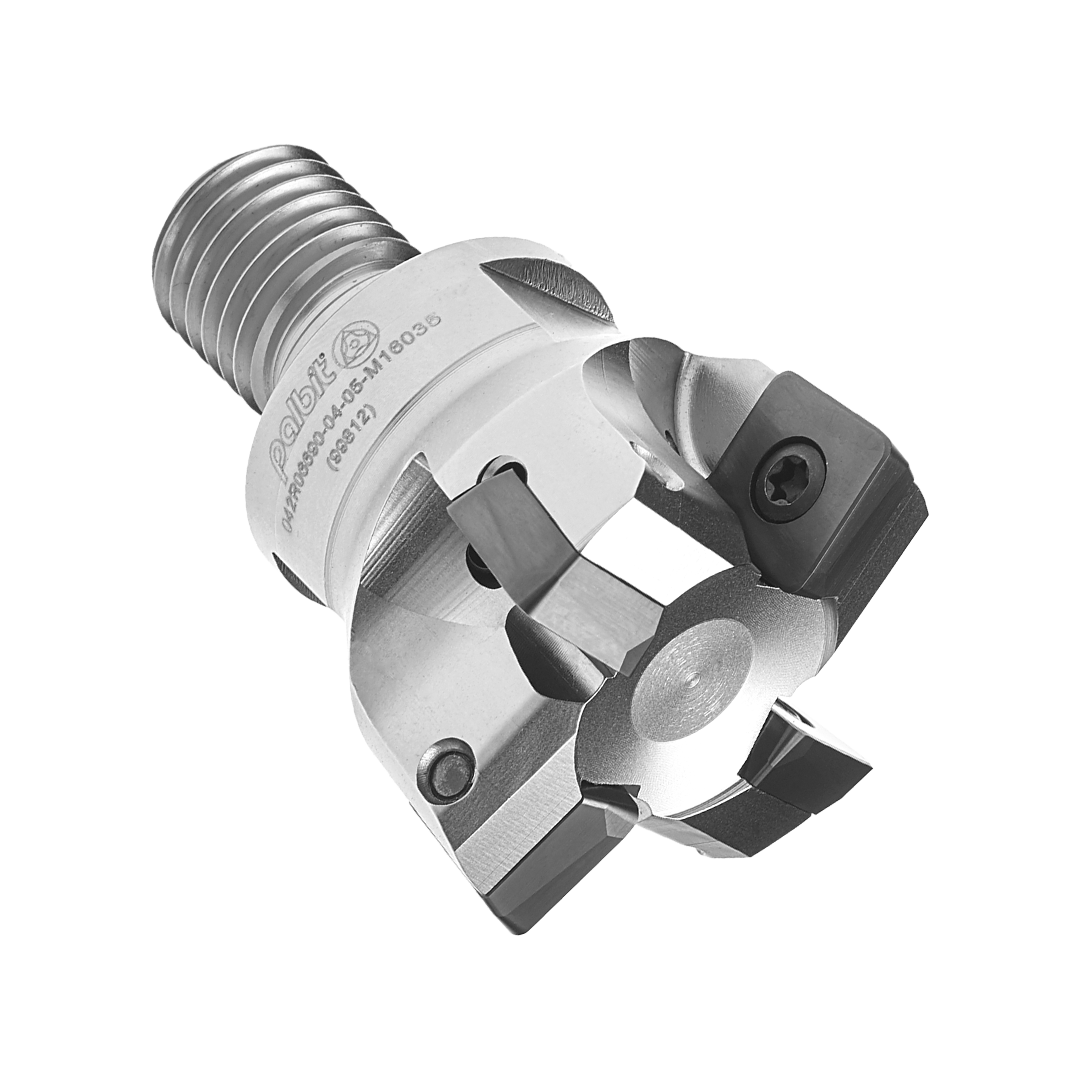

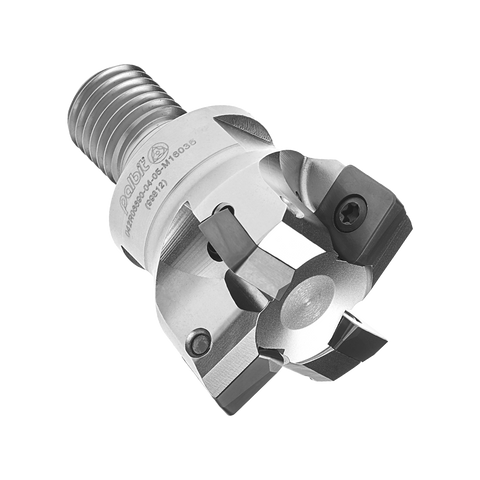

Palbit Threaded Coupling Holder - For XN06T3 Inserts - 35mm Cutter Diameter - 181064600
| Insert Size & Shape | XN06T3 |
| Depth of Cut Maximum (APMX) | 1.5 |
| Cutting Item Count (CICT) | 4 |
| Adaptive Interface Machine Direction | Threaded Coupling |
| Contact Surface Machine Side (DCSFMS) | 29 |
| Tool Cutting Edge Angle (KAPR) | 90 |
Learn more about Klarna
Palbit Threaded Coupling Holder for XN06T3 inserts is a precision tooling solution designed for micro internal threading, delivering secure clamping and exceptional rigidity to maintain tight tolerances in demanding CNC tasks.
- Compatibility: Specifically designed for Palbit XN06T3 inserts to ensure an optimal, reliable fit.
- Cutter Diameter: 35 mm cutter diameter calibrated for precision micro-threading applications.
- Secure Clamping: Robust clamping mechanism minimizes tool deflection during cuts for consistent results.
- Rigid Construction: Sturdy design resists vibration and chatter, supporting stable, high-accuracy threading.
- Precision Thread Profiles: Engineered to produce accurate internal thread forms with tight tolerances.
- Vibration Reduction: Built to dampen vibrations, improving surface finish and tooling life.
- Durability & Longevity: Designed for long tool life in demanding micro-threading environments.
Designed for CNC engineers and machinists, this holder enables reliable, repeatable threading quality in precision machining environments. Its combination of secure clamping, rigidity, and vibration control helps reduce cycle times and scrap while extending tool life, ensuring consistent thread profiles across challenging micro-threading tasks with tight tolerances.
| Insert Size & Shape | XN06T3 |
| Depth of Cut Maximum (APMX) | 1.5 |
| Cutting Item Count (CICT) | 4 |
| Adaptive Interface Machine Direction | Threaded Coupling |
| Contact Surface Machine Side (DCSFMS) | 29 |
| Tool Cutting Edge Angle (KAPR) | 90 |
| Cutting Diameter (DC) | 35 |
| Torque (TQ) | 3 |
| Functional Length (LF) | 35 |
| Axial Rake Angel (GAMP) | 5 |
| Rdial Rake Angle (GAMF) | -5 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: HIFEED 06690 - Threaded Coupling
View full collection →You are viewing PAL-181064600. Click any other SKU to view its full details.
| Product SKU | Insert Size and Shape | Application | Adaptive Machine Direction | Cutting Diameter (DC) | Functional Length (LF) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| PAL-181038800 | XN06T3 | HI Feed | Threaded Coupling | 42 | 35 | £173.86 | 5 days | |
| PAL-181064600 Viewing | XN06T3 | HI Feed | Threaded Coupling | 35 | 35 | £152.64 | 5 days | |
| PAL-181038700 | XN06T3 | HI Feed | Threaded Coupling | 32 | 35 | £152.64 | 5 days |
