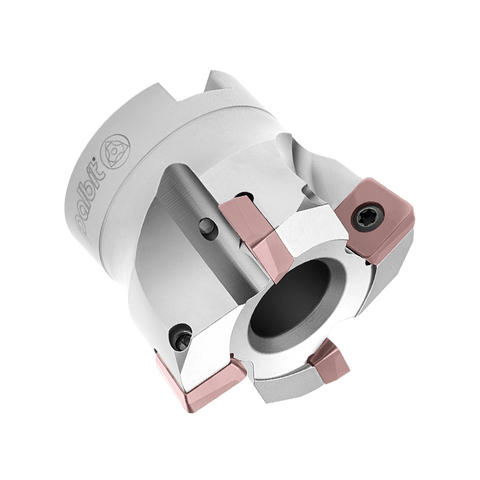

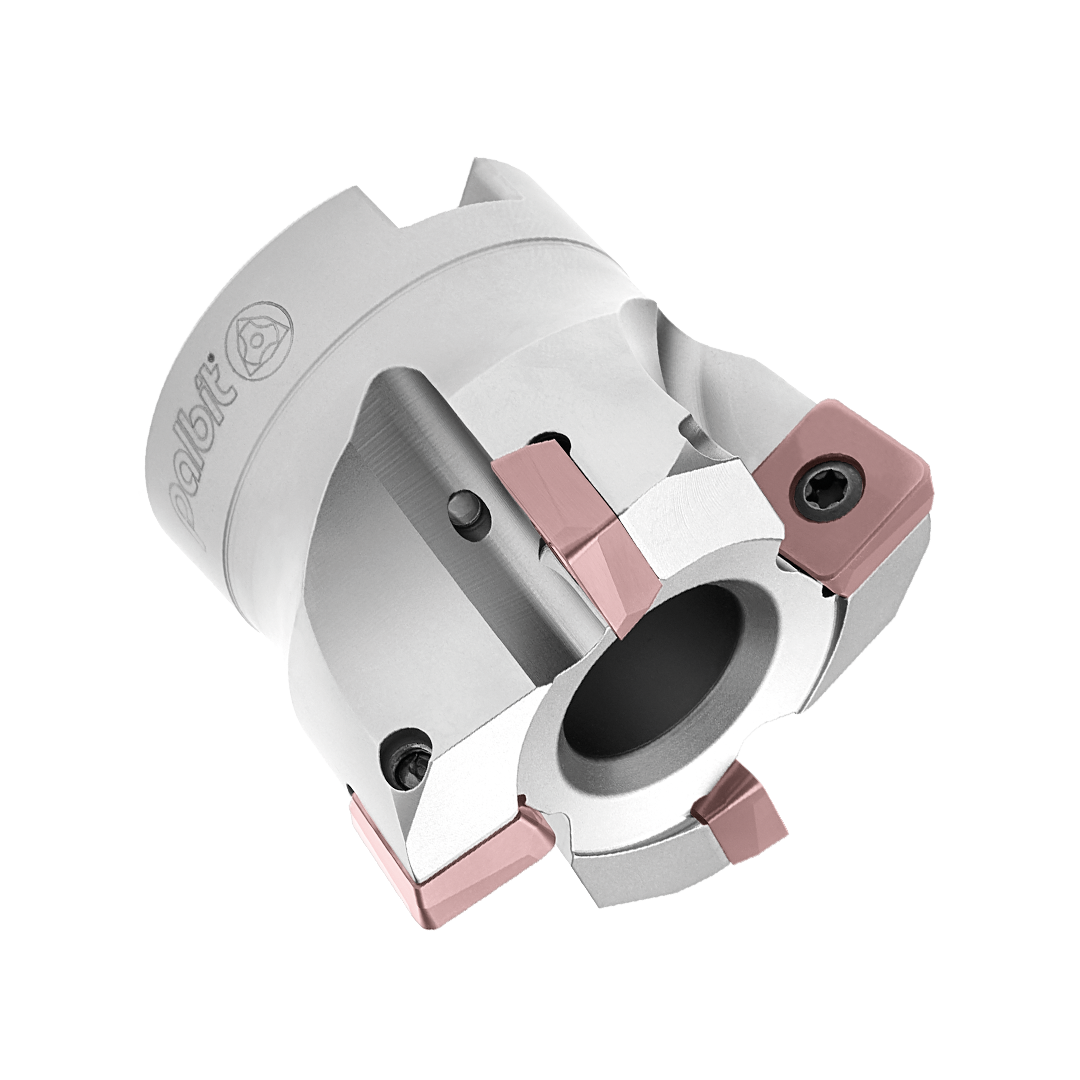

Palbit Arbor Mounting Holder - For XN06T3 Inserts - 50mm Cutter Diameter - 181069100

Palbit Arbor Mounting Holder - For XN06T3 Inserts - 50mm Cutter Diameter - 181069100

SKU:PAL-181069100
Designed for precision grooving and parting, the Palbit Arbor Mounting Holder for XN06T3 inserts delivers secure clamping and high rigidity to CNC machinists tackling fine-detail work. With a 50 m... Read more ↓
Specification
Insert Size & ShapeXN06T3
Depth of Cut Maximum (APMX)1.5
Cutting Item Count (CICT)4
Connection Diameter (DCONMS)22
Adaptive Interface Machine DirectionArbor Mounting
Contact Surface Machine Side (DCSFMS)70
View all specifications ↓
£209.11
Prices shown ex. VAT
5 days estimated lead time — subject to availability
View Other Sizes →
Suitable InsertsSuitable Spare Parts
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Klarna
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Speak to our team
01732 887334
Mon – Thurs 8:30 – 17:30 · Fri 8:30 – 16:30

Designed for precision grooving and parting, the Palbit Arbor Mounting Holder for XN06T3 inserts delivers secure clamping and high rigidity to CNC machinists tackling fine-detail work. With a 50 mm cutter diameter, this holder supports accurate cutting performance and long tool life in demanding production environments.

  • Inserts Compatibility: Specifically engineered to seat XN06T3 inserts for reliable alignment and repeatable results.
  • Diameter: 50 mm cutter diameter to suit a range of small- to mid-scale grooving and parting tasks.
  • Secure Clamping: Robust locking mechanism minimizes movement and runout during heavy cuts.
  • Rigidity: Precision-made housing minimizes deflection for clean, precise cuts.
  • Tool Life & Performance: Optimized design supports long tool life and consistent performance across production runs.
  • Application: Ideal for CNC engineers and machinists performing fine-detail grooving and parting in challenging environments.

This holder translates secure seating and rigidity into dependable results, helping operators achieve tight tolerances and superior surface finishes while reducing rework and downtime in demanding manufacturing settings.

Insert Size & Shape XN06T3
Depth of Cut Maximum (APMX) 1.5
Cutting Item Count (CICT) 4
Connection Diameter (DCONMS) 22
Adaptive Interface Machine Direction Arbor Mounting
Contact Surface Machine Side (DCSFMS) 70
Tool Cutting Edge Angle (KAPR) 90
Cutting Diameter (DC) 50
Torque (TQ) 3
Functional Length (LF) 45
Axial Rake Angel (GAMP) 5
Rdial Rake Angle (GAMF) -5

What time are Protool open?

We are open Monday to Friday between 8:30am and 5pm.

Do you offer Free Next Day delivery?

Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.

We also offer the following:

  • Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
  • DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
  • Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
  • DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.

For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.

*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.

★★★★★
Nice experience staff are very helpful and interested...
Staff are very helpful and interested in providing a good service making us the customer feel valued.
Bill
★★★★★
first place we look
honest about stock and prices are competitive.
Phil
★★★★★
Polite and helpful
Staff are very helpful and polite.Goods that were in stock were dispatched same day and back orders were quick in coming through .
Graham
★★★★★
Buying experience
Phone requests are handled quickly and without any fuss. The website is easy to use and straightforward to order from. It’s especially helpful that it shows real‑time availability, so we don’t need to call to confirm whether parts will arrive.
Jeremy

Full Range: HIFEED 06690 - Arbor Mounting

View full collection →

You are viewing PAL-181069100. Click any other SKU to view its full details.

Product SKUInsert Size and ShapeApplicationAdaptive Machine DirectionCutting Diameter (DC)Functional Length (LF)PriceStock Order
PAL-181030000 XN06T3HI FeedArbor Mounting8050£274.07 5 days
PAL-181029900 XN06T3HI FeedArbor Mounting6650£221.47 5 days
PAL-181033500 XN06T3HI FeedArbor Mounting6350£221.47 5 days
PAL-181029800 XN06T3HI FeedArbor Mounting5245£209.11 5 days
PAL-181111100 XN06T3HI FeedArbor Mounting5045£216.86 5 days
PAL-181069100 ViewingXN06T3HI FeedArbor Mounting5045£209.11 5 days
PAL-181113100 XN06T3HI FeedArbor Mounting10050£338.29 5 days
