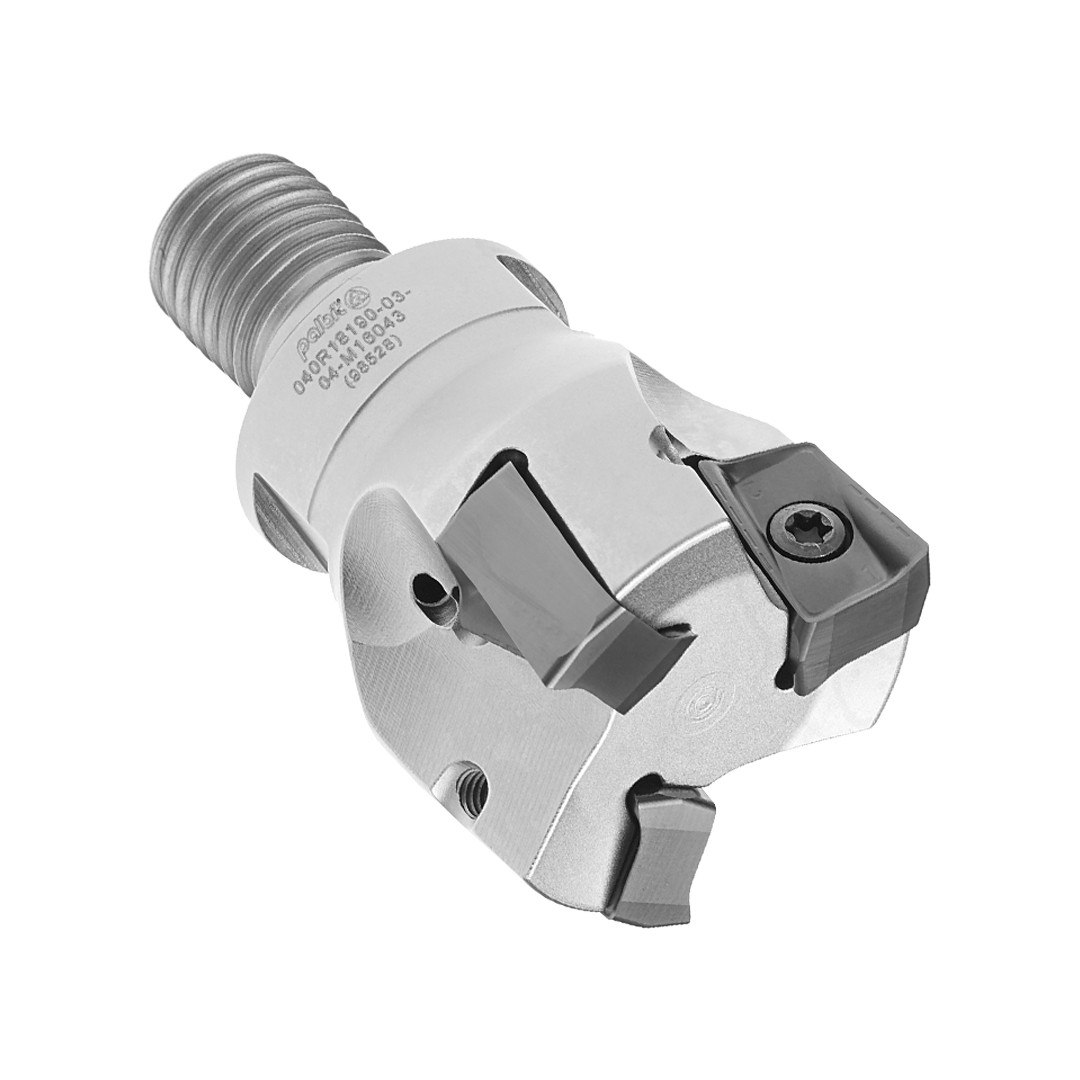

Palbit Threaded Coupling Holder - For AN1607 Inserts - 32mm Cutter Diameter - 181082800
| Insert Size & Shape | AN1607 |
| Depth of Cut Maximum (APMX) | 15 |
| Cutting Item Count (CICT) | 2 |
| Adaptive Interface Machine Direction | Threaded Coupling |
| Contact Surface Machine Side (DCSFMS) | 29 |
| Tool Cutting Edge Angle (KAPR) | 90 |
Learn more about Klarna
Palbit Threaded Coupling Holder is a precision tool holder designed for AN1607 inserts, delivering secure clamp and rigid support for internal threading on CNC machines. It’s built for engineers and machinists who demand repeatable thread forms, tight tolerances, and long tool life in demanding production environments.
- Part Number: 181082800
- Compatibility: Designed specifically for AN1607 inserts to ensure reliable seating and consistent performance.
- Threaded Coupling Design: Secure clamp with minimal runout to maintain accurate thread profiles.
- Cutter Diameter: 32 mm diameter optimized for balanced rigidity and chip load in mid-range threading tasks.
- Clamping Reliability: Robust insert-clamping mechanism minimizes movement during cutting.
- Rigidity: Engineered to resist vibration and deflection for stable, precise finishes.
- Chip Control: Effective chip evacuation and management to sustain smooth cutting conditions.
By securing the insert firmly and maintaining precise alignment, this holder delivers accurate thread cutting, clean surface finishes, and consistent tool performance across demanding threading operations. The durable design supports longer tool life and reduces downtime in high-volume CNC environments, making it a reliable choice for shops standardizing on Palbit threading solutions with AN1607 inserts.
| Insert Size & Shape | AN1607 |
| Depth of Cut Maximum (APMX) | 15 |
| Cutting Item Count (CICT) | 2 |
| Adaptive Interface Machine Direction | Threaded Coupling |
| Contact Surface Machine Side (DCSFMS) | 29 |
| Tool Cutting Edge Angle (KAPR) | 90 |
| Cutting Diameter (DC) | 32 |
| Torque (TQ) | 3 |
| Functional Length (LF) | 43 |
| Axial Rake Angel (GAMP) | -4 |
| Rdial Rake Angle (GAMF) | -23 |
