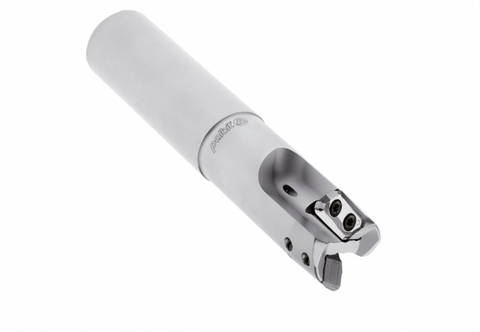

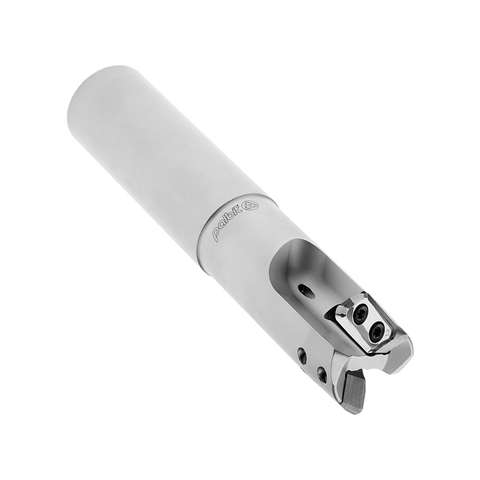

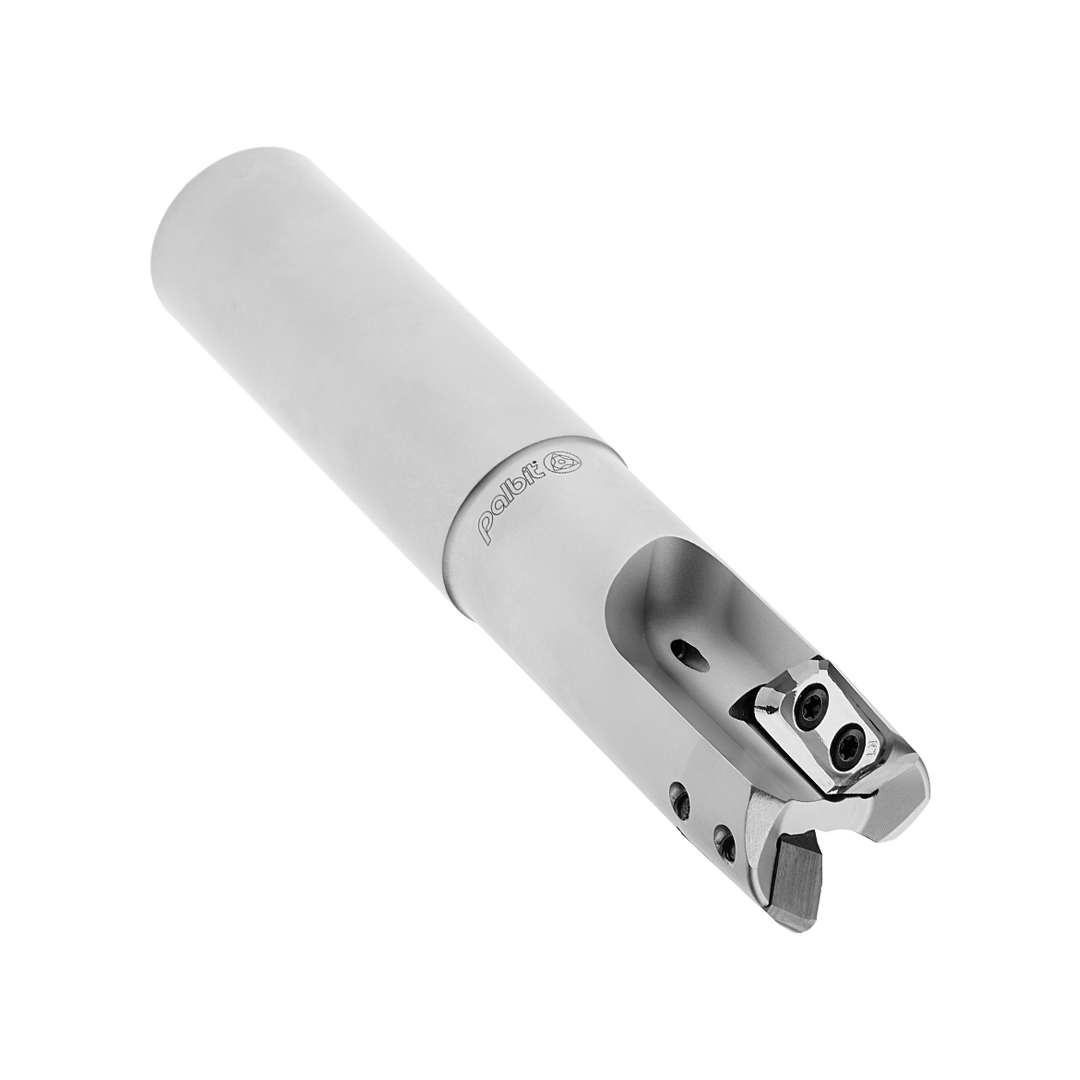

Palbit Cylindrical Shank Holder - For XD22M7 Inserts - 40mm Cutter Diameter - 181094100
| Insert Size & Shape | XD22M7 |
| Depth of Cut Maximum (APMX) | 21 |
| Cutting Item Count (CICT) | 2 |
| Connection Diameter (DCONMS) | 40 |
| Adaptive Interface Machine Direction | Cylindrical Shank |
| Contact Surface Machine Side (DCSFMS) | 40 |
Learn more about Klarna
The Palbit Cylindrical Shank Holder is a precision toolholder engineered for external threading with XD22M7 inserts, delivering stability and accuracy in demanding CNC environments.
- Compatibility: Specifically designed to accompany XD22M7 inserts for optimal fit and performance.
- Diameter: 40 mm cutter diameter, enabling consistent cutting geometry.
- Construction: Robust cylindrical shank profile provides rigidity and long tool life in tough machining conditions.
- Tool Retention: Reliable insert retention minimizes runout and tool changes during high-demand operations.
- Application Focus: Optimized for external threading applications where precision and repeatability matter.
Trusted by CNC engineers and machinists, Palbit holders support consistent performance across high-demand operations, helping you achieve precise thread profiles, reduced downtime, and extended tooling life.
| Insert Size & Shape | XD22M7 |
| Depth of Cut Maximum (APMX) | 21 |
| Cutting Item Count (CICT) | 2 |
| Connection Diameter (DCONMS) | 40 |
| Adaptive Interface Machine Direction | Cylindrical Shank |
| Contact Surface Machine Side (DCSFMS) | 40 |
| Tool Cutting Edge Angle (KAPR) | 90 |
| Cutting Diameter (DC) | 40 |
| Torque (TQ) | 3 |
| Functional Length (LF) | 70 |
| Usable Length (LU) | 80 |
| Axial Rake Angel (GAMP) | 6 |
| Rdial Rake Angle (GAMF) | -10 |
