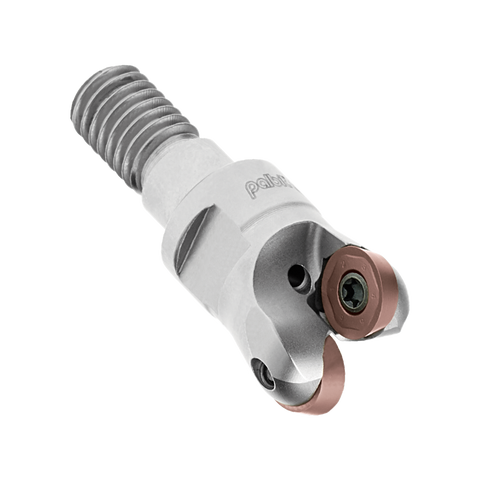

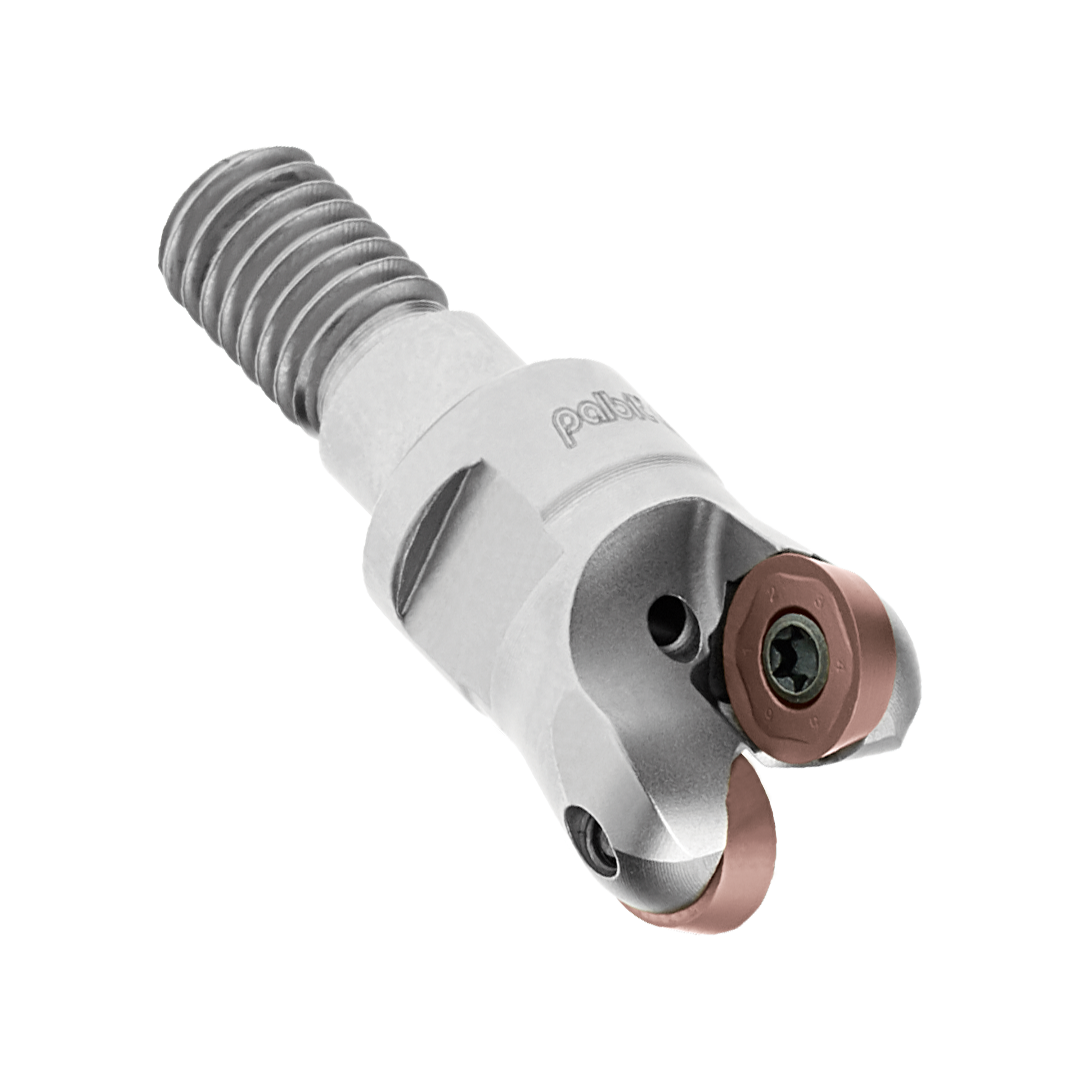

Palbit Threaded Coupling Holder - For RD0802 Inserts - 8mm Cutter Diameter - 181098600
| Insert Size & Shape | RD0802 |
| Depth of Cut Maximum (APMX) | 4 |
| Cutting Item Count (CICT) | 2 |
| Adaptive Interface Machine Direction | Threaded Coupling |
| Contact Surface Machine Side (DCSFMS) | 13 |
| Tool Cutting Edge Angle (KAPR) | 90 |
Learn more about Klarna
Engineered for precision CNC threading, the Palbit Threaded Coupling Holder ensures secure RD0802 insert retention with exceptional rigidity. It’s built for engineers and machinists who demand consistent, high-accuracy internal thread cutting in demanding environments.
- Designed for RD0802 inserts: Threaded coupling interface provides reliable seating and repeatable performance.
- 8 mm cutter diameter: Optimized for compact internal threading applications with tight tolerances.
- Secure insert retention: Precision clamping minimizes movement during heavy cuts for consistent thread profiles.
- High rigidity construction: Robust body reduces deflection to preserve accuracy under load.
- Efficient chip evacuation: Geometric design supports effective chip removal, reducing heat and wear.
- Extended tool life: Durable design helps lower downtime and maximize production runs.
By combining secure retention with rigid construction, this holder delivers consistent thread geometry, improved surface finish, and fewer rework cycles. Efficient chip evacuation minimizes heat buildup and downtime, helping RD0802 inserts last longer and production keep moving. For professionals tackling demanding threading tasks, the Palbit threaded coupling holder offers reliable, repeatable results time after time.
| Insert Size & Shape | RD0802 |
| Depth of Cut Maximum (APMX) | 4 |
| Cutting Item Count (CICT) | 2 |
| Adaptive Interface Machine Direction | Threaded Coupling |
| Contact Surface Machine Side (DCSFMS) | 13 |
| Tool Cutting Edge Angle (KAPR) | 90 |
| Cutting Diameter (DC) | 8 |
| Torque (TQ) | 1.2 |
| Maximum Cutting Diameter (DCX) | 16 |
| Functional Length (LF) | 20 |
| Axial Rake Angel (GAMP) | 4 |
| Rdial Rake Angle (GAMF) | -3 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: TOROMILL 33590 - Threaded Coupling
View full collection →You are viewing PAL-181098600. Click any other SKU to view its full details.
| Product SKU | Insert Size and Shape | Application | Adaptive Machine Direction | Cutting Diameter (DC) | Functional Length (LF) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| PAL-181098600 Viewing | RD0802 | Profile Cutters | Threaded Coupling | 8 | 20 | £139.35 | 5 days | |
| PAL-181122900 | RD0802 | Profile Cutters | Threaded Coupling | 17 | 30 | £193.61 | 5 days | |
| PAL-181122800 | RD0802 | Profile Cutters | Threaded Coupling | 12 | 25 | £172.73 | 5 days |
